Manufacturer Standard Lead Time:
13 Weeks
Style:
Board to Board or Cable
Detailed Description:

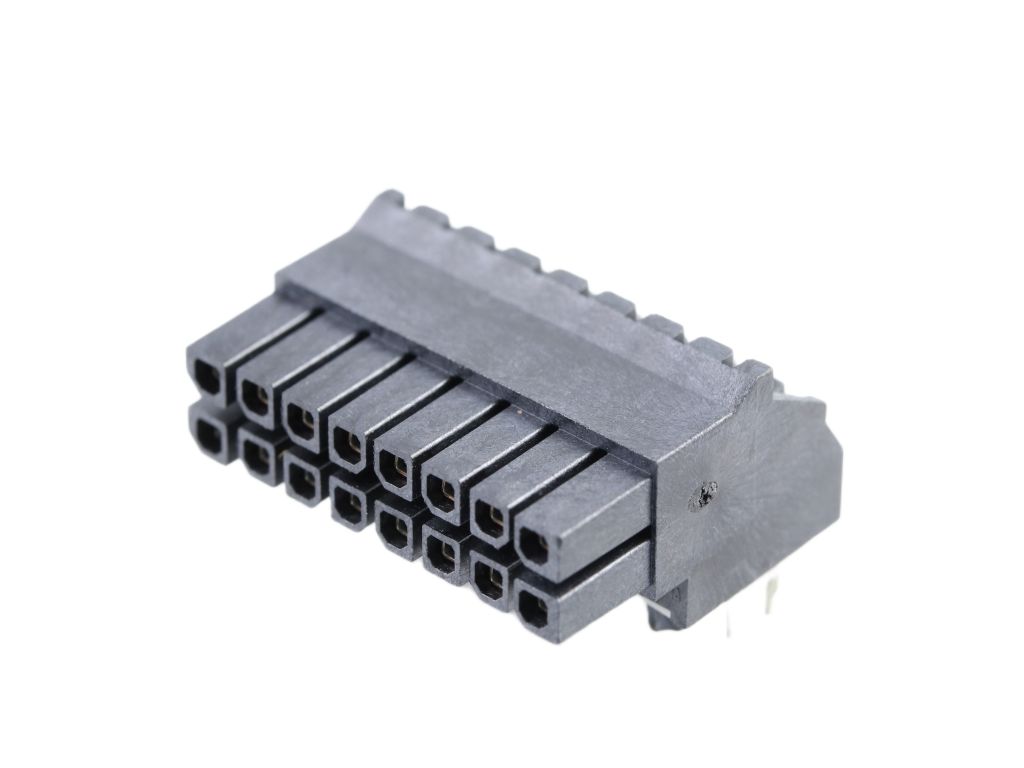

16 Position Receptacle Connector 0.118" (3.00mm) Through Hole, Right Angle Tin
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
40.0µin (1.02µm)
Number of Positions:
16
Contact Finish - Mating:
Tin
Insulation Height:
0.402" (10.20mm)
Insulation Color:
Black
Contact Length - Post:
0.155" (3.94mm)
Applications:
General Purpose, Telecommunications
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Manufacturer:
Molex
Voltage Rating:
600VAC
Row Spacing - Mating:
0.118" (3.00mm)
Connector Type:
Receptacle
Number of Positions Loaded:
All
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
5A
Pitch - Mating:
0.118" (3.00mm)
Features:
Board Guide
Mounting Type:
Through Hole, Right Angle
Series:
Micro-Fit 3.0 BMI 44764
Packaging:
Tray
Contact Finish Thickness - Mating:
40.0µin (1.02µm)
Contact Type:
Female Socket
Contact Finish - Post:
Tin
Insulation Material:
Liquid Crystal Polymer (LCP), Glass Filled
Contact Material:
Phosphor Bronze
Connector System:
Power
Number of Contacts:
16
Orientation:
Right Angle
Series:
44764
Sub Type:
PCB Receptacle
Contact Material:
Phosphor Bronze
Current:
8.5A
Number of Rows:
2
Standards/Approvals:
REACH SVHC
Voltage:
600V
Contact Plating:
Gold
Pitch:
3mm
Termination Type:
Through Hole
Product Type:
Receptacle
Maximum Operating Temperature:
105°C
Minimum Operating Temperature:
-40°C
Mount Type:
Through Hole
