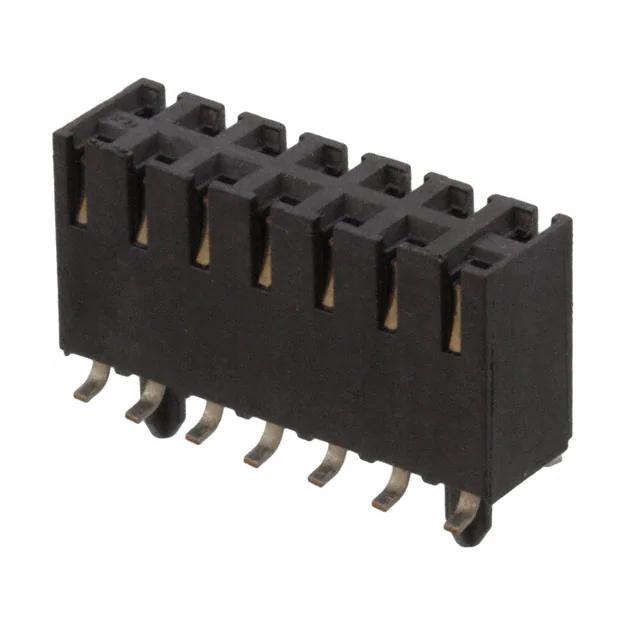

Molex, LLC 0015453514

0015453514 Molex, LLC
Molex, LLC

Product Information

Manufacturer Standard Lead Time:
9 Weeks
Style:
Board to Board or Cable
Current Rating:
2.5A
Detailed Description:
14 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Gold
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
74.8µin (1.90µm)
Number of Positions:
14
Contact Finish - Mating:
Gold
Insulation Height:
0.368" (9.35mm)
Insulation Color:
Black
Applications:
Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows:
2
Standard Package:
816
Contact Shape:
Square
Manufacturer:
Molex, LLC
Voltage Rating:
250VAC
Material Flammability Rating:
UL94 V-0
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
15.0µin (0.38µm)
Fastening Type:
Push-Pull
Termination:
Solder
Pitch - Mating:
0.100" (2.54mm)
Features:
Board Guide
Mounting Type:
Surface Mount
Series:
C-Grid® 71395
Packaging:
Tray
Contact Type:
Female Socket
Contact Finish - Post:
Tin
Other Names:
001545-3514 01545-3514 15-45-3514 1545-3514 15453514 A713950114 WM7194
Insulation Material:
Liquid Crystal Polymer (LCP), Glass Filled
Contact Material:
Phosphor Bronze
RoHs Compliant
Checking for live stock

This is manufactured by Molex, LLC. The manufacturer part number is 0015453514. It has typical 9 weeks of manufacturer standard lead time. Additionally, the product is designed with board to board or cable Style. The product has a current rating of 2.5a. It features 14 position receptacle connector 0.100" (2.54mm) surface mount gold. The product has -40°c ~ 105°c operating temperature range. Additionally, it features 74.8µin (1.90µm) of post thickness. The product carries possible position value of 14. It has nice contact finishing of gold. 0.368" (9.35mm) of insulation height. In addition, black is the insulation color of the product. The product is widely employed in automotive, general purpose, lighting, medical, telecommunications. It comes in 2 of rows. It is available in the standard package of 816. It has a typical square shape. The molex, llc's product offers user-desired applications. Moreover, the product has a nominal 250vac voltage rating. It carries ul94 v-0 of material flammability rating. It carries 0.100" (2.54mm) of row spacing. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 15.0µin (0.38µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in surface mount configuration. The product c-grid® 71395, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has typical contact type of female socket. It has possible tin contact post finishing. Alternative Names include 001545-3514 01545-3514 15-45-3514 1545-3514 15453514 a713950114 wm7194. It has a robust liquid crystal polymer (lcp), glass filled insulation material. The product is made from sturdy phosphor bronze materials.

pdf icon
15453514 Drawing(Datasheets)
pdf icon
15-45-3514.pdf(3D Drawings)
pdf icon
0015453514 Cert of Compliance(Environmental Information)
