Molex, LLC 0038001340

0038001340 Molex, LLC
Molex, LLC

Product Information

Manufacturer Standard Lead Time:
14 Weeks
Style:
Board to Board or Cable
Current Rating:
4A
Detailed Description:

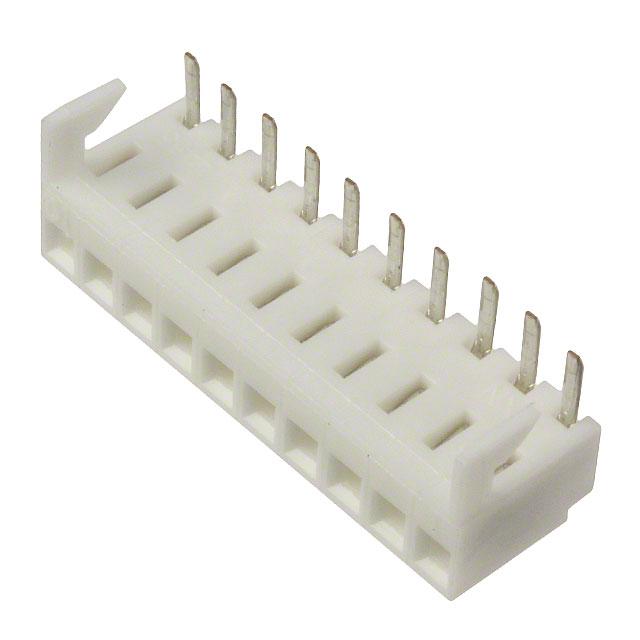

10 Position Receptacle Connector 0.100" (2.54mm) Board Edge, Through Hole, Right Angle Tin
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
10
Contact Finish - Mating:
Tin
Insulation Height:
0.185" (4.70mm)
Insulation Color:
White
Contact Length - Post:
0.132" (3.35mm)
Applications:
Automotive, General Purpose, Medical, Telecommunications
Number of Rows:
1
Standard Package:
1,944
Contact Shape:
Square
Manufacturer:
Molex, LLC
Voltage Rating:
250VAC
Material Flammability Rating:
UL94 V-0
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
100.0µin (2.54µm)
Fastening Type:
Push-Pull
Termination:
Solder
Pitch - Mating:
0.100" (2.54mm)
Features:
Board Hooks
Mounting Type:
Board Edge, Through Hole, Right Angle
Series:
KK® 4455
Packaging:
Tray
Contact Type:
Non-Gendered
Contact Finish - Post:
Tin
Other Names:
0038-00-1340 38-00-1340 38001340 A-4455-AZ10C(P909) WM2818
Insulation Material:
Polyamide (PA), Nylon
Contact Material:
Phosphor Bronze
RoHs Compliant
Checking for live stock

This is manufactured by Molex, LLC. The manufacturer part number is 0038001340. It has typical 14 weeks of manufacturer standard lead time. Additionally, the product is designed with board to board or cable Style. The product has a current rating of 4a. It features 10 position receptacle connector 0.100" (2.54mm) board edge, through hole, right angle tin. The product has -40°c ~ 105°c operating temperature range. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 10. It has nice contact finishing of tin. 0.185" (4.70mm) of insulation height. In addition, white is the insulation color of the product. 0.132" (3.35mm) is the given possible contact length (post) values. The product is widely employed in automotive, general purpose, medical, telecommunications. It comes in 1 of rows. It is available in the standard package of 1,944. It has a typical square shape. The molex, llc's product offers user-desired applications. Moreover, the product has a nominal 250vac voltage rating. It carries ul94 v-0 of material flammability rating. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 100.0µin (2.54µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include board hooks. The product is available in board edge, through hole, right angle configuration. The product kk® 4455, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has typical contact type of non-gendered. It has possible tin contact post finishing. Alternative Names include 0038-00-1340 38-00-1340 38001340 a-4455-az10c(p909) wm2818. It has a robust polyamide (pa), nylon insulation material. The product is made from sturdy phosphor bronze materials.

pdf icon
0038001340 Cert of Compliance(Environmental Information)
pdf icon
Multiple Devices Production Location 28/Feb/2017(PCN Assembly/Origin)
pdf icon
Resin Color 01/Jan/2002(PCN Obsolescence/ EOL)
pdf icon
0038001340(Datasheets)
pdf icon
10-07 Prod Spec(Datasheets)
pdf icon
38-00-1340.pdf(3D Drawings)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 0038001340 on website for other similar products.
We accept all major payment methods for all products including ET11730600. Please check your shopping cart at the time of order.
You can order Molex, LLC brand products with 0038001340 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Rectangular Connectors - Headers, Receptacles, Female Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex, LLC 0038001340. You can also check on our website or by contacting our customer support team for further order details on Molex, LLC 0038001340.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11730600 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex, LLC" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11730600.
Yes. We ship 0038001340 Internationally to many countries around the world.
