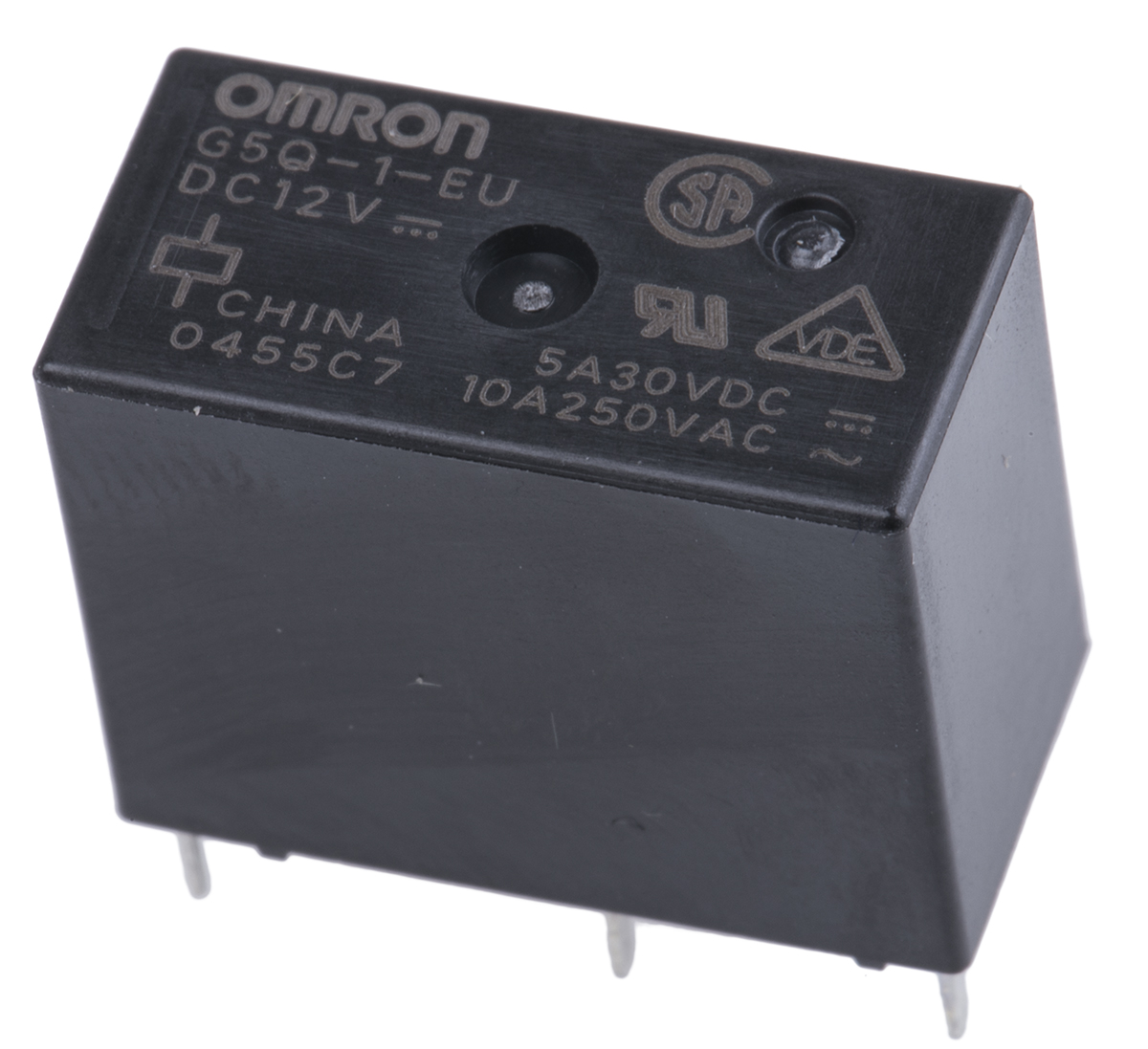

Omron PCB Mount Power Relay, 12V dc Coil, 10A Switching Current, SPDT

Enrgtech Part No: ET25273856
|
Manufacturer Part No:
G5Q-1-EU DC12 (TY)
|
Manufacturer: Omron

G5Q-1-EU-DC12--TY- Omron PCB Mount Power Relay, 12V dc Coil, 10A Switching Current, SPDT

Product Information

Coil Voltage:

12V dc

Application:

Power

Terminal Type:

Through Hole

Coil Resistance:

360Ω

Life:

10000000 (Electrical) cycles

Coil Power:

400mW

Maximum Switching Power DC:

150 W

Isolation Coil To Contact:

4kV ac

Maximum Operating Temperature:

+85°C

Switching Current:

10A

Latching:

Contact Configuration:

SPDT

Checking for live stock

The Omron G5Q-1-EU DC12 (TY) is a miniature, high-capacity PCB power relay designed to deliver exceptional switching performance within a compact footprint. Featuring a 12V DC coil and a 10A switching capacity, this SPDT (Single Pole Double Throw) relay is ideal for space-constrained applications such as HVAC systems and home appliances. Its high isolation and impulse withstand voltage provide a reliable safety barrier between the control circuit and heavy loads, ensuring long-term operational stability.

What Makes Our Product Stand Out?

The Omron G5Q-1-EU DC12 (TY) power relay offers superior electrical endurance and high-voltage protection, ensuring your electronic circuits remain safe and highly efficient. It combines a small physical profile with massive switching power to meet modern industrial demands.

High Isolation: Offers an 8-kV impulse withstand voltage between the coil and contacts.
Energy Efficient: Low power consumption design with UL Class F coil insulation.

Core Performance Features & Technical Specifications

Contact Configuration: SPDT (1 Form C).
Rated Coil Voltage: 12V DC.
Switching Current: 10 Amperes.
Max Switching Voltage: 277V AC / 30V DC.
Coil Resistance: 360 Ohms.
Power Consumption: Approximately 400 mW.
Mounting Type: Through-hole PCB mounting.
Service Life: 10,000,000 mechanical operations.
Operating Temperature: -40°C to +85°C.

G5Q Series Relays Data Sheet(Technical Reference)
