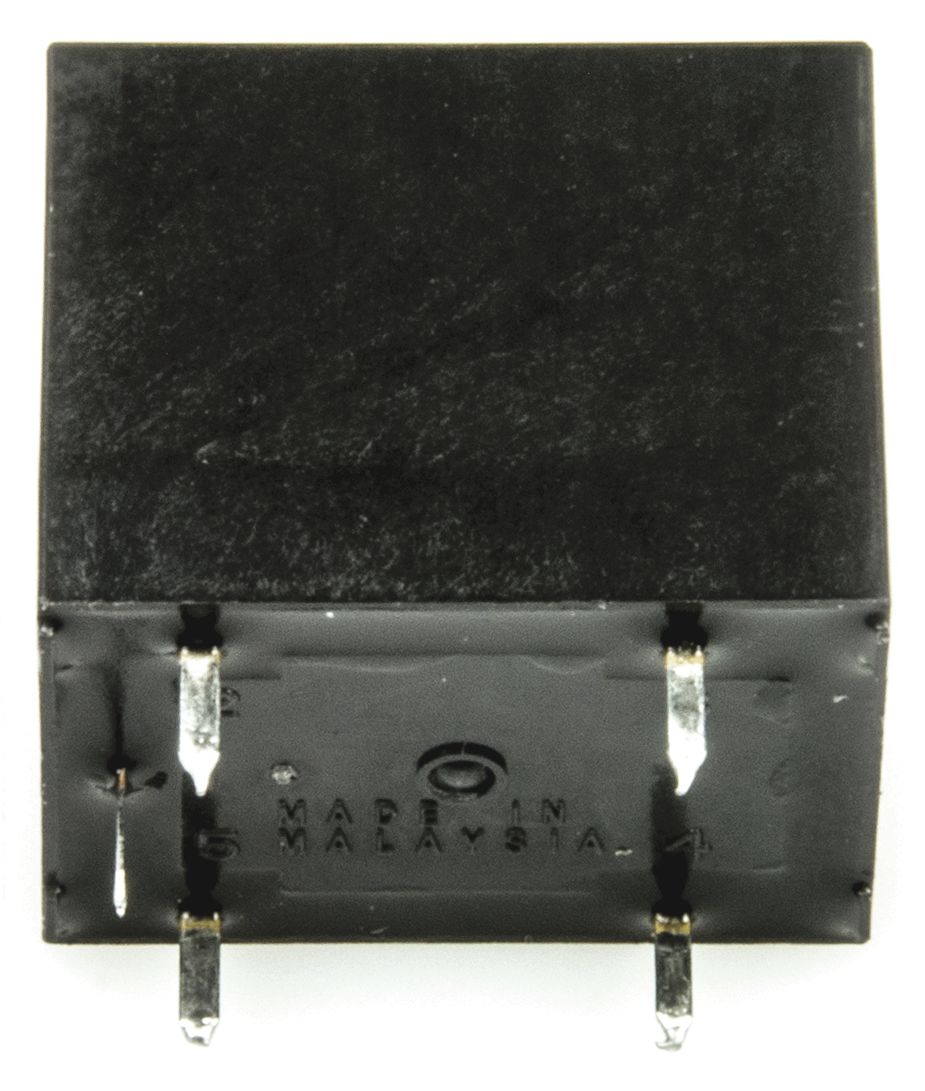

Omron PCB Mount Power Relay, 12V dc Coil, 10A Switching Current, SPDT

Enrgtech Part No: ET25273802
|
Manufacturer Part No:
G5LE-14 DC12
|
Manufacturer: Omron

G5LE-14-DC12 Omron PCB Mount Power Relay, 12V dc Coil, 10A Switching Current, SPDT

Product Information

Maximum Operating Temperature:

+85°C

Maximum Switching Power DC:

240 W

Mounting Type:

PCB Mount

Minimum Operating Temperature:

-25°C

Series:

G5LE

Latching:

Coil Voltage:

12V dc

Length:

22.5mm

Height:

19mm

Switching Current:

10A

Application:

Power

Depth:

16.5mm

Checking for live stock

The Omron G5LE-14 DC12 is a robust PCB-mounted power relay built for dependable circuit switching. It operates using a standard 12V DC coil for broad compatibility. This SPDT relay handles switching currents up to 10A efficiently. The silver alloy contacts ensure high conductivity and long-term durability. It features a compact footprint suitable for high-density circuit board layouts. This component is an ideal choice for domestic appliances and industrial control systems requiring reliable power management.

Main Reasons to Use This Product

The Omron G5LE-14 DC12 power relay provides high-capacity switching within a very small frame. Durable silver contacts ensure consistent performance over millions of operations.

PCB pin terminals allow for secure and easy board mounting.
Wide operating temperature range supports use in diverse environments.

Special Features & Technical Specifications

Contact Configuration: SPDT (1 Form C) arrangement.
Switching Capacity: 10A maximum switching current.
Coil Voltage: 12V DC nominal with 360Ω resistance.
Power Rating: Supports up to 1.2 kVA AC and 240W DC.
Material: Constructed with high-quality silver alloy contacts.
Dimensions: Small profile measuring 22.5mm x 16.5mm x 19mm.
Operating Limit: Maximum operating temperature of +85°C.

UL E41643(Technical Reference)

CSA LR34815-127(Technical Reference)

G5L(E) PCB Relay Data Sheet(Technical Reference)
