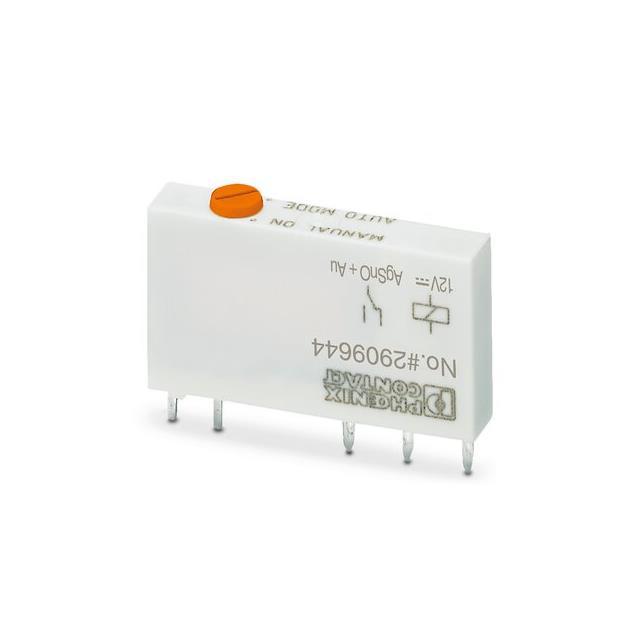

REL-MR- 12DC/21AU/MS
Product Information
Maximum Switching Voltage DC:
250V dc
Maximum Operating Temperature:
+85°C
Dimensions:
28 x 5 x16mm
Mounting Type:
PCB Mount
Series:
REL-MR- 12DC/21AU/MS
Latching:
No
Coil Voltage:
12V dc
Length:
16mm
Height:
28mm
Depth:
5mm
Maximum Switching Voltage AC:
250V
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
1.5 kVA
Contact Configuration:
SPDT
Number of Poles:
1
Terminal Type:
PCB Pin
Contact Material:
Gold Plated
HTSUS:
8536.41.0020
Coil Voltage:
12VDC
Termination Style:
PC Pin
Operating Temperature:
-40°C ~ 85°C
Coil Resistance:
848 Ohms
Coil Current:
14 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC, 250VDC - Max
Seal Rating:
-
Must Operate Voltage:
-
Relay Type:
General Purpose
Package:
Bulk
Contact Form:
SPDT (1 Form C)
Operate Time:
5 ms
Must Release Voltage:
-
standardLeadTime:
5 Weeks
Contact Rating (Current):
6 A
Features:
-
Mounting Type:
Through Hole
Series:
REL-MR
Release Time:
2.5 ms
Coil Insulation:
-
ECCN:
EAR99
Base Product Number:
29096
Contact Material:
Silver Tin Oxide (AgSnO), Gold (Au)
Checking for live stock
FAQs
Yes. You can also search 2909644 on website for other similar products.
We accept all major payment methods for all products including ET16756708. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 2909644 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Power Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of REL-MR- 12DC/21AU/MS. You can also check on our website or by contacting our customer support team for further order details on REL-MR- 12DC/21AU/MS.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16756708 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16756708.
Yes. We ship 2909644 Internationally to many countries around the world.
This is REL-MR- 12DC/21AU/MS manufactured by Phoenix Contact. The manufacturer part number is 2909644. While it carries 250v dc of maximum DC switching voltage. It has a maximum operating temperature of +85°c. The given dimensions of the product include 28 x 5 x16mm. The product is available in pcb mount configuration. The product rel-mr- 12dc/21au/ms, is a highly preferred choice for users. Latching Options - no. The coil voltage of the product is 12v dc. Its accurate length is 16mm. In addition, the height is 28mm. The product comes in 5mm depth. It has a maximum AC switching voltage of 250v. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 1.5 kva. The contact is equipped with spdt configuration. It has equipped with 1 poles. The terminal is a pcb pin type. The product is made from sturdy gold plated materials. It is assigned with possible HTSUS value of 8536.41.0020. The coil voltage of the product is 12vdc. Moreover, it has pc pin terminal style. The product has -40°c ~ 85°c operating temperature range. It holds up to 848 ohms coil resistance. It has a coil current of 14 ma. The coil is a non latching type. The product's switching voltage is 250vac, 250vdc - max. This is basically a general purpose. It is shipped in bulk package . It also has a spdt (1 form c) contact form. The operating time of the product is 5 ms. It has a long 5 weeks standard lead time. It has a contact current rating of 6 a. The product is available in through hole configuration. The product rel-mr, is a highly preferred choice for users. While 2.5 ms is its release time. The product is designated with the ear99 code number. Moreover, it corresponds to 29096, a base product number of the product. The product is made from sturdy silver tin oxide (agsno), gold (au) materials.
