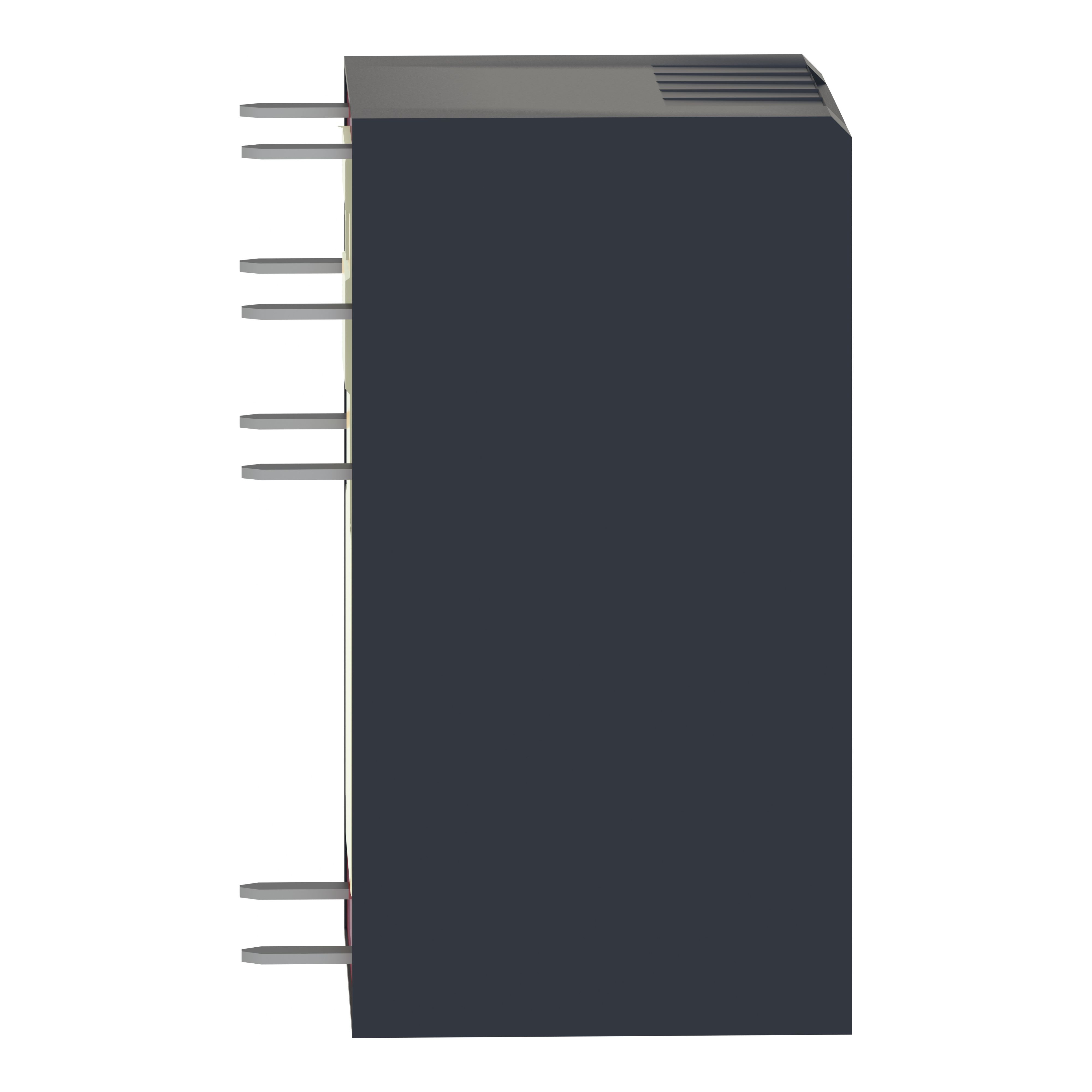

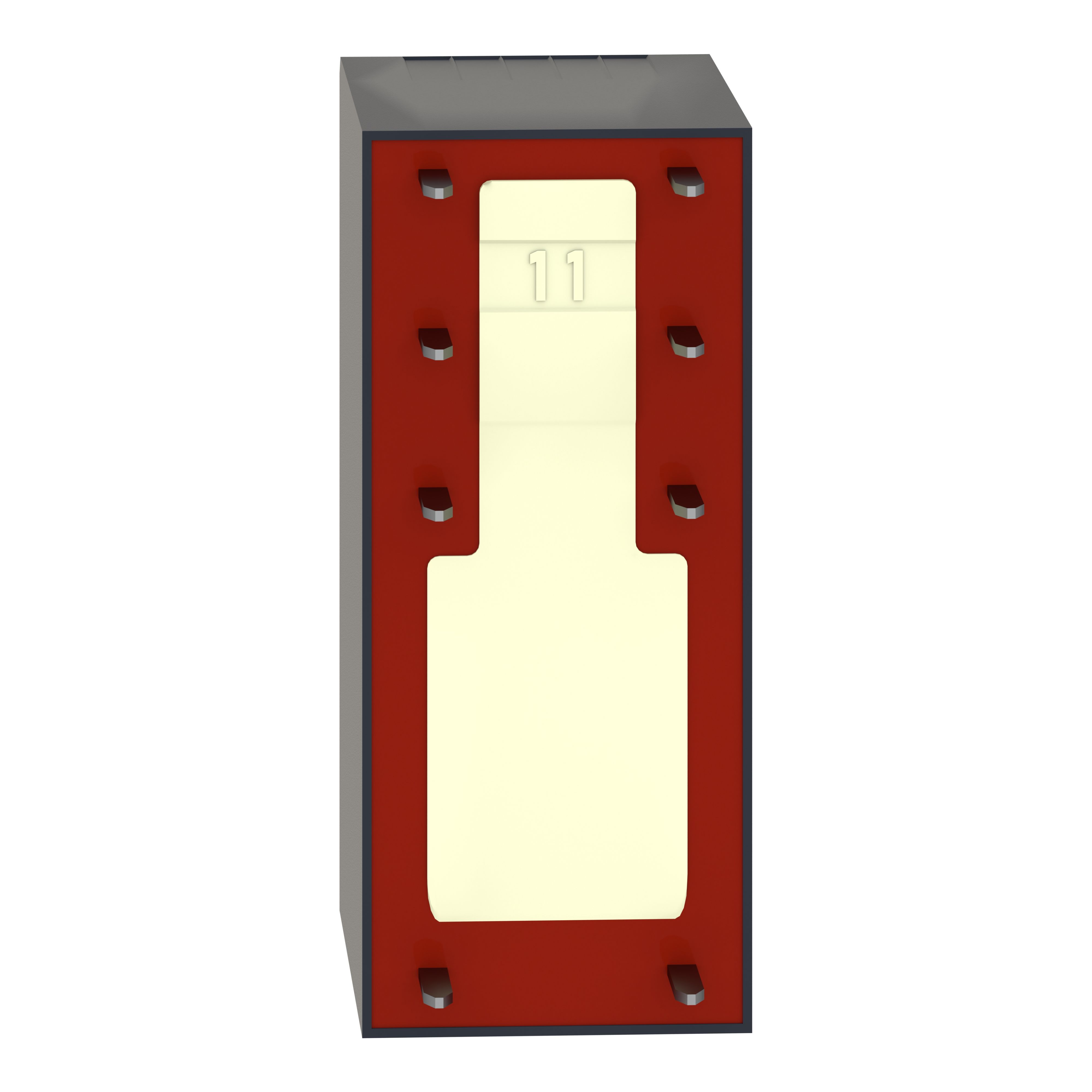

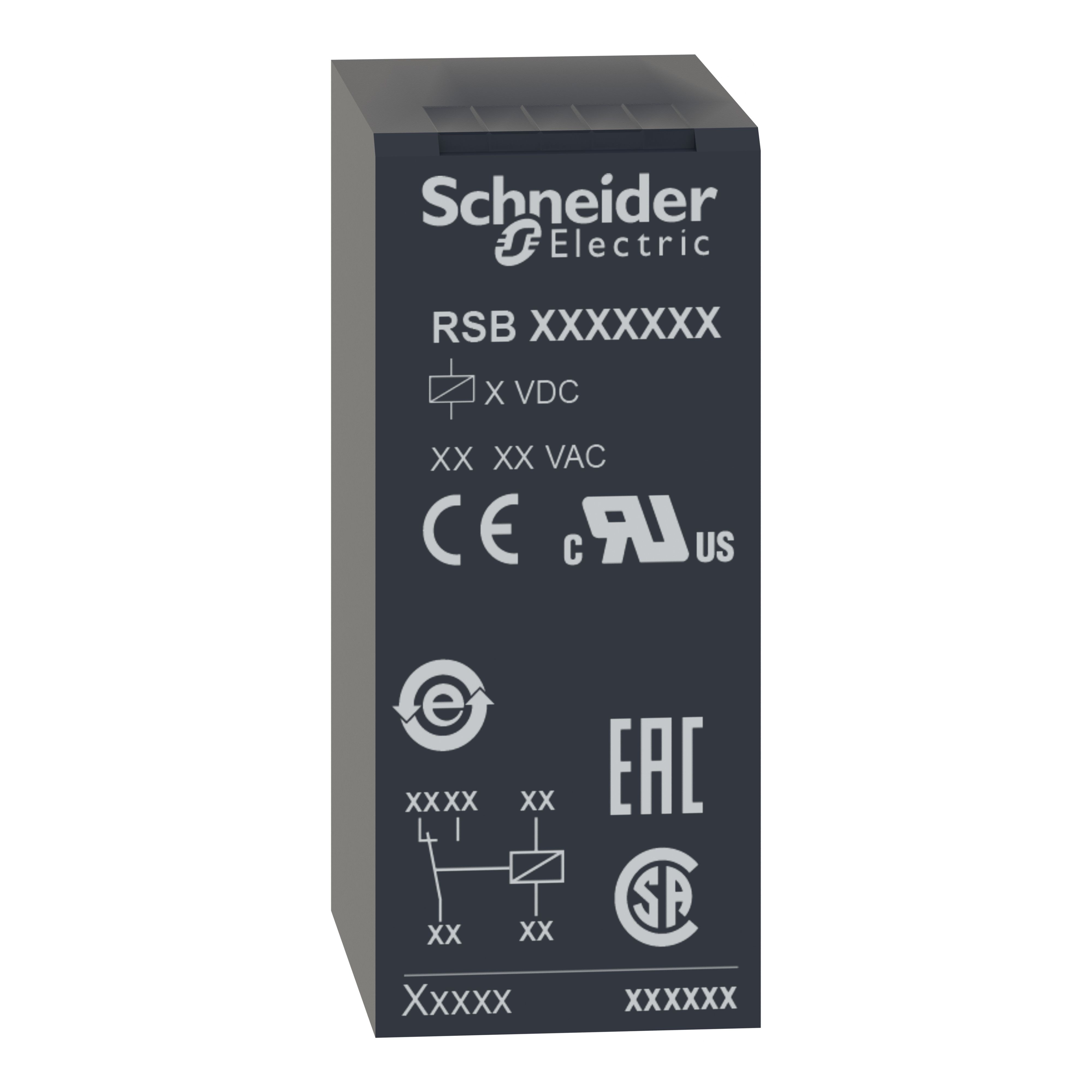

Schneider Electric RSB Series 24V dc PCB Mount Interface Relay Module, DPDT, Through Hole

Enrgtech Part No: ET16748456
|
Manufacturer Part No:
RSB2A080BD
|
Manufacturer: Schneider Electric

RSB2A080BD Schneider Electric RSB Series 24V dc PCB Mount Interface Relay Module, DPDT, Through Hole

Product Information

Better World Verification:

Green Premium

Better World Product:

Yes

Dimensions:

29 x 12.5 x 15.7mm

Mounting Type:

PCB Mount

Minimum Operating Temperature:

-40°C

Series:

Harmony Relay RSB

Switching Current:

Coil Voltage:

24V dc

Length:

29mm

Height:

15.7mm

Depth:

12.5mm

Contact Material:

Silver Alloy

Checking for live stock

The Schneider Electric RSB2A080BD is a highly reliable 24V DC PCB-mount power relay from the Harmony Relay RSB Series. It is engineered for efficient electronic switching applications. This compact device features a DPDT (Double Pole, Double Throw) contact configuration, allowing it to manage two separate circuits simultaneously. With robust construction using a silver alloy contact material, it ensures excellent conductivity and longevity in demanding industrial and commercial environments. The relay's through-hole terminal design simplifies secure mounting on printed circuit boards, making it a dependable component for control systems that require precise, low-power circuit isolation.

Top Reasons to Use the Schneider Electric RSB2A080BD Power Relay Module

Employing this power relay provides dependable circuit isolation and control in automation systems. Its compact PCB-mount design saves valuable space, while the durable DPDT silver alloy contacts ensure high reliability and 8A switching current capacity.

Core Performance Features & Key Uses of the RSB2A080BD Power Relay Module

DPDT (Double Pole, Double Throw) Configuration: Enables the control of two separate circuits simultaneously.
24V DC Coil Voltage: Suitable for standard low-voltage control systems and industrial automation interfaces.
8A Switching Current: Capable of handling moderate power loads for various electronic applications.
PCB Through-Hole Mounting: Provides a secure and permanent connection to a printed circuit board.
Key Uses: Interface control, industrial machine automation, signal isolation, and embedded control systems.
