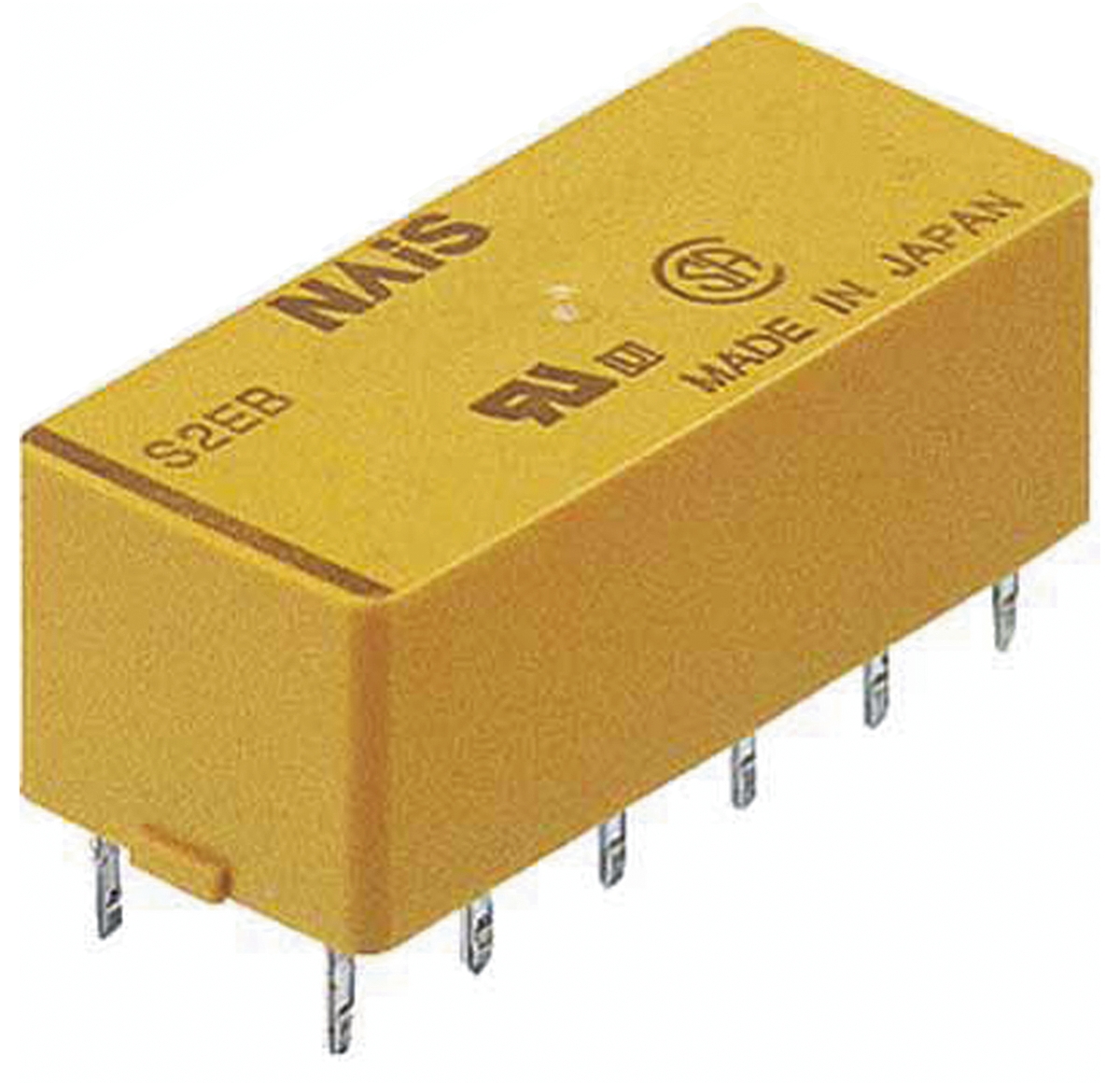

Panasonic DPDT Non-Latching Relay PCB Mount, 12V dc Coil, 3 A

Enrgtech Part No: ET14153995
|
Manufacturer Part No:
S2EB-12V
|
Manufacturer: Panasonic

S2EB-12V Panasonic DPDT Non-Latching Relay PCB Mount, 12V dc Coil, 3 A

Product Information

Coil Voltage:

12V dc

Application:

Office Equipment, Safety, Telecommunications

Terminal Type:

PCB Pin

Coil Resistance:

720Ω

Life:

10 ^8 (Mechanical) Operations, 10^5 (Electrical-AC) Operations, 2 x 10^5 (Electrical-DC) Operations

Coil Power:

200mW

Maximum Switching Voltage DC:

48V dc

Maximum Switching Power DC:

90 W

Isolation Coil To Contact:

1.5kVrms

Maximum Operating Temperature:

+65°C

Switching Current:

Latching:

Checking for live stock

The Panasonic S2EB-12V is a high-sensitivity, polarised power relay designed for precision switching in compact electronic environments. This versatile component features a 2-Form-C (DPDT) contact configuration, making it ideal for applications requiring reliable signal reversal or dual-circuit control. Engineered with advanced magnetic materials, it offers exceptional vibration and shock resistance while maintaining a slim profile for high-density PCB mounting. Its gold-clad contacts ensure long-term electrical stability, providing a dependable solution for telecommunications, measuring instrumentation, and sophisticated industrial automation systems.

Why Buy the Panasonic S2EB-12V Power Relay?

This Panasonic S2EB-12V power relay provides high-speed switching and exceptional sensitivity, ensuring reliable performance in space-constrained industrial control applications.

Superior Sensitivity: Requires minimal power to trigger, reducing the overall energy consumption of your circuit.
High Reliability: Gold-clad bifurcated contacts provide excellent conduction stability for low-level signal switching.

Special Features & Technical Specifications

Contact Form: 2-Form-C (DPDT) for versatile circuit management.
Coil Voltage: Rated at 12V DC for standard power systems.
Switching Capacity: Capable of handling loads up to 4A at 250V AC.
Mounting Type: Through-hole PCB mounting for secure board integration.
Construction: Sealed design to protect internal components from environmental contaminants.
Dielectric Strength: High breakdown voltage between contacts and coil for safety.

S Relays Data Sheet(Technical Reference)
