Schneider Electric DPDT Non-Latching Relay Plug In, 110V dc Coil, 12 A

Enrgtech Part No: ET14151839
|
Manufacturer Part No:
RXM2AB1FD
|
Manufacturer: Schneider Electric

RXM2AB1FD Schneider Electric DPDT Non-Latching Relay Plug In, 110V dc Coil, 12 A

Product Information

Coil Voltage:

110V dc

Terminal Type:

Plug In

Coil Resistance:

13440Ω

Life:

100000 cycles

Standards Met:

CE, CSA, EN/IEC, GOST, Lloyd's, REACH, RoHS Compliant, UL

Coil Power:

900mW

Maximum Switching Power DC:

336 W

Maximum Operating Temperature:

+55°C

Switching Current:

12A

Minimum Operating Temperature:

-40°C

Latching:

Contact Configuration:

DPDT

Checking for live stock

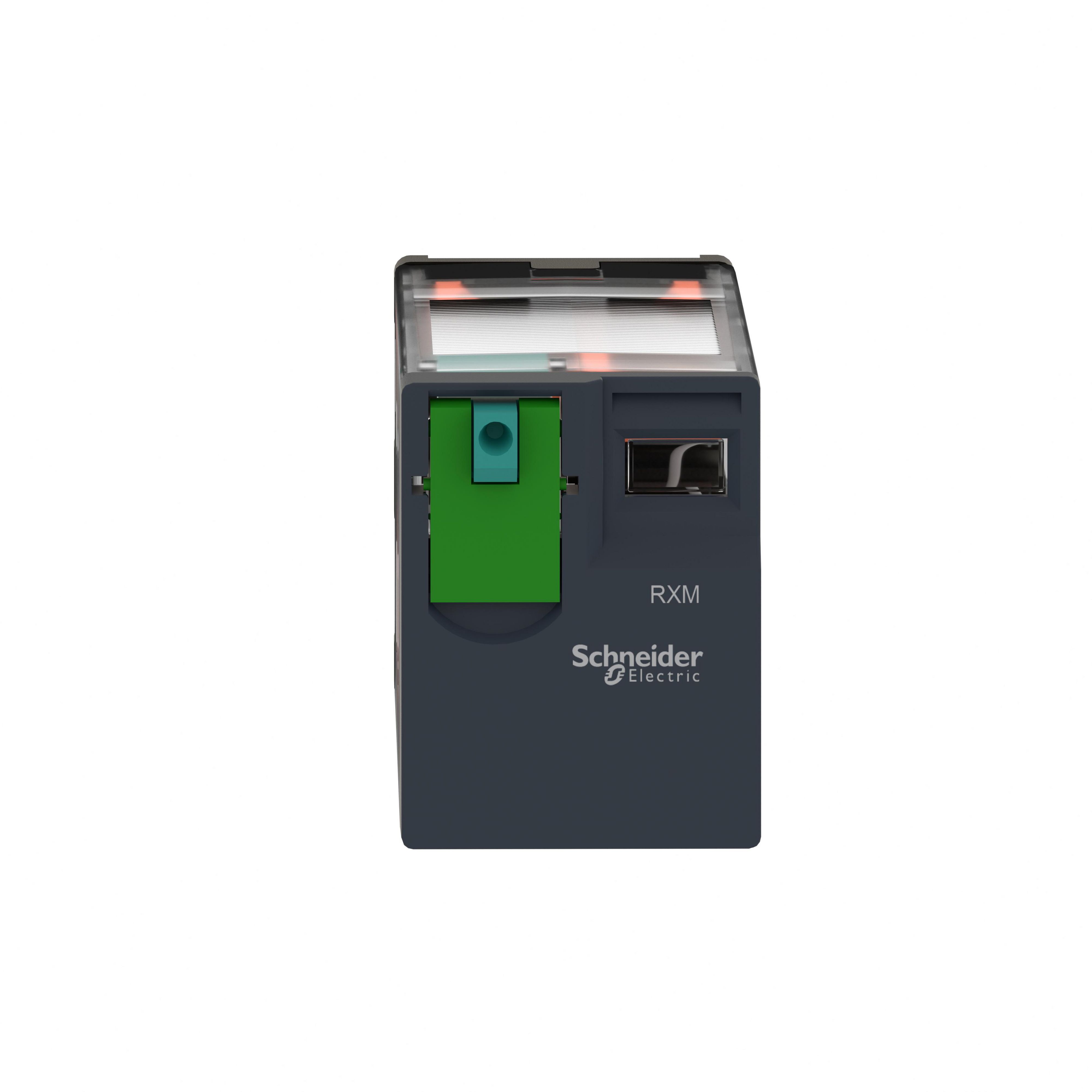

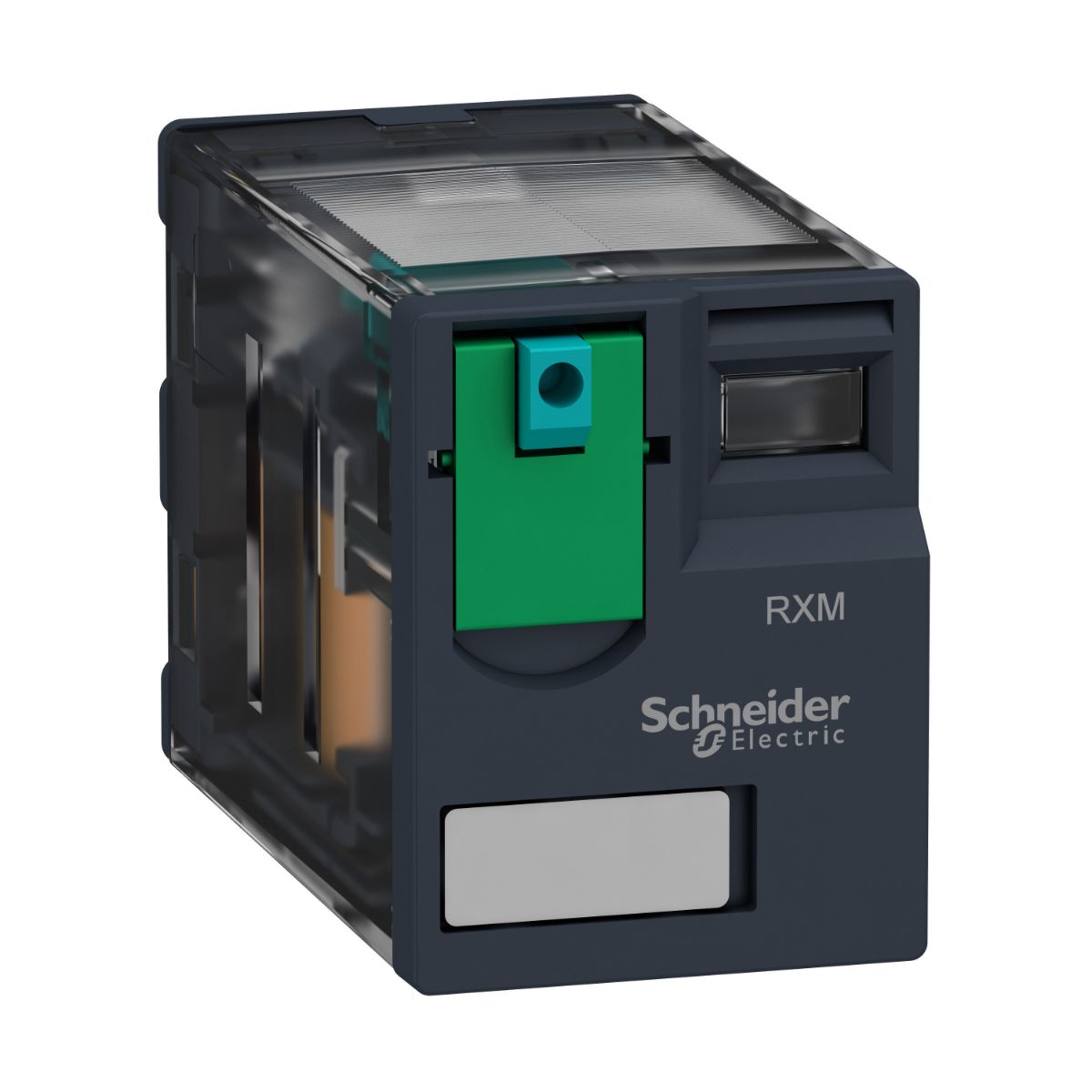

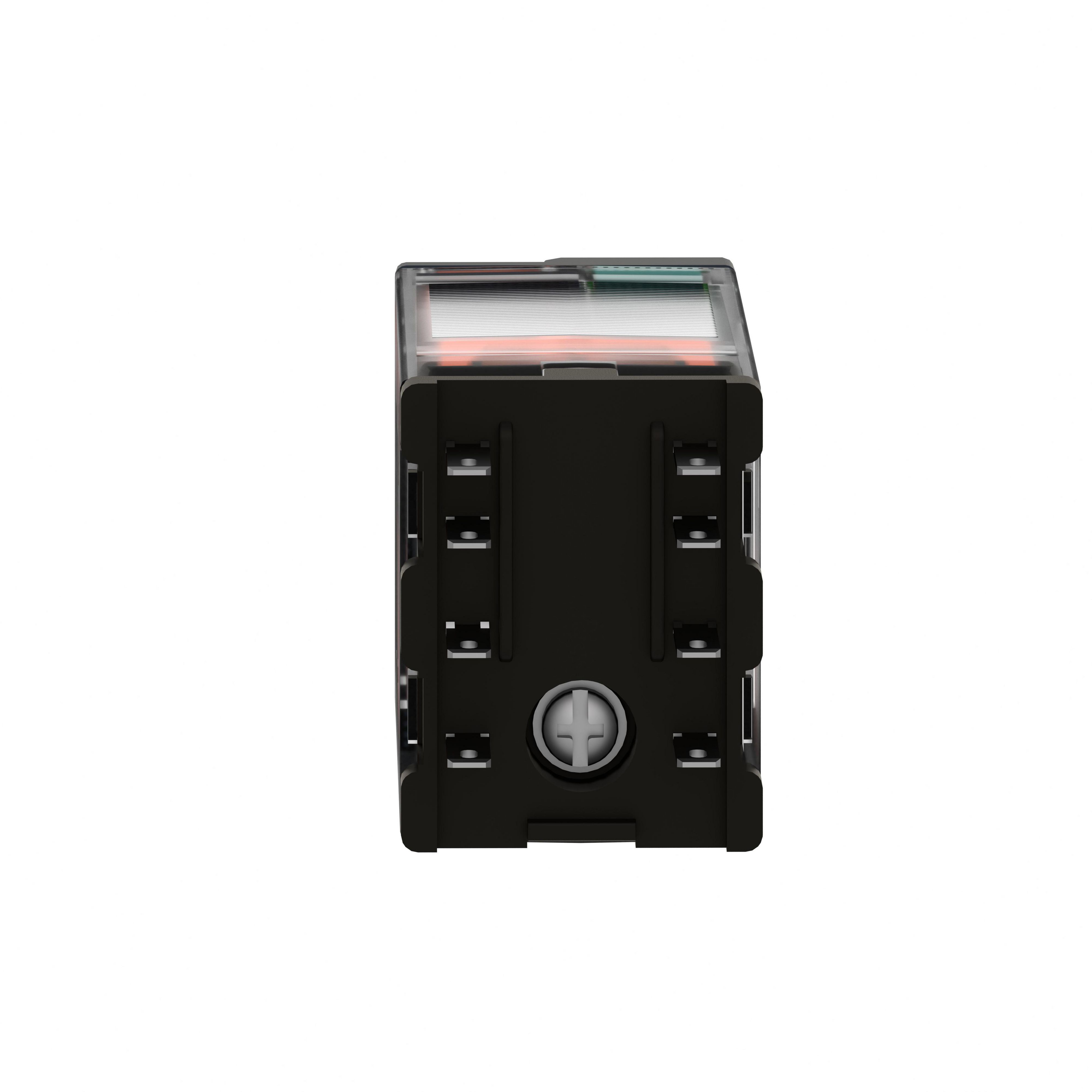

The Schneider Electric RXM2AB1FD Miniature Plug‑In Relay delivers exceptional performance and flexibility for UK industrial and automation needs. Featuring a compact DPDT (2 C/O) design and rated at 12 A switching capacity, this 110 V DC coil relay offers both AC and DC contact operation, all within a space‑saving footprint. Its Harmony series build includes a lockable test button, transparent cover for quick contact status checks, and a mechanical indicator for improved diagnostics. It is ideal for panel builds, control cabinets, and legacy systems seeking consistent, certified switching components.

Why Invest in the Schneider Electric Miniature Plug‑In Relay?

UK system integrators and electrical engineers benefit from this relay’s trusted Schneider Electric pedigree and CE/UL/CSA approval standards. With a durable silver‑nickel contact rated 12 A at 250 V AC or 28 V DC, it supports both resistive and moderate inductive loads. The lockable test button and transparent housing aid safety, troubleshooting and maintenance in live systems.

Product Features and Benefits

High current switching: 12 A capacity at 250 V AC or 28 V DC.
Dual breakdown DPDT contacts for flexible circuit control.
Lockable test button for safe diagnostics and commissioning.
Transparent cover with mechanical indicator for visual contact feedback.
Robust operation over a broad temperature range (-40 °C to +55 °C).
Up to 10 million mechanical cycles, 100 000 electrical cycles.
Certified to CE, UL, CSA, IEC, and GOST standards.

Typical Uses

Panel‑mounted control relays in manufacturing and automation systems
PLC auxiliary switching and interface relay applications
Motor control circuits, lighting and HVAC control cabinets
Building management and safety interlock systems
Test benches and electrical diagnostic rigs
Retrofit of legacy systems requiring plug‑in relay upgrade
