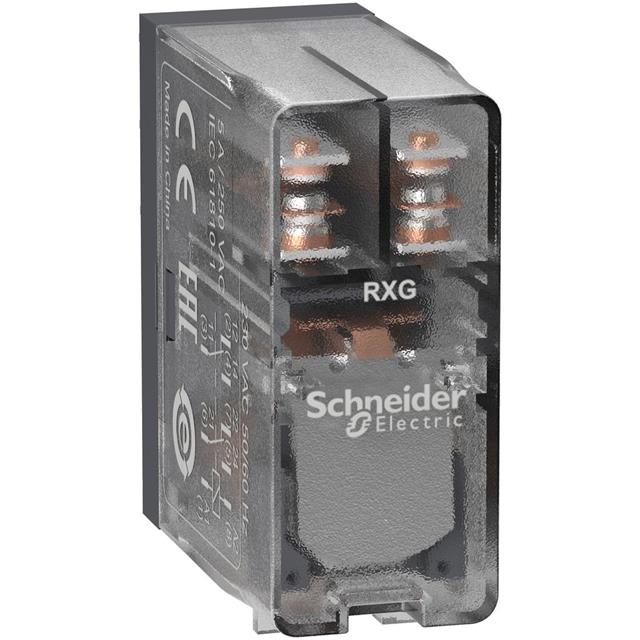

This is DPDT Plug In Non-Latching Relay 230V ac Coil 5 A manufactured by Schneider Electric. The manufacturer part number is RXG25P7. The coil voltage of the product is 230v ac. Applications Information involves interface. The terminal is a plug in type. It holds up to 23500ω coil resistance. It is capable of doing 100000 (electrical) cycles, 10000000 (mechanical) cycles in a lifetime . Robust coil power of 820mw. While it carries 30v dc of maximum DC switching voltage. It bears a maximum 150 w of DC switching power. The product has 5kv ac isolation coil to contact. It has a maximum operating temperature of +70°c. It is integrated with 5a switching current. Latching Options - no. The contact is equipped with dpdt configuration. The product comes in 30.8mm depth. Better World Verification Options - green premium. Is it a better world product? yes. The product is available in plug in configuration. The product harmony relay rxg, is a highly preferred choice for users. Its accurate length is 13mm. In addition, the height is 29mm. It has a maximum AC switching voltage of 250v. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 1.25 kva. It has equipped with 2 poles. The product is made from sturdy silver alloy materials. While the must release voltage is a 69 vac. It is assigned with possible HTSUS value of 8536.49.0050. The product is rohs3 compliant. The coil voltage of the product is 230vac. Moreover, it has plug in terminal style. In addition, it is reach unaffected. The product has -40°c ~ 70°c operating temperature range. It is approved by ce, csa, dnv-gl, eac, ul. The coil is a non latching type. On the other hand, 184 vac is the given crucial/must operating voltage. This is basically a general purpose. It also has a dpdt (2 form c) contact form. Its typical moisture sensitivity level is 1 (unlimited). The operating time of the product is 20 ms. It has a long 5 weeks standard lead time. It has a contact current rating of 5 a. The product is available in socketable configuration. The product harmony, is a highly preferred choice for users. The product's switching voltage is 250vac, 30vdc - max. While 20 ms is its release time. In addition, box is the available packaging type of the product. The product is made from sturdy silver tin oxide indium oxide (agsnoino) materials. Moreover, it corresponds to rxg25, a base product number of the product. The product is designated with the ear99 code number.
For more information please check the datasheets.
