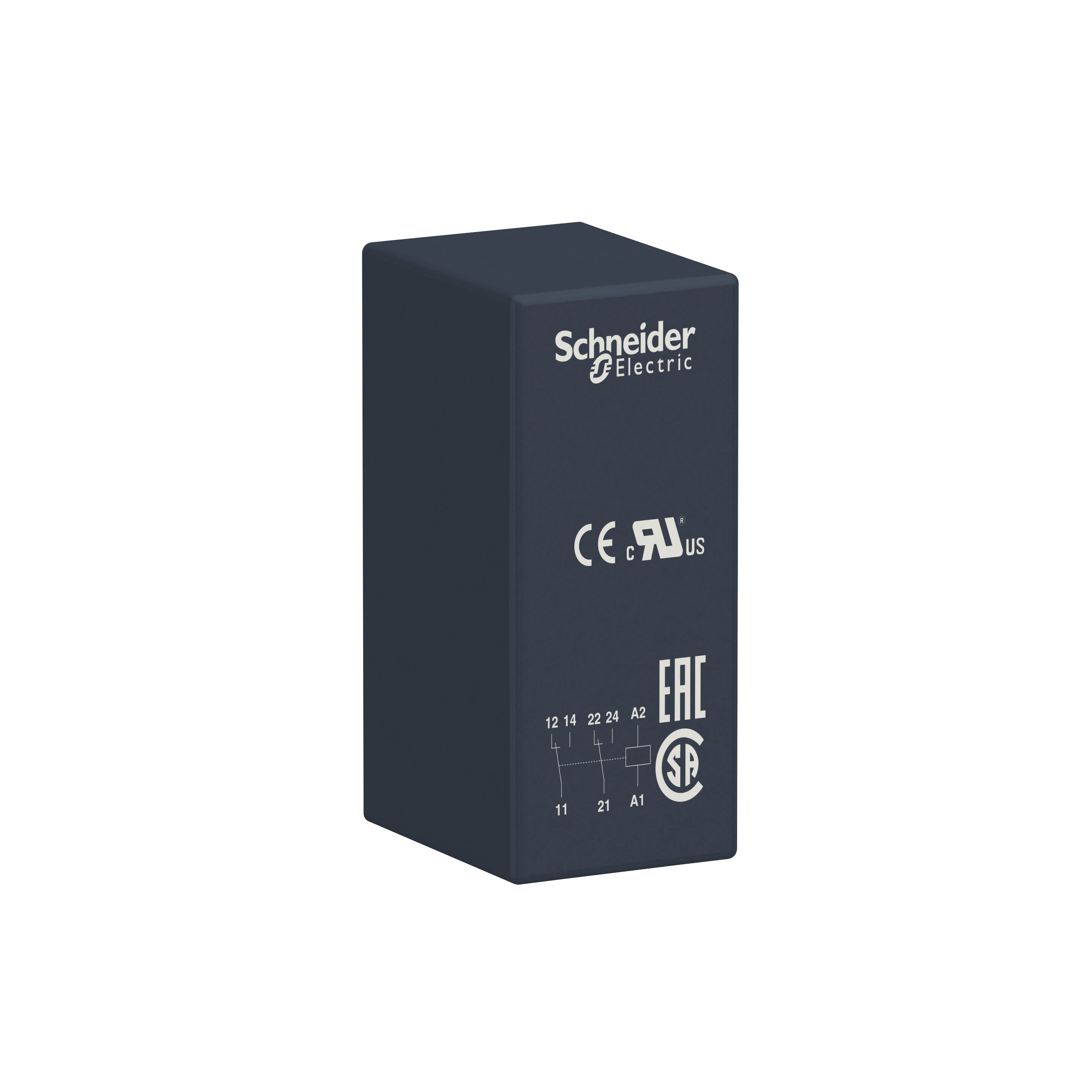

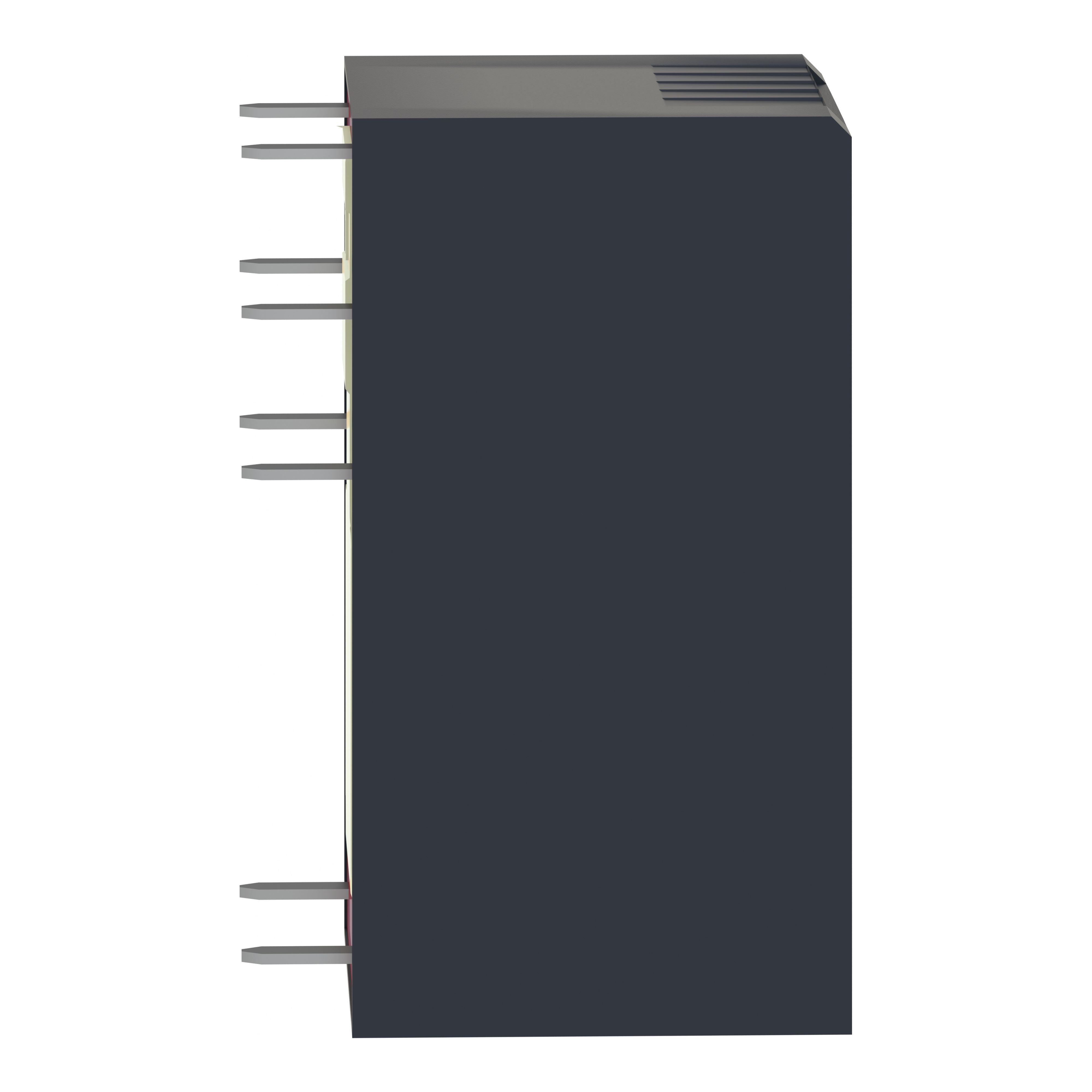

Schneider Electric RSB2A080B7, RSB Series 24V ac PCB Mount Interface Relay Module, DPDT, Through Hole

Enrgtech Part No: ET14151823
|
Manufacturer Part No:
RSB2A080B7
|
Manufacturer: Schneider Electric

RSB2A080B7 Schneider Electric , RSB Series 24V ac PCB Mount Interface Relay Module, DPDT, Through Hole

Product Information

Better World Verification:

Green Premium

Better World Product:

Yes

Minimum Operating Temperature:

-40°C

Mounting Type:

PCB Mount

Series:

Harmony Relay RSB

Switching Current:

Coil Voltage:

24V ac

Contact Configuration:

DPDT

Maximum Operating Temperature:

+70°C

Terminal Type:

Through Hole

Contact Material:

Silver Alloy

Checking for live stock

The Schneider Electric RSB2A080B7 is a compact and reliable switching solution engineered for high-performance automation and control systems. Operating on 24V AC, this DPDT (Double Pole Double Throw) relay is built for PCB through-hole mounting, offering excellent electrical isolation and dependable switching for various applications. Its compact footprint and proven Schneider engineering make it a preferred option for engineers and OEMs in the UK.

What Makes the Schneider Electric PCB Mount Interface Relay Module So Important?

This relay module stands out for its versatility in signal switching and load control within densely packed electronic systems. The DPDT configuration allows control over two circuits simultaneously, offering flexibility in complex control schemes. With a robust design and reliable coil activation at 24V AC, the RSB2A080B7 ensures smooth integration into PLCs, industrial automation panels, and HVAC systems. It enhances circuit safety and performance without compromising space or energy efficiency.

Standout Features and Benefits Include

Controls two separate loads with one coil signal.
Suitable for high-density PCB layouts.
Designed for long operational life under repetitive switching.
Visual confirmation of relay status.
Meets global compliance and safety standards
Handles both AC and DC loads effectively.
Compact form factor fits easily into control modules.
Built with high-quality materials for long-lasting operation.
Modular design allows easy replacement and diagnostics.

Usage Information of the Schneider Electric PCB Mount Interface Relay Module, DPDT, Through Hole

Programmable Logic Controllers (PLCs)
Industrial Automation Panels
HVAC Control Systems
Machine Tools and Process Equipment
Signal Switching in Commercial Electronics
Building Management Systems
