Coil Voltage:
24V dc
Life:
10000000 cycles
Coil Power:
1.1W
Maximum Switching Voltage DC:
28V dc
Maximum Switching Power DC:
3750 VA
Isolation Coil To Contact:
2kV ac
Maximum Operating Temperature:
+55°C
Switching Current:
15A
Maximum Switching Current AC:
15 A
Latching:
No
Contact Configuration:
SPDT
Depth:
40mm
Better World Verification:
Green Premium
Better World Product:
Yes

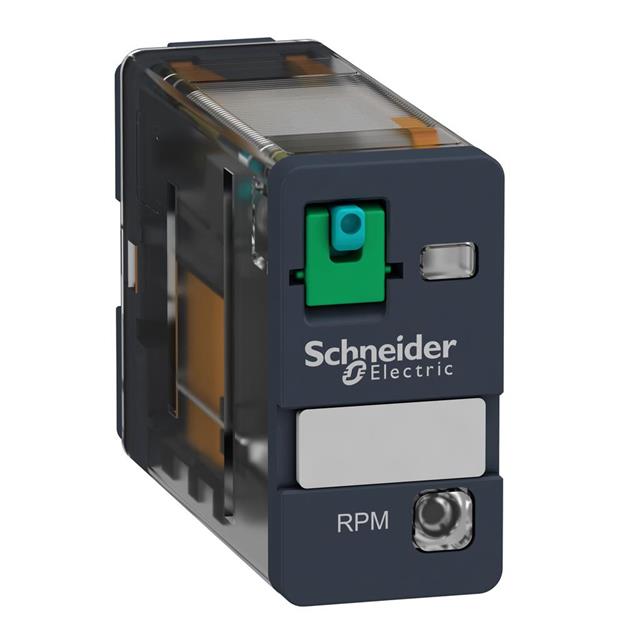

Series:
Harmony Relay RP
Length:
14mm
Height:
27mm
Maximum Switching Current DC:
15 A
Maximum Switching Voltage AC:
277V
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
420 W
Number of Poles:
1
Contact Material:
Silver Alloy
Must Release Voltage:
2.4 VDC
HTSUS:
8536.41.0050
RoHS Status:
ROHS3 Compliant
Coil Voltage:
24VDC
Termination Style:
Plug In
REACH Status:
REACH Unaffected
Operating Temperature:
-40°C ~ 55°C
Approval Agency:
CSA, EAC, UL
Coil Resistance:
450 Ohms
Coil Current:
53.3 mA
Coil Type:
Non Latching
Switching Voltage:
250VAC, 28VDC - Max
Seal Rating:
-
Must Operate Voltage:
19.2 VDC
Relay Type:
General Purpose
Load - Max Switching:
3750VA, 420W
Contact Form:
SPDT (1 Form C)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Operate Time:
20 ms
Qualification:
-
standardLeadTime:
3 Weeks
Contact Rating (Current):
15 A
Features:
Lighted Indicator, Test Button
Mounting Type:
Socketable
Grade:
-
Series:
Harmony
Release Time:
20 ms
Packaging:
Box
Coil Insulation:
-
Contact Material:
Silver Nickel (AgNi)
Base Product Number:
RPM12
ECCN:
EAR99
