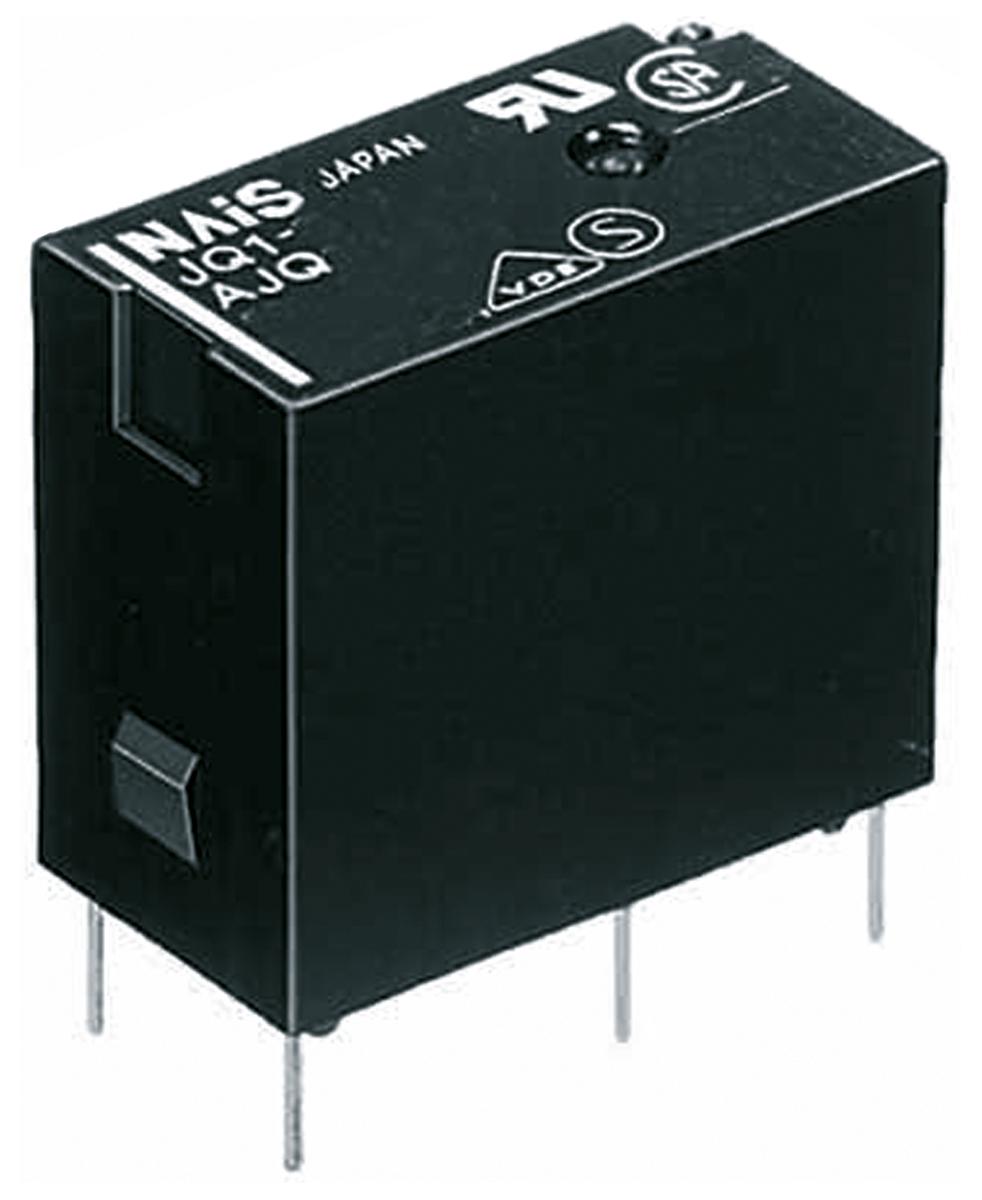

Panasonic SPNO Non-Latching Relay PCB Mount, 12V dc Coil, 5 A
Product Information
Coil Voltage:
12V dc
Application:
Domestic Appliances, Heating Control
Terminal Type:
PCB Pin
Coil Resistance:
720Ω
Life:
10^7 (Mechanical) Operations, 5 x 10^4 Operations
Coil Power:
200mW
Maximum Switching Voltage DC:
110V dc
Maximum Switching Power DC:
150 W
Isolation Coil To Contact:
4kVrms
Maximum Operating Temperature:
+70°C
Switching Current:
5A
Latching:
No
Contact Configuration:
SPST
Depth:
20mm
Mounting Type:
PCB Mount
Length:
10mm
Height:
16mm
Maximum Switching Voltage AC:
250V
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
1.25 kVA
Number of Poles:
1
Contact Material:
Silver Alloy
Checking for live stock
FAQs
Yes. You can also search JQ1AP-12V-F on website for other similar products.
We accept all major payment methods for all products including ET14054090. Please check your shopping cart at the time of order.
You can order Panasonic brand products with JQ1AP-12V-F directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Power Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Panasonic SPNO Non-Latching Relay PCB Mount, 12V dc Coil, 5 A. You can also check on our website or by contacting our customer support team for further order details on Panasonic SPNO Non-Latching Relay PCB Mount, 12V dc Coil, 5 A.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14054090 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Panasonic" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14054090.
Yes. We ship JQ1AP-12V-F Internationally to many countries around the world.
This is SPNO Non-Latching Relay PCB Mount 12V dc Coil 5 A manufactured by Panasonic. The manufacturer part number is JQ1AP-12V-F. The coil voltage of the product is 12v dc. Applications Information involves domestic appliances, heating control. The terminal is a pcb pin type. It holds up to 720ω coil resistance. It is capable of doing 10^7 (mechanical) operations, 5 x 10^4 operations in a lifetime . Robust coil power of 200mw. While it carries 110v dc of maximum DC switching voltage. It bears a maximum 150 w of DC switching power. The product has 4kvrms isolation coil to contact. It has a maximum operating temperature of +70°c. It is integrated with 5a switching current. Latching Options - no. The contact is equipped with spst configuration. The product comes in 20mm depth. The product is available in pcb mount configuration. Its accurate length is 10mm. In addition, the height is 16mm. It has a maximum AC switching voltage of 250v. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 1.25 kva. It has equipped with 1 poles. The product is made from sturdy silver alloy materials.
