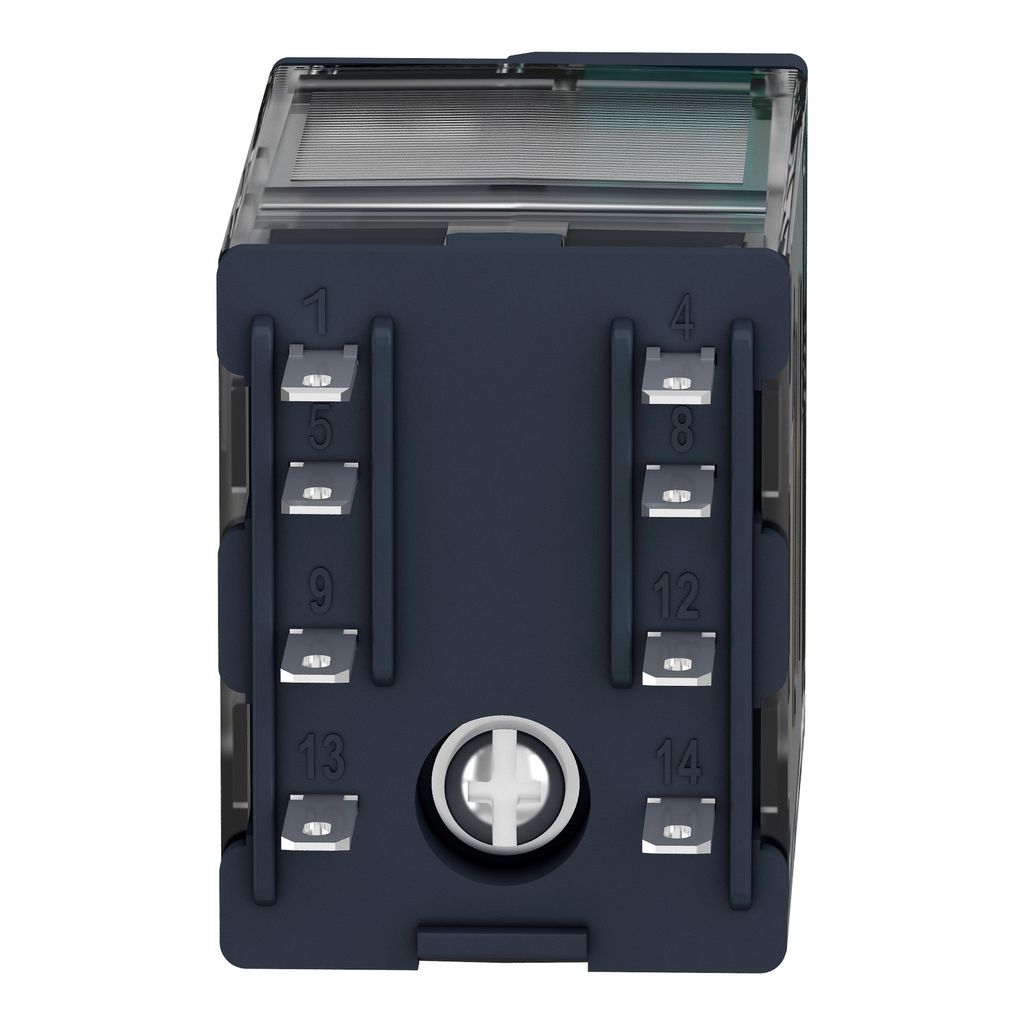

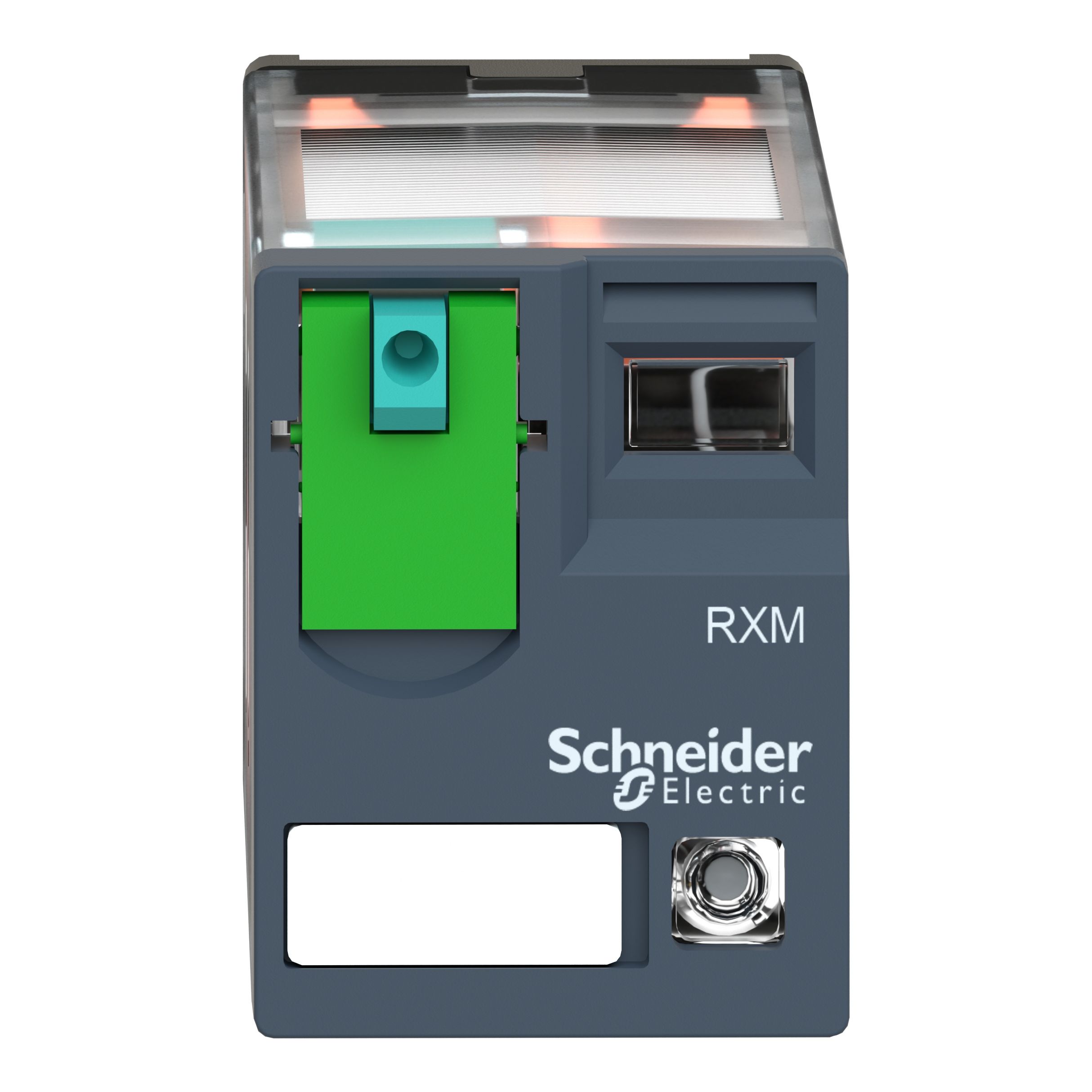

This is DPDT Non-Latching Relay Plug In 110V dc Coil 12 A manufactured by Schneider Electric. The manufacturer part number is RXM2AB2FD. The coil voltage of the product is 110v dc. The terminal is a plug in type. It holds up to 13440ω coil resistance. It is capable of doing 100000 cycles in a lifetime . The product complies with all safety standards, such as ce, csa, en/iec, gost, lloyd's, reach, rohs compliant, ul. Robust coil power of 900mw. It bears a maximum 336 w of DC switching power. It has a maximum operating temperature of +55°c. It is integrated with 12a switching current. Latching Options - no. The contact is equipped with dpdt configuration. The product comes in 47.7mm depth. Better World Verification Options - green premium. Is it a better world product? yes. The product is available in plug in configuration. The product harmony relay rxm, is a highly preferred choice for users. Its accurate length is 21mm. In addition, the height is 27mm. It has a maximum AC switching voltage of 250v. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 3 kva. It has equipped with 2 poles. The product is made from sturdy silver alloy materials.
For more information please check the datasheets.
