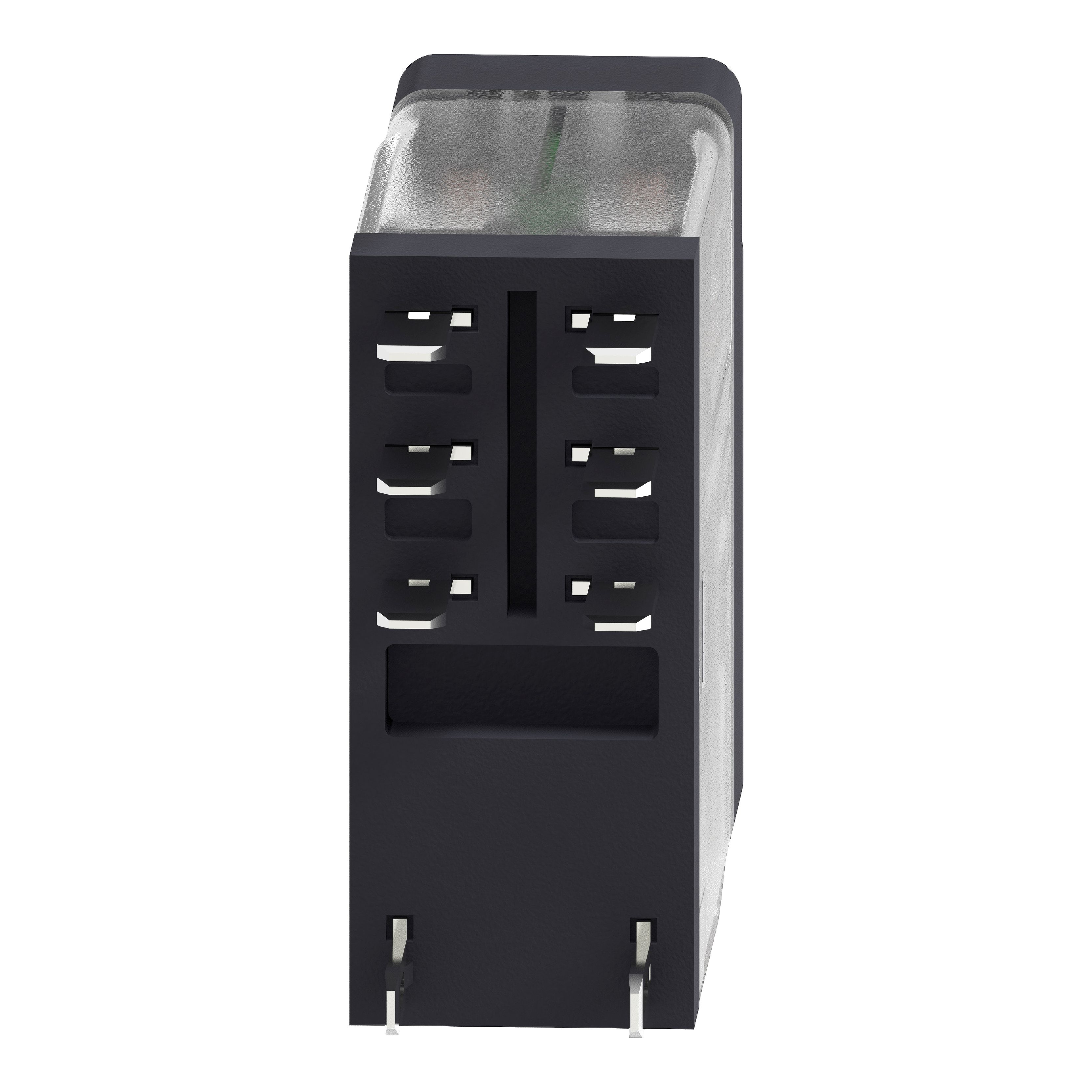

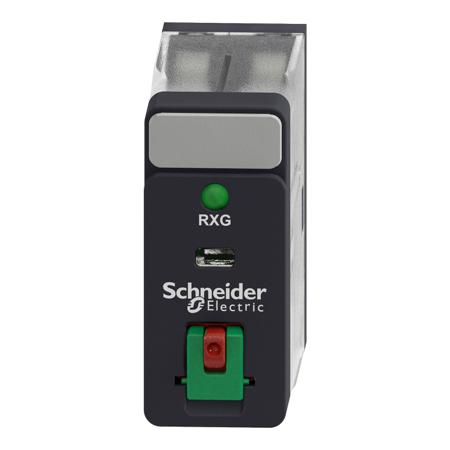

Schneider Electric DPDT Non-Latching Relay Plug In, 24V ac Coil, 5 A

Enrgtech Part No: ET13943090
|
Manufacturer Part No:
RXG22B7
|
Manufacturer: Schneider Electric

RXG22B7 Schneider Electric DPDT Non-Latching Relay Plug In, 24V ac Coil, 5 A

Product Information

Coil Voltage:

24V ac

Application:

Interface

Terminal Type:

Plug In

Coil Resistance:

260Ω

Life:

100000 (Electrical) cycles, 10000000 (Mechanical) cycles

Coil Power:

820mW

Maximum Switching Voltage DC:

30V dc

Maximum Switching Power DC:

150 W

Isolation Coil To Contact:

5kV ac

Maximum Operating Temperature:

+70°C

Switching Current:

Minimum Operating Temperature:

-40°C

Checking for live stock

The Schneider Electric RXG22B7 is engineered for UK industrial and control-panel applications where reliability and flexibility are essential. Featuring a compact DPDT (2 C/O) design with a 24 VAC coil and silver‑alloy contacts, this relay can switch up to 5 A at 250 VAC or 30 V DC. It delivers mechanical endurance of up to 10 million cycles and electrical life exceeding 100,000 operations, ideal for frequent switching scenarios. With an integrated LED indicator, lockable test button and socketable base, it ensures streamlined installation and maintenance.

What Sets the Schneider Electric DPDT Non-Latching Relay Apart

UK engineers and panel builders prefer the RXG22B7 for its perfect blend of longevity and user‑friendly features. Its non‑latching coil design with low power draw (approx. 820 mW) ensures energy efficiency, while the LED status indicator and lockable test button provide clear diagnostics and safety. Designed for use at temperatures from –40 °C to +70 °C, its hardy construction meets stringent CE, UL, CSA and IEC standards. The plug‑in mounting base simplifies wiring changes and panel servicing, reducing downtime in UK facilities.

Key Features and Benefits of the Product

Robust DPDT switching: 5 A at 250 VAC or 30 V DC.
Long mechanical life: up to 10 million cycles; electrical life: ≥ 100,000 cycles.
LED indicator and lockable test button for easy status checks
Compact, socketable format enables fast replacement and service
Broad operating range (–40 °C to +70 °C) ensures reliability in harsh UK environments.
High dielectric insulation (5 kV AC) between coil and contacts.

Versatility in Applications

Interface modules for PLCs and automation systems
Control and logic switching in industrial machinery
Machine safety and status monitoring in production lines
HVAC, lighting and building control panels
Test equipment and laboratory switches
OEM panel building and system integration
