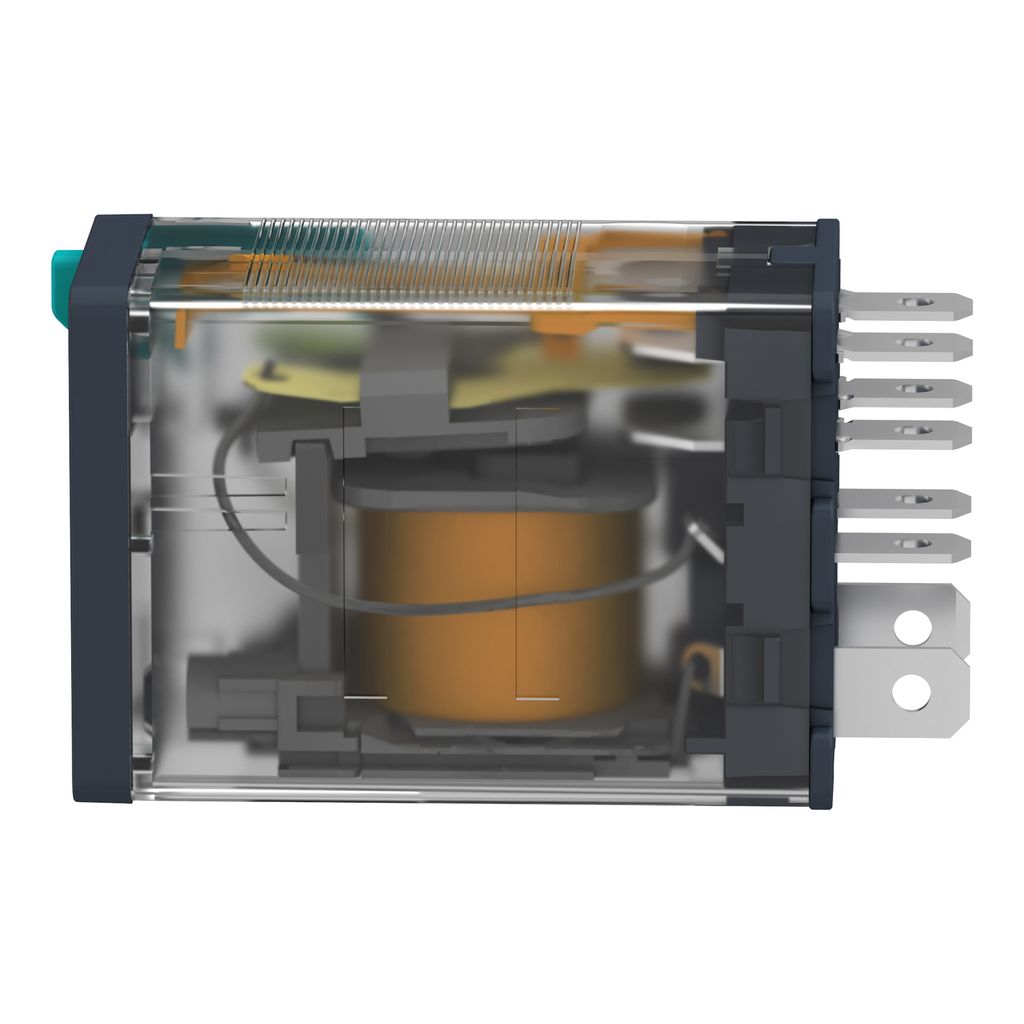

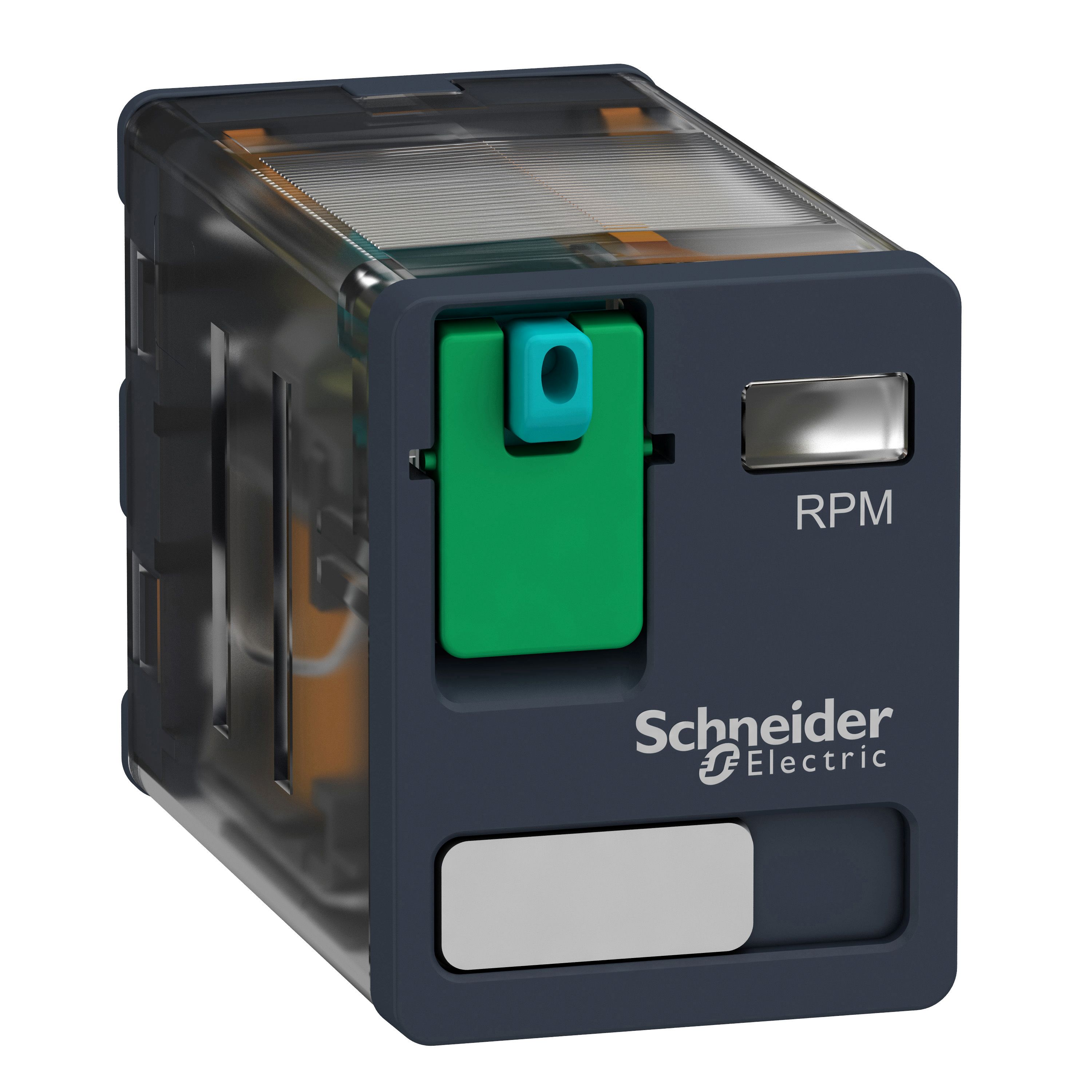

This is DPDT Non-Latching Relay Panel Mount 24V dc Coil 15 A manufactured by Schneider Electric. The manufacturer part number is RPM21BD. The given dimensions of the product include 21 x 46 x 27mm. The coil voltage of the product is 24 v dc. Applications Information involves power. It holds up to 650 ω coil resistance. It is capable of doing 100000 (electrical) cycles, 10000000 (mechanical) cycles in a lifetime . Robust coil power of 900mw. While it carries 250v of maximum DC switching voltage. The product has 2.5kv ac isolation coil to contact. It has a maximum operating temperature of +55°c. The terminal is a plug in type. The product has -40 → +55°c of operating temperature range. It is integrated with 15 a switching current. The contact is equipped with dpdt configuration. The product comes in 46mm depth. The product is available in panel mount configuration. Its accurate length is 21mm. In addition, the height is 27mm. It has a maximum AC switching voltage of 250v. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 3.75 kva. The product is made from sturdy silver alloy materials.
For more information please check the datasheets.
