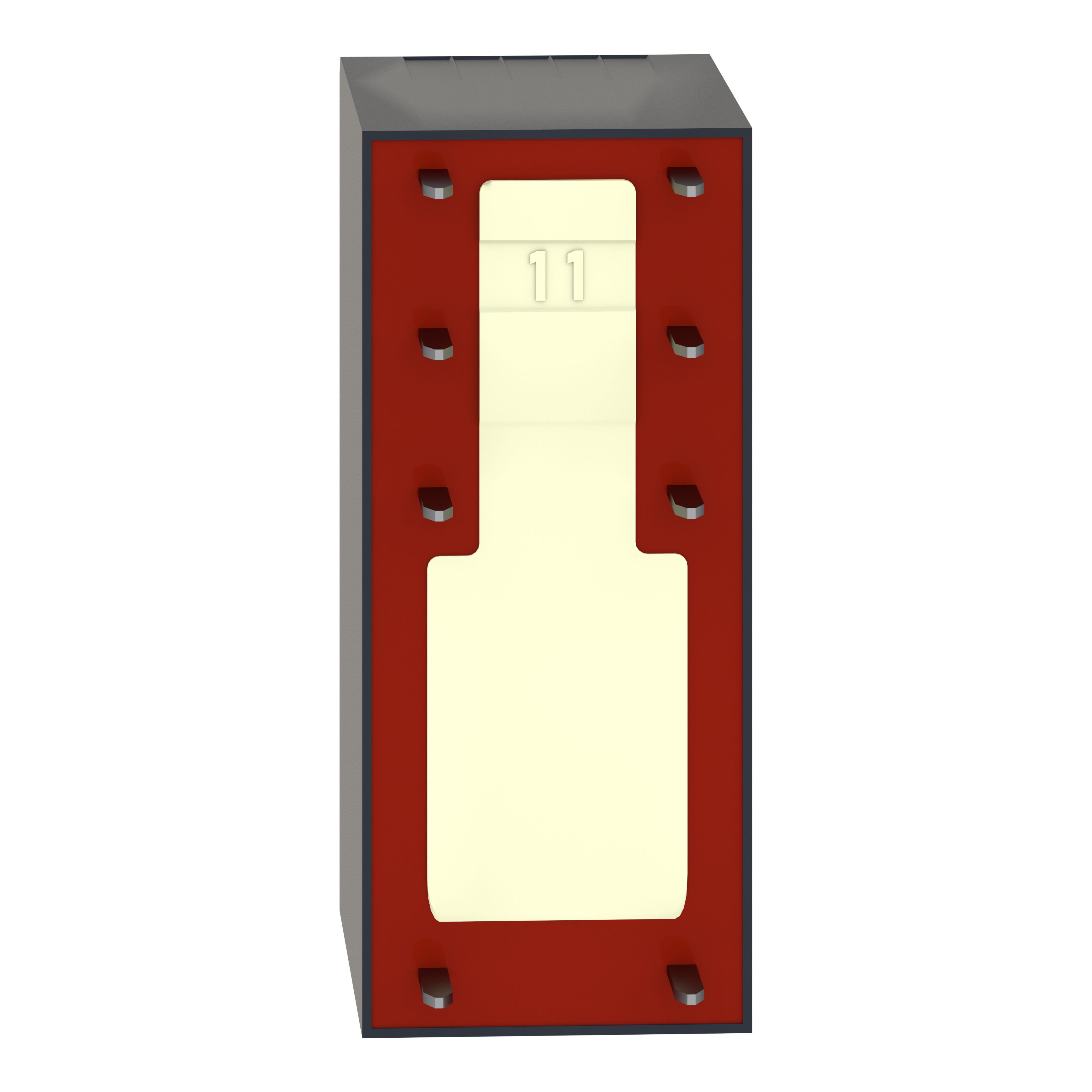

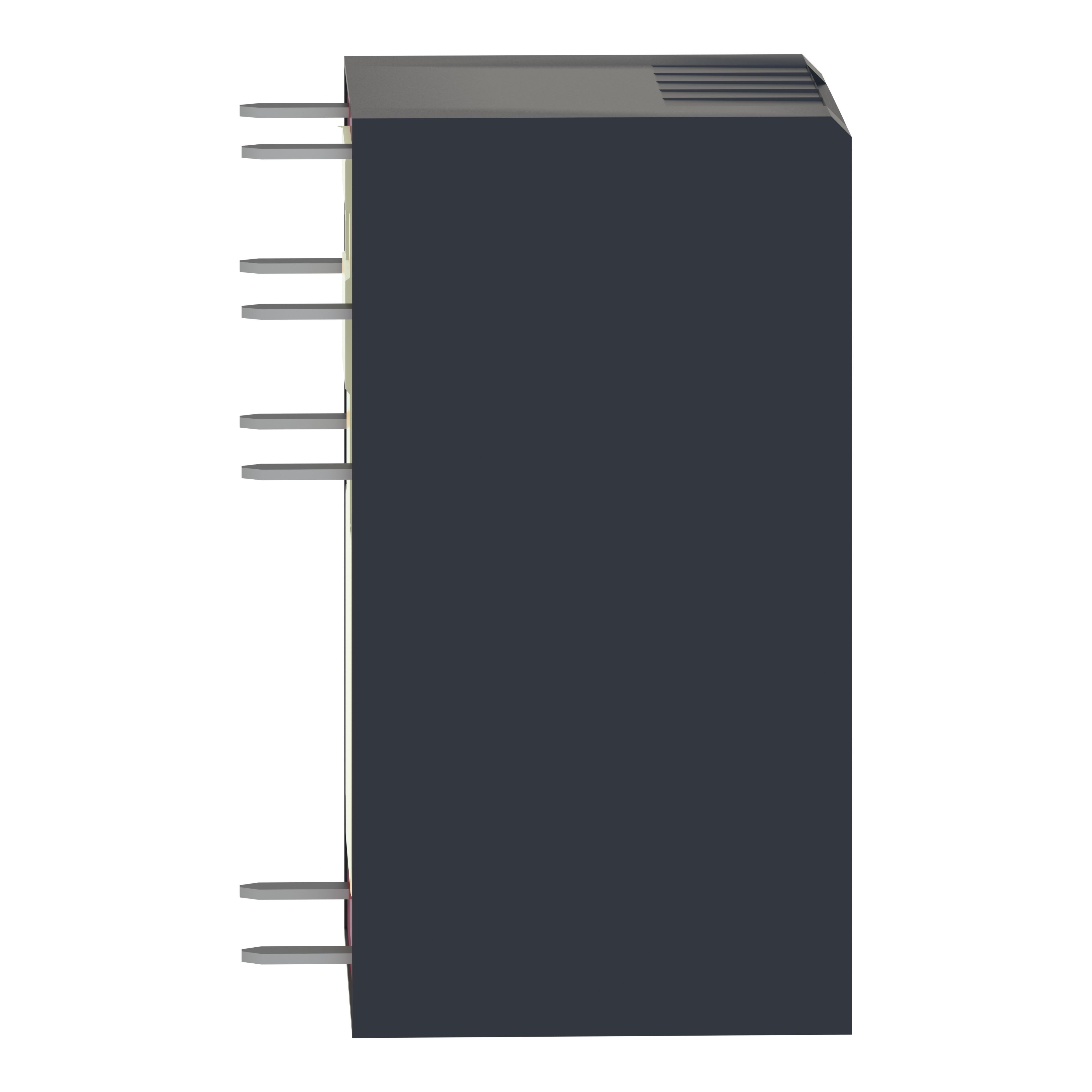

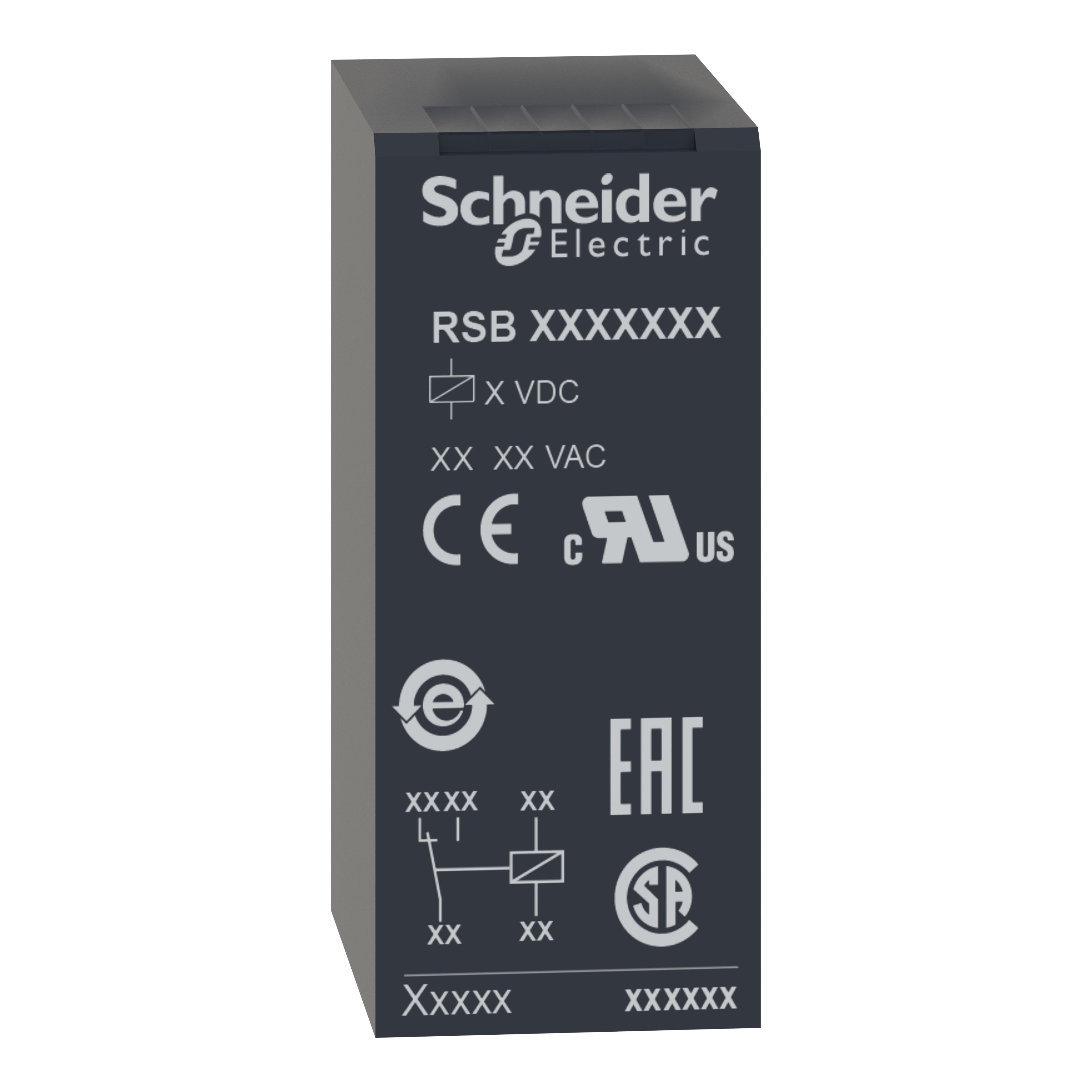

Schneider Electric RSB Series 230V ac PCB Mount Interface Relay Module, DPDT, Through Hole

Enrgtech Part No: ET13817588
|
Manufacturer Part No:
RSB2A080P7
|
Manufacturer: Schneider Electric

RSB2A080P7 Schneider Electric RSB Series 230V ac PCB Mount Interface Relay Module, DPDT, Through Hole

Product Information

Better World Verification:

Green Premium

Better World Product:

Yes

Minimum Operating Temperature:

-40°C

Mounting Type:

PCB Mount

Series:

Harmony Relay RSB

Switching Current:

Coil Voltage:

230V ac

Contact Configuration:

DPDT

Maximum Operating Temperature:

+70°C

Terminal Type:

Through Hole

Contact Material:

Silver Alloy

Checking for live stock

The Schneider Electric RSB2A080P7 is a versatile interface plug-in power relay from the Harmony RSB series. This relay is optimised for space-constrained industrial control panels. This miniature DPDT (2 C/O) relay features an 8A contact rating and is powered by a 230V AC coil, providing a robust solution for switching both resistive and inductive loads. Its slim design and plug-in mounting style facilitate high-density installations while simplifying maintenance and replacement processes in complex automation systems, ensuring high mechanical and electrical durability.

Why Should You Buy the Relay?

This Schneider Electric RSB2A080P7 power relay combines a compact form factor with the high reliability required for professional automation and energy management tasks. It enhances machine uptime through its long life cycle and simplified plug-and-play installation.

Slim 13mm width helps reduce the overall size of electrical enclosures.
High electrical durability ensures stable performance over 100,000 switching cycles.

Feature Highlights & Applications Areas

Key Features
Double-Pole Double-Throw (DPDT) contact configuration.
8A rated operational current at 250V AC.
230V AC control coil voltage at 50/60 Hz.
IP40 protection rating for safe industrial use.
Silver alloy (AgNi) contacts for low resistance and high reliability.
Uses
PLC interface and automation control systems.
HVAC equipment and motor control circuits.
Power management and industrial switching applications.
Building automation and commercial lighting controls.
