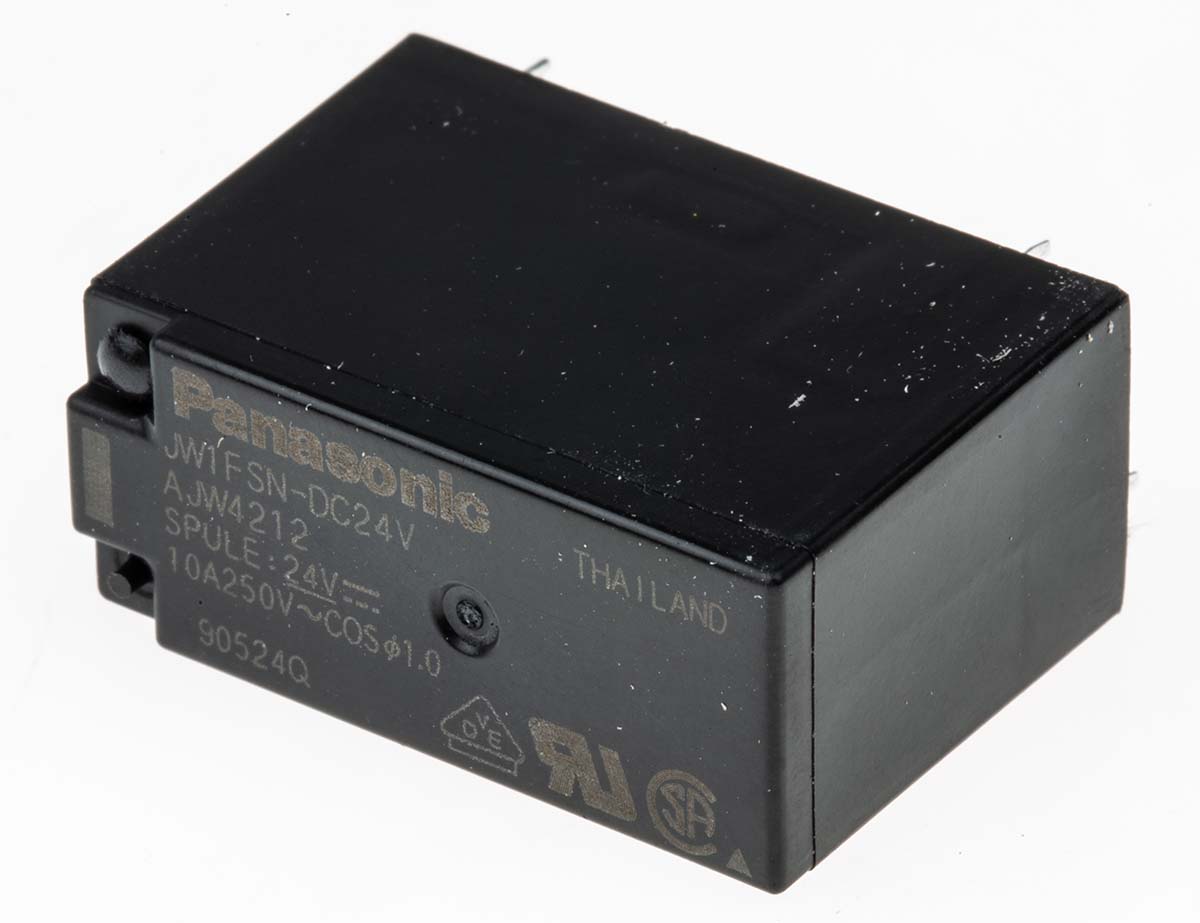

Panasonic SPDT Non-Latching Relay PCB Mount, 24V dc Coil

JW1FSN-DC24V Panasonic SPDT Non-Latching Relay PCB Mount, 24V dc Coil
JW1FSN-DC24V
Panasonic

Product Information

Minimum Operating Temperature:
-40°C
Mounting Type:
PCB Mount
Maximum Operating Temperature:
+60°C
Latching:
No
Coil Voltage:
24V dc
Length:
28.6mm
Height:
20mm
Application:
Power
Depth:
12.8mm
Maximum Switching Power DC:
300 W
Contact Configuration:
SPDT
Maximum Switching Power AC:
2.5 kVA
Contact Material:
Silver Alloy
Number of Poles:
1
Terminal Type:
Through Hole
Coil Resistance:
1100Ω
RoHs Compliant
Checking for live stock

This is SPDT Non-Latching Relay PCB Mount 24V dc Coil manufactured by Panasonic. The manufacturer part number is JW1FSN-DC24V. Whereas, the minimum operating temperature of the product is -40°c. The product is available in pcb mount configuration. It has a maximum operating temperature of +60°c. Latching Options - no. The coil voltage of the product is 24v dc. Its accurate length is 28.6mm. In addition, the height is 20mm. Applications Information involves power. The product comes in 12.8mm depth. It bears a maximum 300 w of DC switching power. The contact is equipped with spdt configuration. It also features an AC switching power of 2.5 kva. The product is made from sturdy silver alloy materials. It has equipped with 1 poles. The terminal is a through hole type. It holds up to 1100ω coil resistance.

pdf icon
JW Relays Data Sheet(Technical Reference)
