Maximum Voltage:
100V dc
Series:
VAL
Length:
17.7mm
Height:
47mm
Hazardous Area Certification:
No
Depth:
67.3mm
Standards/Approvals:
IEC 61643-11, EN 60664-1 / EN 61643-11
Minimum Operating Temperature:
-40°C
Maximum Surge Current:
65kA

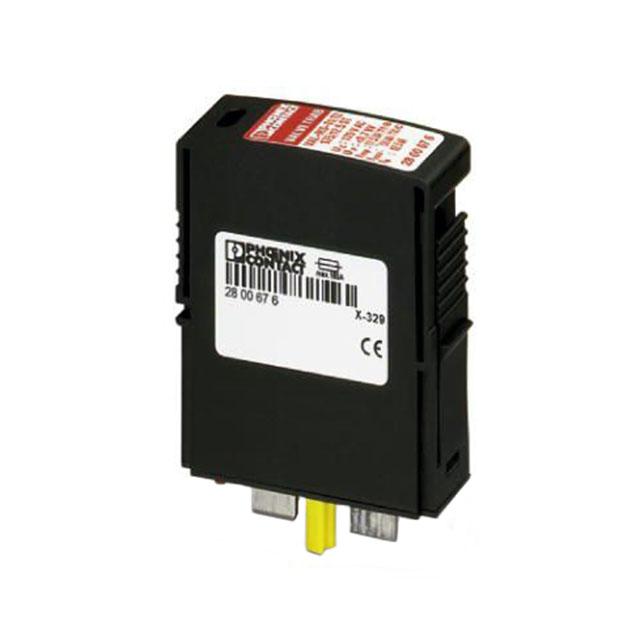

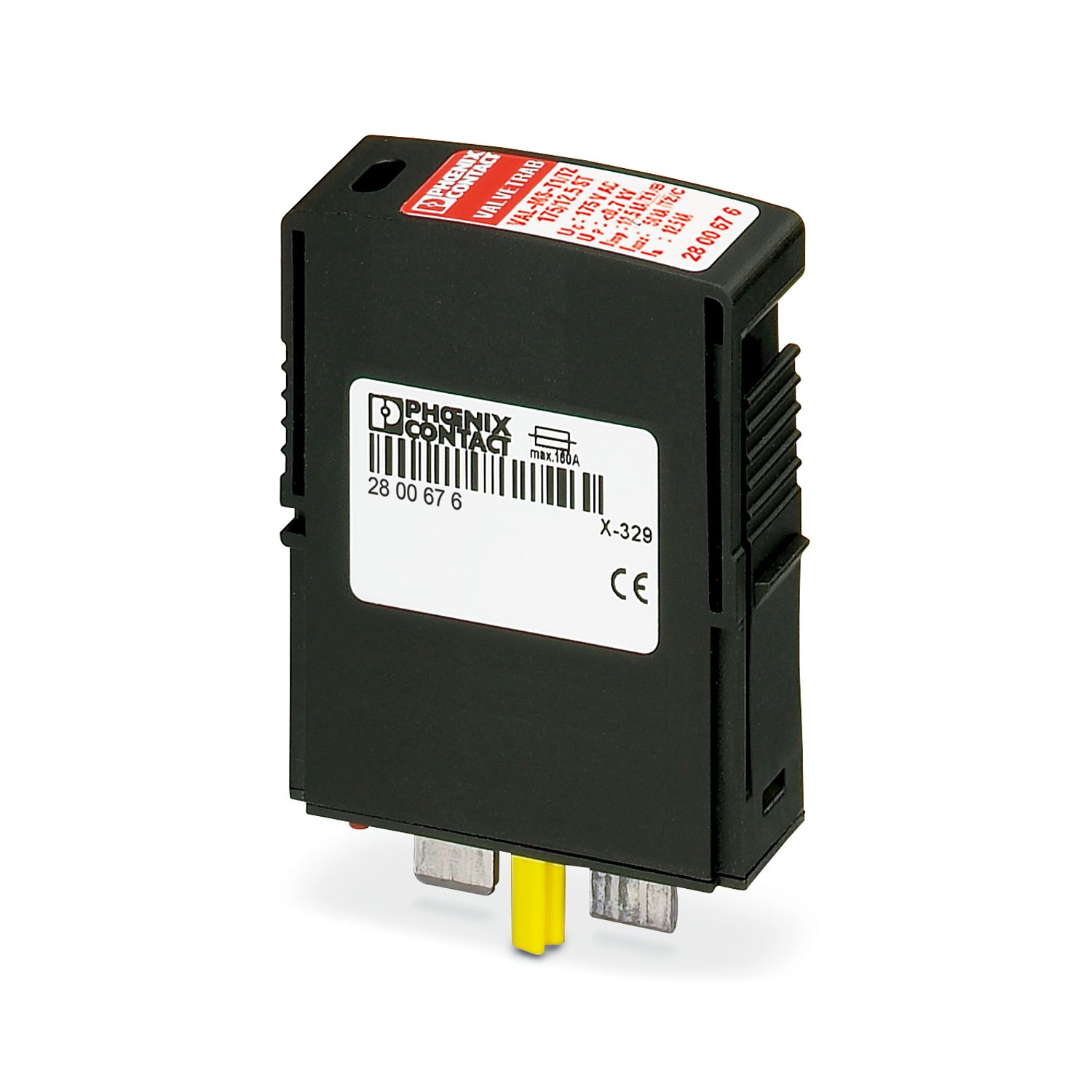

Product Type:
Surge Protection Plug
Maximum Operating Temperature:
80°C
Suppressor Type:
Type 1 Surge Protection Plug
Mount Type:
Base Mount
HTSUS:
8536.30.8000
Voltage - Continuous Operating (Max) (MCOV):
100VDC
Operating Temperature:
-40°C ~ 80°C
Approval Agency:
cUR, cURus, UR
Type:
Type 1
Form:
Module Only
Voltage - Protection Level (VP) (2416):
400 V
Current - Discharge (Nom) (8/20µS):
12.5 kA
Manufacturer:
Phoenix Contact
Moisture Sensitivity Level (MSL):
Not Applicable
standardLeadTime:
6 Weeks
Current - Short Circuit Rating (SCCR):
25 kA
Features:
-
Mounting Type:
Base Mount
Series:
VAL
Voltage - Protection Rating (VPR):
400 V
Packaging:
Bulk
ECCN:
EAR99
Number of Poles:
1
Current - Discharge (Max) (8/20µS):
65 kA
