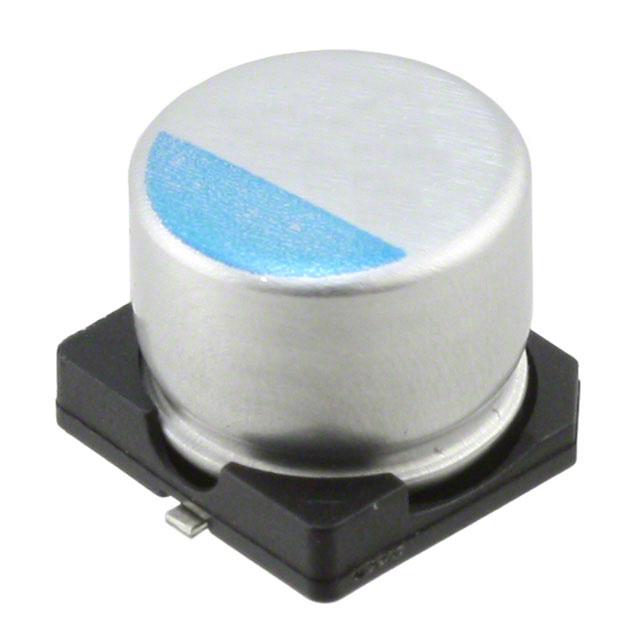

Nippon Chemi-Con 470μF Surface Mount Polymer Capacitor, 6.3V dc
Product Information
Dimensions:
8 (Dia) x 7.7mm
Dissipation Factor:
12%
Capacitance:
470µF
Tolerance:
±20%
Dielectric Material Family:
Aluminium
Maximum Operating Temperature:
+105°C
Length:
7.7mm
Equivalent Series Resistance:
13mΩ
Leakage Current:
592 μA
Lead Pitch:
3.1mm
Polarised:
Polar
Diameter:
8mm
Ripple Current:
3950mArms
Mounting Type:
Surface Mount
Series:
NP-CAP PXE
Height:
7.7mm
Voltage:
6.3V dc
Minimum Operating Temperature:
-55°C
Electrolyte Type:
Solid
Lifetime:
2000h
Technology:
Polymer
Ratings:
-
HTSUS:
8532.22.0020
RoHS Status:
ROHS3 Compliant
ESR (Equivalent Series Resistance):
13mOhm
Capacitance:
470 µF
Operating Temperature:
-55°C ~ 105°C
Package / Case:
Radial, Can - SMD
Tolerance:
±20%
Voltage - Rated:
6.3 V
Height - Seated (Max):
0.303" (7.70mm)
Type:
Polymer
REACH Status:
REACH Unaffected
edacadModel:
APXE6R3ARA471MH80G Models
Applications:
General Purpose
Surface Mount Land Size:
0.327" L x 0.327" W (8.30mm x 8.30mm)
edacadModelUrl:
/en/models/1826657
Ripple Current @ High Frequency:
3.95 A @ 100 kHz
Package:
Tape & Reel (TR)
Size / Dimension:
0.315" Dia (8.00mm)
standardLeadTime:
22 Weeks
Mounting Type:
Surface Mount
Series:
NPCAP™-PXE
Lifetime @ Temp.:
2000 Hrs @ 105°C
Lead Spacing:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search APXE6R3ARA471MH80G on website for other similar products.
We accept all major payment methods for all products including ET24730957. Please check your shopping cart at the time of order.
You can order CHEMI-CON brand products with APXE6R3ARA471MH80G directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Polymer Capacitors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nippon Chemi-Con 470μF Surface Mount Polymer Capacitor, 6.3V dc. You can also check on our website or by contacting our customer support team for further order details on Nippon Chemi-Con 470μF Surface Mount Polymer Capacitor, 6.3V dc.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET24730957 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "CHEMI-CON" products on our website by using Enrgtech's Unique Manufacturing Part Number ET24730957.
Yes. We ship APXE6R3ARA471MH80G Internationally to many countries around the world.
This is Nippon Chemi-Con 470μF Surface Mount Polymer Capacitor 6.3V dc manufactured by CHEMI-CON. The manufacturer part number is APXE6R3ARA471MH80G. The given dimensions of the product include 8 (dia) x 7.7mm. It provides a dissipation factor of 12%. It provides a 470µf of capacitance value. It features ±20% of tolerance value. Whereas its dielectric material family is aluminium. It has a maximum operating temperature of +105°c. Its accurate length is 7.7mm. It has 13mω equivalent series resistance. It harbors 592 μa of leakage current. The lead features 3.1mm pitch. Furthermore, it is polar polarised. Its diameter is 8mm. Furthermore, 3950marms is the ripple current. The product is available in surface mount configuration. The product np-cap pxe, is a highly preferred choice for users. In addition, the height is 7.7mm. It carries a 6.3v dc of voltage. Whereas, the minimum operating temperature of the product is -55°c. It is a solid electrolyte. It provides a long-lasting service for a period of 2000h. This product use polymer technology. It is assigned with possible HTSUS value of 8532.22.0020. The product is rohs3 compliant. It carries ESR (Equivalent Series Resistance) of 13mohm. It provides a 470 µf of capacitance value. The product has -55°c ~ 105°c operating temperature range. Moreover, the product comes in radial, can - smd. It also exhibits voltage rating of 6.3 v. It has the maximum seated height of 0.303" (7.70mm). It comes in polymer configuration. In addition, it is reach unaffected. The product is widely employed in general purpose. It has typical surface-mount land sizes, such as 0.327" l x 0.327" w (8.30mm x 8.30mm). Additionally, it carries a ripple current and high frequency of 3.95 a @ 100 khz. It is shipped in tape & reel (tr) package . The product's diameters include 0.315" dia (8.00mm). It has a long 22 weeks standard lead time. The product npcap™-pxe, is a highly preferred choice for users. This product offers longer life span for 2000 hrs @ 105°c. The product is designated with the ear99 code number.
