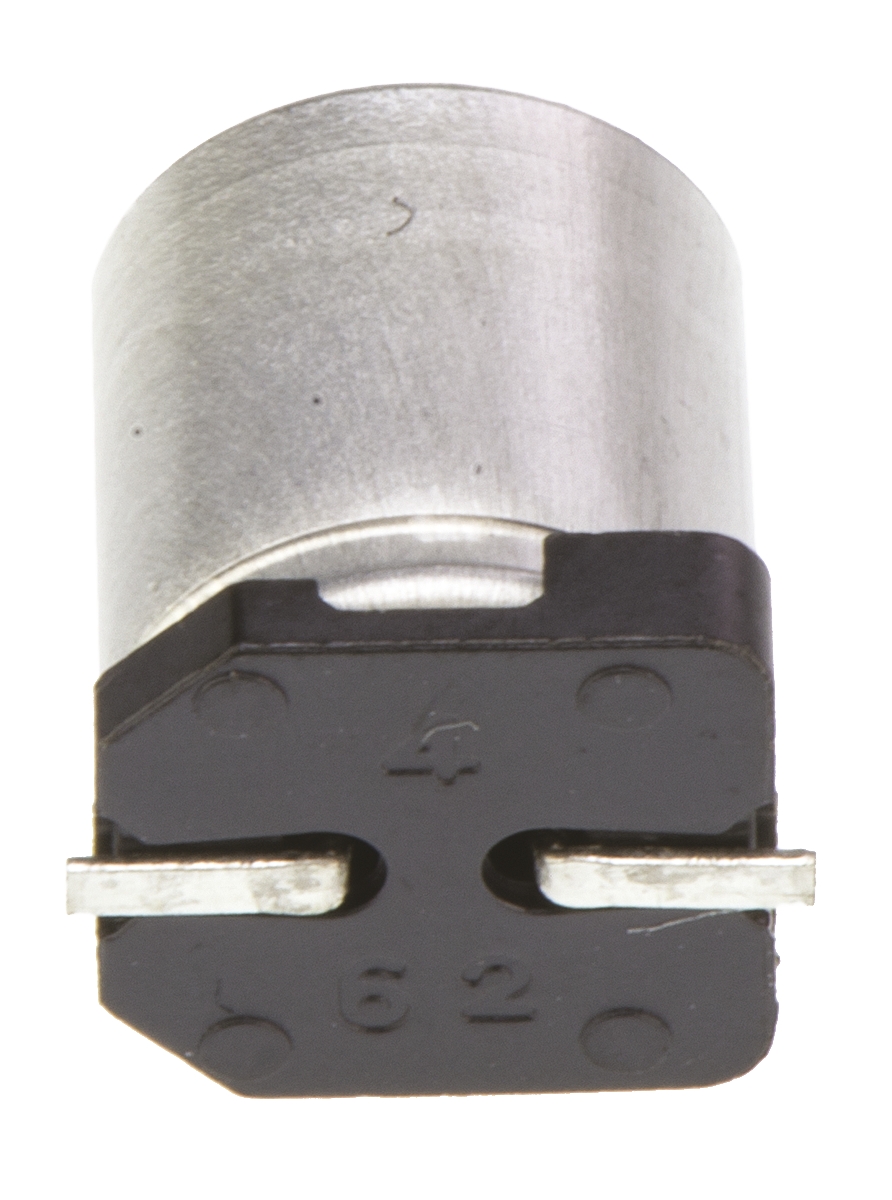

This is Aluminium Electrolytic Capacitor 100μF 25V dc 6.3mm D8 ZC Series Surface Mount Hybrid ±20% 6.3 x 7.7mm manufactured by Panasonic. The manufacturer part number is EEHZC1E101XP. Its diameter is 6.3mm. Furthermore, 1400marms is the ripple current. Furthermore, it is polar polarised. The given dimensions of the product include 6.3 (dia) x 7.7mm. The product is available in surface mount configuration. The product zc, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -55°c. It has 30mω equivalent series resistance. It provides a dissipation factor of 14%. In addition, the height is 7.7mm. It provides a 100µf of capacitance value. It carries a 25v dc of voltage. It harbors 0.01 cv or 3 μa (after 2 min) of leakage current. It provides a long-lasting service for a period of 4000h. The lead features 1.8mm pitch. It has a maximum operating temperature of +125°c. It features ±20% of tolerance value. The product complies with automotive standard - aec-q200. This product use hybrid technology.
For more information please check the datasheets.
