Festo HV Series Bracket

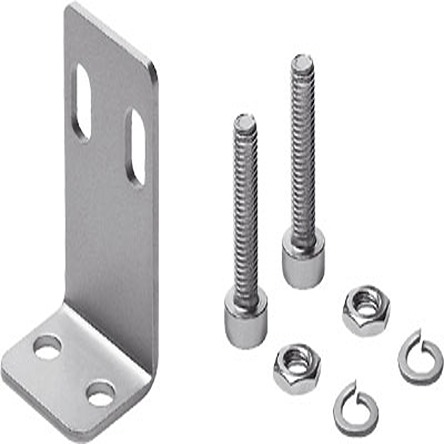

The Festo HV-1/8 bracket is designed to support HV series hand valves during installation. It provides a stable mounting point for a valve when it needs to be mounted on a panel, frame, or machine surface rather than left inline. This makes the valve effortless to operate and reduces stress on connected pneumatic tubing. It is a small yet essential accessory that helps keep manual valves correctly positioned in pneumatic systems.

What Benefits Does It Offer to Users?

This bracket is designed explicitly for Festo HV series valves with a 1/8 connection. Its shape and mounting points are matched to the valve body, so the valve sits firmly and remains stationary during operation.

• Holds the valve in a fixed position.
• Prevents rotation or shifting during use.
• Keeps tubing aligned and supported.

Solid Mounting Bracket for Secure Valve Installation

Using a proper mounting bracket improves overall system layout. Instead of relying on pipes or hoses to support the valve, the bracket takes the load. This helps reduce wear on fittings and lowers the risk of leaks caused by vibration or repeated manual operation. It also makes the valve more accessible, especially in control panels or compact machines where space and layout matter.

Typical Uses of the Festo 9635 Bracket

Anywhere a hand valve needs to stay fixed and easy to reach, this bracket is usually the cleanest solution.

• Industrial pneumatic control panels
• Machine air control points
• Manual shut-off or isolation stations
• Training rigs and test benches

For more information please check the datasheets.
