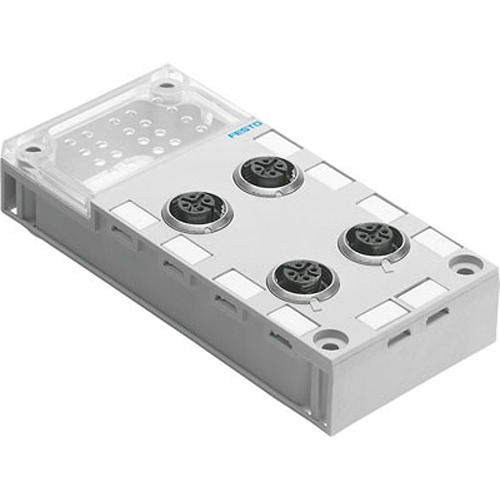

Festo CPX-AB-4-M12X2-5POL-R, Manifold Block

The Festo CPX-AB-4-M12X2-5POL-R is a manifold block used in CPX terminal systems for industrial automation. It serves as a connection and distribution point for signals within a valve manifold, enabling different modules to communicate reliably. This block is typically installed where space is limited, but stable, organised wiring is required. It is designed for control cabinets, machine frames, and automation panels where consistency and clean installation matter more than appearance.

How It Benefits Users

This manifold block uses M12 connectors with a 5-pin configuration, providing secure, standardised connections. The layout supports straightforward wiring and reduces the risk of loose or incorrect connections during installation or maintenance.

What it offers in practice:

• M12X2 connector format.
• 5-pole connection design.
• Compact form factor for tight spaces.
• Rigid housing ensures the block stays fixed even in environments.

Application Versatility of the Festo CPX-AB-4-M12X2-5POL-R, Manifold Block

This manifold block is typically used in a CPX valve terminal assembly. Technicians use it to keep installations clean, organised, and easy to troubleshoot.

• Pneumatic automation systems
• Packaging and assembly machines
• Conveyor and material handling equipment
• Factory automation panels

For more information please check the datasheets.
