SMC Side Bracket

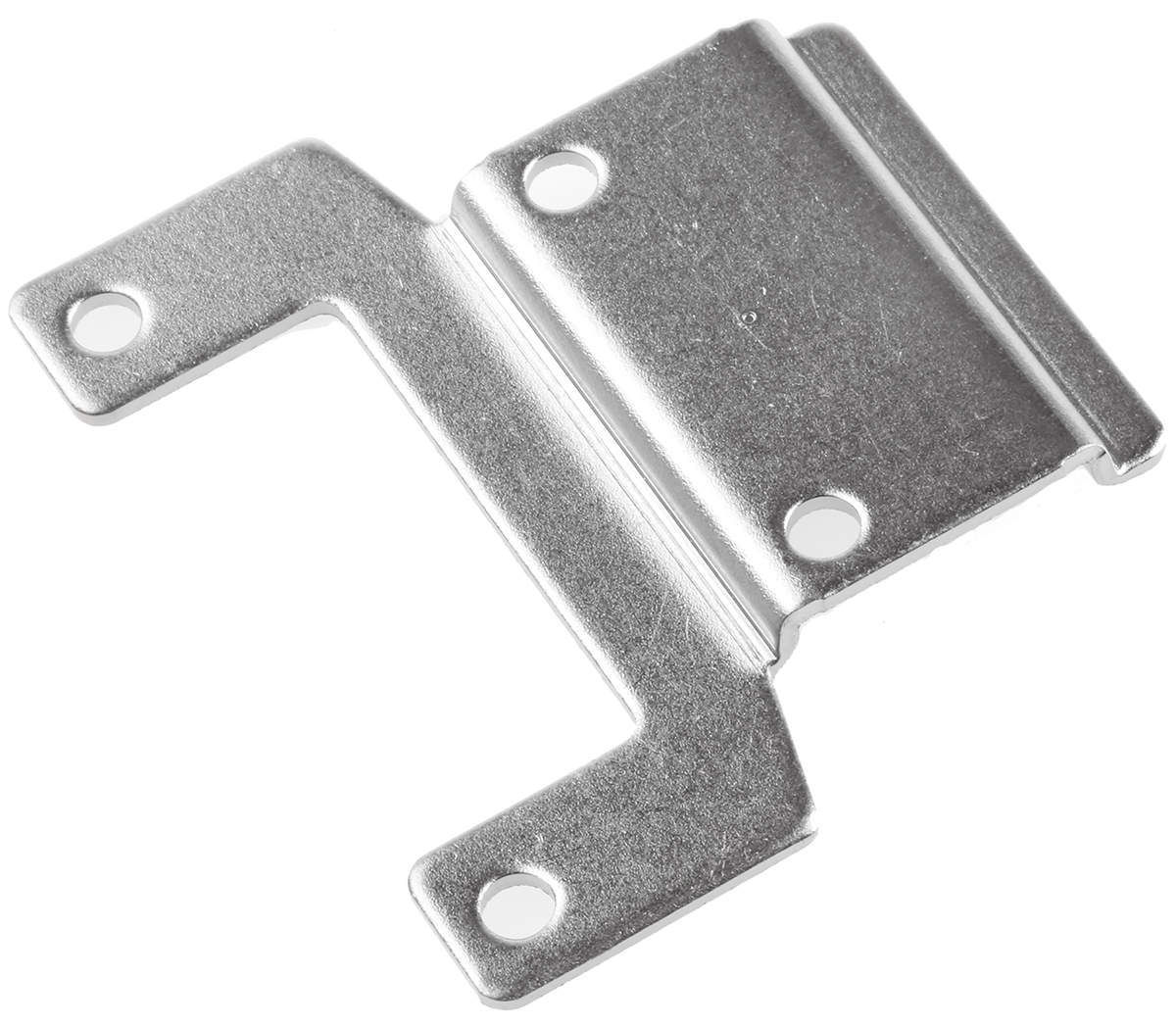

The SMC SX5000‑16‑1A is a precision‑engineered side‑mount bracket designed for SMC’s SY5000 series 4/5 port solenoid valves. Supporting compact, efficient valve installations, it enables manifold or sub‑plate mounting with improved service access and optimised space. This accessory facilitates streamlined piping layouts by aligning solenoid assemblies on the same side, opposite the ports, promoting cleaner installations and faster maintenance.

Standout Features and Benefits of Buying the SMC Side Bracket

• Compatible with SY5000 series 4/5‑port solenoid valves for flexible installation.
• Side‑mount configuration allows solenoid assemblies to be positioned opposite the ports, reducing piping complexity.
• Lightweight bracket design (approx. 0.011 kg) minimises added mass on the valve assembly.
• Precise mounting features maintain alignment and ensure robust performance under vibration.
• Enables space‑saving layouts in automation panels and machine assemblies.
• Easy installation and servicing support faster operational uptime.

Built for Efficient Pneumatic System Integration

This bracket is developed to complement the SY5000 valve family by enabling optimal mounting and accessibility in industrial control systems. The durable construction ensures long‑term reliability in demanding automation environments.

Applicable Areas of the Bracket

• Panel‑mounted pneumatic valve assemblies in machine tools and production lines.
• Manifold and sub‑plate installations.
• Pneumatic automation systems in automotive manufacturing, packaging machines, and material handling.
• OEM installations where a minimised footprint and simplified tubing layout are key.
• Maintenance‑focused systems.

For more information please check the datasheets.
