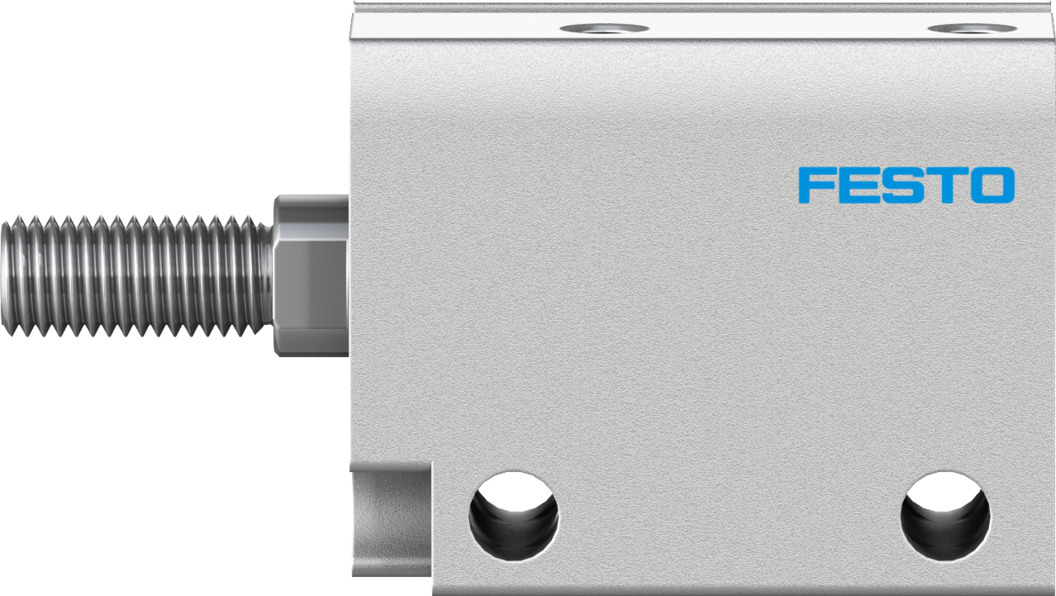

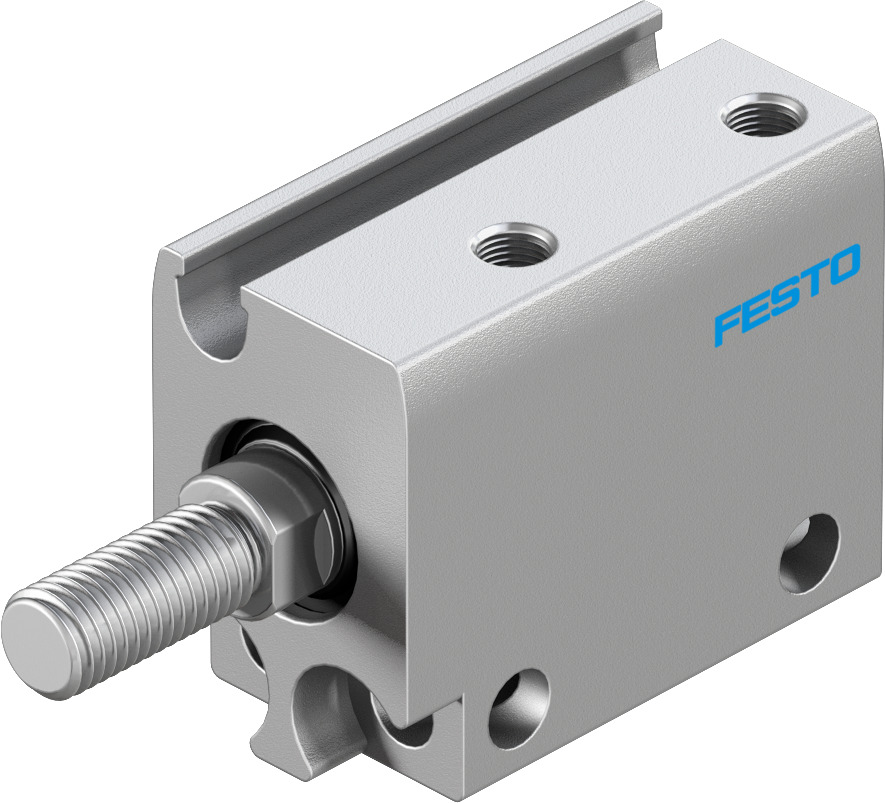

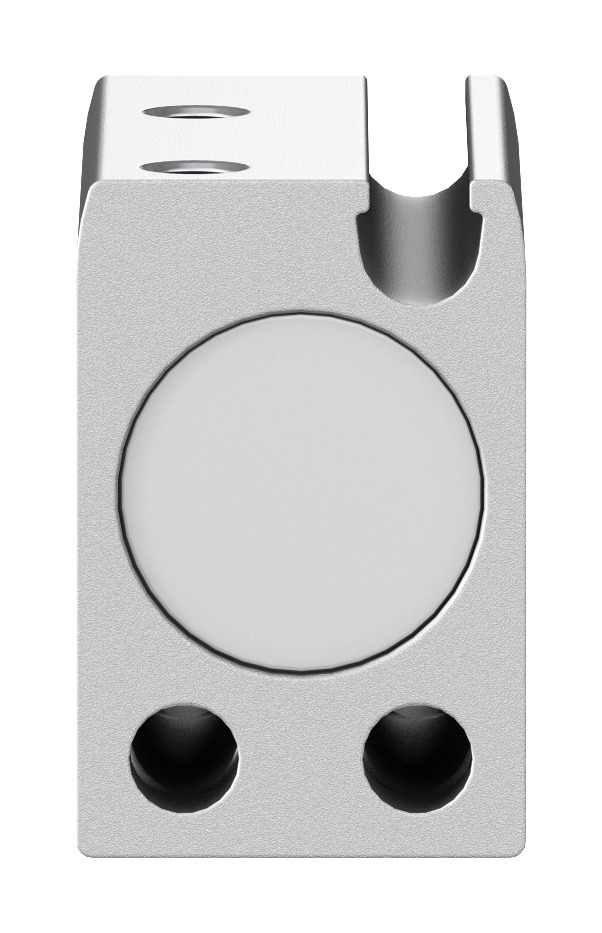

Festo Pneumatic Compact Cylinder 10mm Bore, 10mm Stroke, ADN Series, Double Acting

ADN-S-10-10-A Festo Pneumatic Compact Cylinder 10mm Bore, 10mm Stroke, ADN Series, Double Acting
ADN-S-10-10-A
ADN-S-10-10-A
ET20490053
ET20490053
ADN-S-10-10-A Festo Pneumatic Compact Cylinder 10mm Bore, 10mm Stroke, ADN Series, Double Acting
Festo

Product Information

Piston Rod Gender:
Male
Stroke Length:
10mm
Weight:
19g
Series:
ADN
Bore Size:
10 mm
Model Number:
8080588
Maximum Operating Pressure:
8 bar
Action Type:
Double Acting
Body Material:
Wrought Aluminium Alloy
Standards/Approvals:
Conforms to RoHS, ISO8573-1:2010 (7:4:4)
Minimum Operating Temperature:
-10°C
Piston Rod Thread Size:
M3
Product Type:
Pneumatic Compact Cylinder
Maximum Operating Temperature:
60°C
Rod Type:
Single-Ended Piston Rod
Mount Type:
Through Hole
RoHs Compliant
Checking for live stock

The Festo ADN series compact cylinder has a double-acting actuator with position sensing and external piston rod thread to move in any position. It has a pneumatic connection M3 with male thread. Its stoke diameter is 10mm with bore size 10mm which is also assembled in any position. Ambient temperature -10 to 60 °C Used wrought aluminium alloy material

pdf icon
Catalogue - Compact Cylinder, Double-Acting ADN-S(Technical Reference)
pdf icon
Datasheet - ADN-S-10-10-A(Technical Reference)
