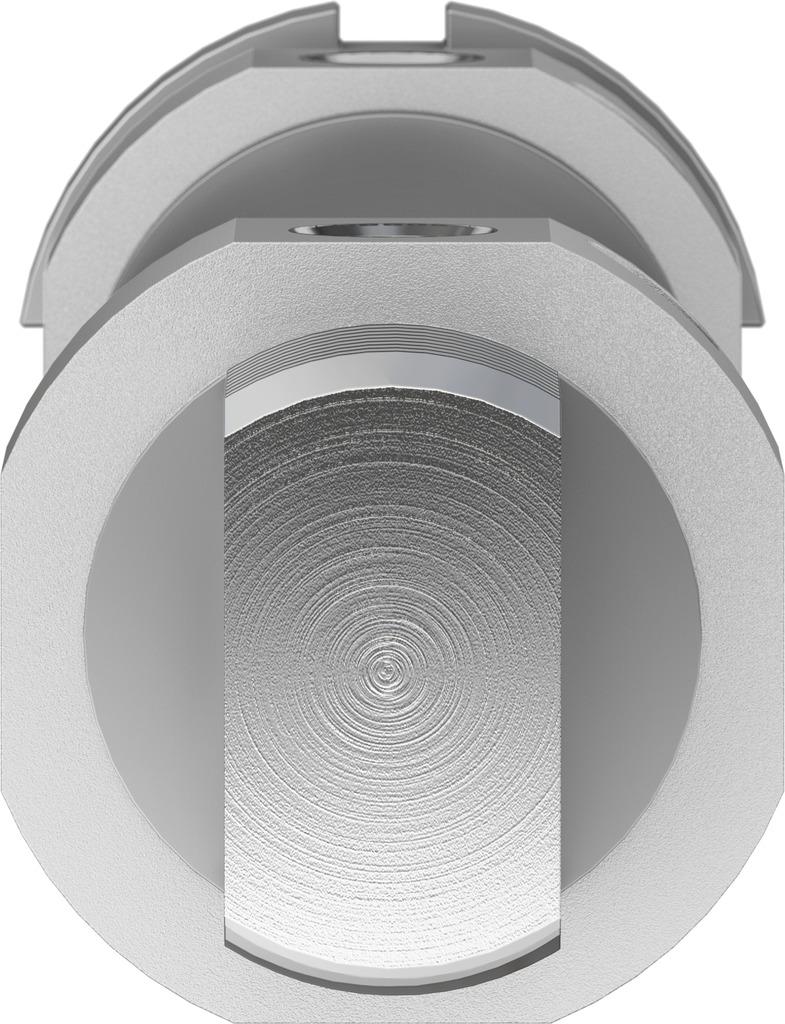

Festo Pneumatic Roundline Cylinder 32mm Bore, 100mm Stroke, DSNU Series, Double Acting

Enrgtech Part No: ET20281949
|
Manufacturer Part No:
DSNU-32-100-PPV-A
|
Manufacturer: Festo

DSNU-32-100-PPV-A Festo Pneumatic Roundline Cylinder 32mm Bore, 100mm Stroke, DSNU Series, Double Acting

Product Information

Cushioning Type:

Pneumatic Adjustable

VDMA Standard:

VDMA24364-B1/B2-L

Weight:

524g

Piston Rod Thread Gender:

Male

Model Number p:

196024

Pneumatic Connection:

G 1/8

Maximum Operating Pressure:

10 bar

Stroke:

100mm

Manufacturer Series:

DSNU

Minimum Operating Temperature:

-20°C

Action:

Double

Bore:

32mm

Checking for live stock

The Festo DSNU-32-100-PPV-A is a roundline pneumatic cylinder used for basic linear movement in industrial automation. It has a 32 mm bore and a 100 mm stroke, making it suitable for pushing, pulling, lifting, and positioning tasks that require controlled motion. Being double-acting, air pressure is used for movement in both directions, which gives better control and repeatability during operation. This cylinder is typically installed in machines where space is limited but reliable motion is still needed.

Standout Features and Benefits of the Festo 196024 Pneumatic Roundline Cylinder 10bar

The DSNU series complies with ISO roundline cylinder standards, making this model easy to integrate into existing systems. Its cylindrical body allows flexible mounting options and straightforward alignment during installation.

32 mm bore for moderate force output.
100 mm stroke for short linear travel.
Round aluminium body.
Threaded piston rod for easy connection.
Smoother piston movement.
Less wear on seals and mounts.
Reduced noise during operation.

Controlled Motion with End-Position Cushioning

The PPV feature provides adjustable pneumatic cushioning at both end positions. This helps slow down the piston before it reaches the end of the stroke, reducing impact, vibration, and mechanical stress on the system.

Typical Uses in Industrial Systems

The Festo DSNU-32-100-PPV-A is typically used in:

Assembly and packaging machines
Conveyor systems
Pick-and-place mechanisms
Clamping and positioning units
Light material handling setups
