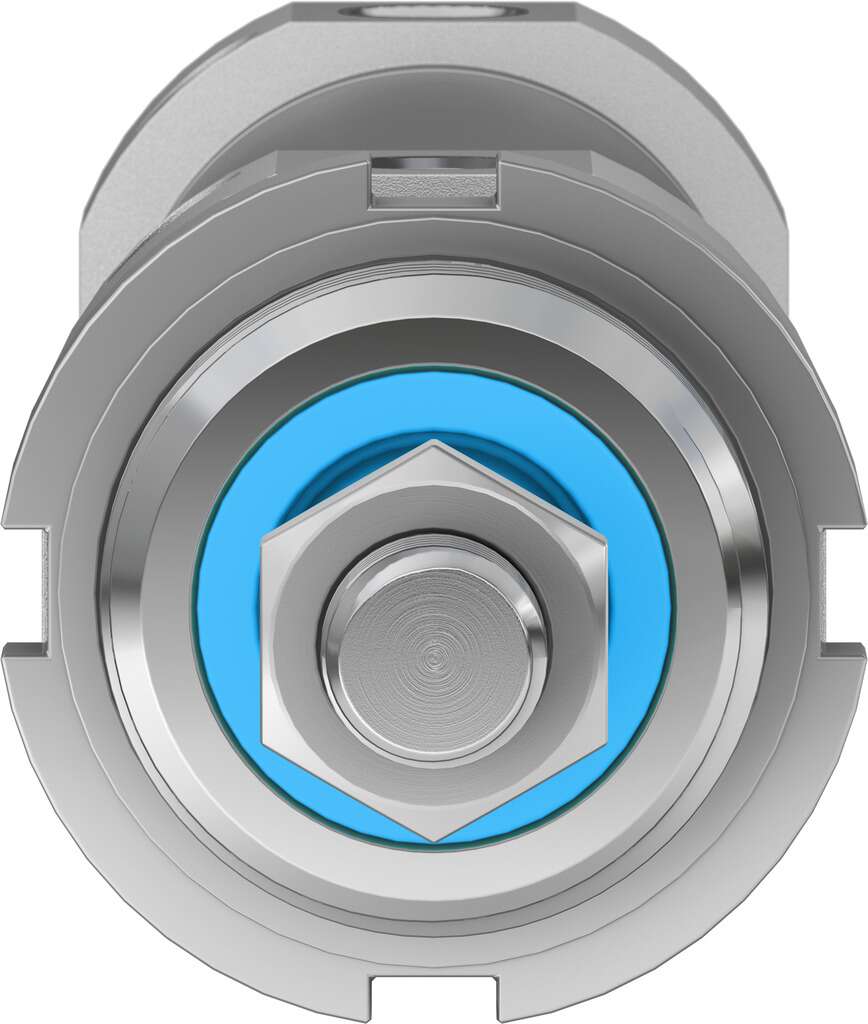

Festo Pneumatic Roundline Cylinder 32mm Bore, 80mm Stroke, DSNU Series, Double Acting

Enrgtech Part No: ET20010698
|
Manufacturer Part No:
DSNU-32-80-PPV-A
|
Manufacturer: Festo

DSNU-32-80-PPV-A Festo Pneumatic Roundline Cylinder 32mm Bore, 80mm Stroke, DSNU Series, Double Acting

Product Information

Diameter:

38mm

Cushioning Type:

Pneumatic Cushioning

Dimensions:

38 (Dia.) x 231.5mm

Weight:

493g

Piston Rod Thread Gender:

Male

Model Number p:

196023

Length:

231.5mm

Pneumatic Connection:

G 1/8

VDMA Standard:

VDMA24364-B1/B2-L

Stroke:

80mm

Manufacturer Series:

DSNU

ISO Standard:

ISO8573-1:2010

Checking for live stock

The Festo DSNU-32-80-PPV-A is a roundline pneumatic cylinder used for basic linear movement in automated systems. It has a 32 mm bore and an 80 mm stroke, making it suitable for pushing, pulling, lifting, or positioning tasks that require controlled air-driven motion. This is a double-acting cylinder, so air pressure is used for movement in both directions.

Crucial Features and Benefits of the Festo 196023 Pneumatic Roundline Cylinder

This cylinder belongs to the DSNU series, known for its compact, round body and stable construction. The stainless-steel tube and solid end caps allow it to operate reliably in industrial environments without frequent adjustment.

32 mm bore for moderate force output.
80 mm stroke for short to medium travel.
Roundline body for compact installations.
Fits easily into standard machine frames, conveyors, and workstations.

Controlled Movement with Adjustable Cushioning

The PPV cushioning system helps slow the piston at the end of each stroke. This reduces impact, noise, and wear during continuous operation. Cushioning can be adjusted to match the speed and load of the application, helping protect both the cylinder and the connected machine parts. This makes the cylinder suitable for systems that run repeatedly over long periods.

Broad Range Application

It is used where simple, repeatable linear motion is required without unnecessary complexity.

Packaging and assembly machines
Pick-and-place systems
Light material handling equipment
Industrial automation and production lines
