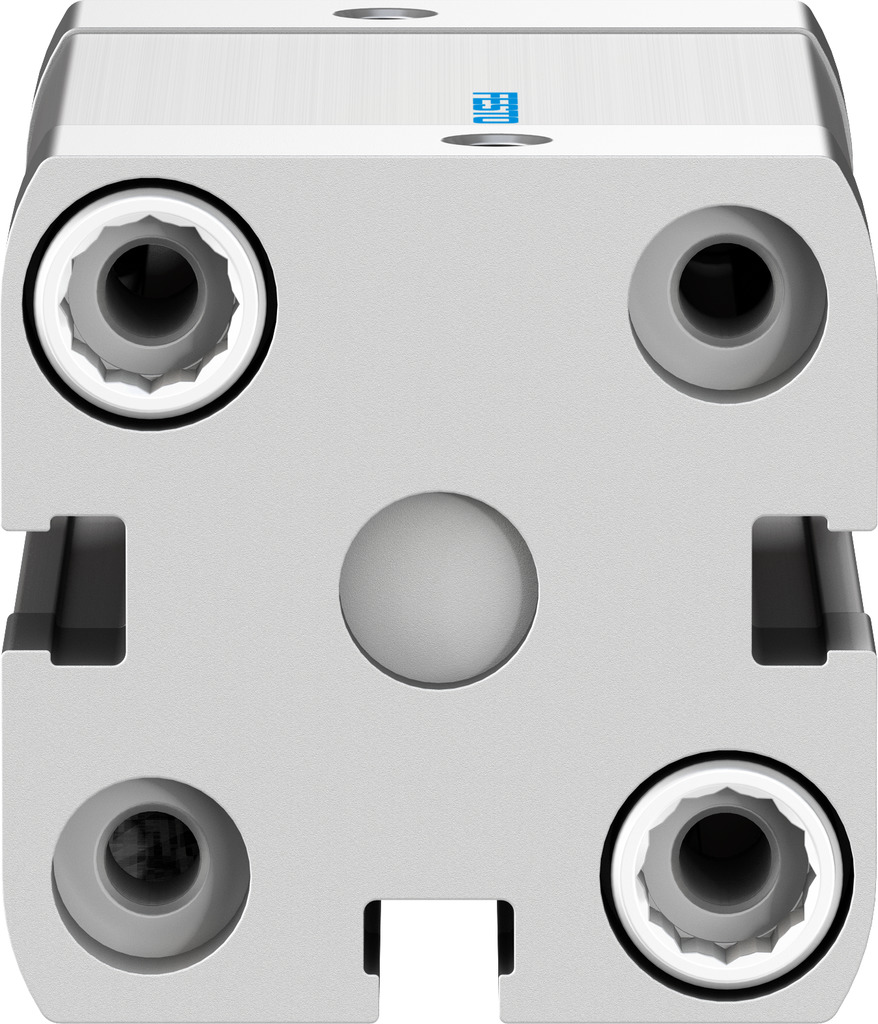

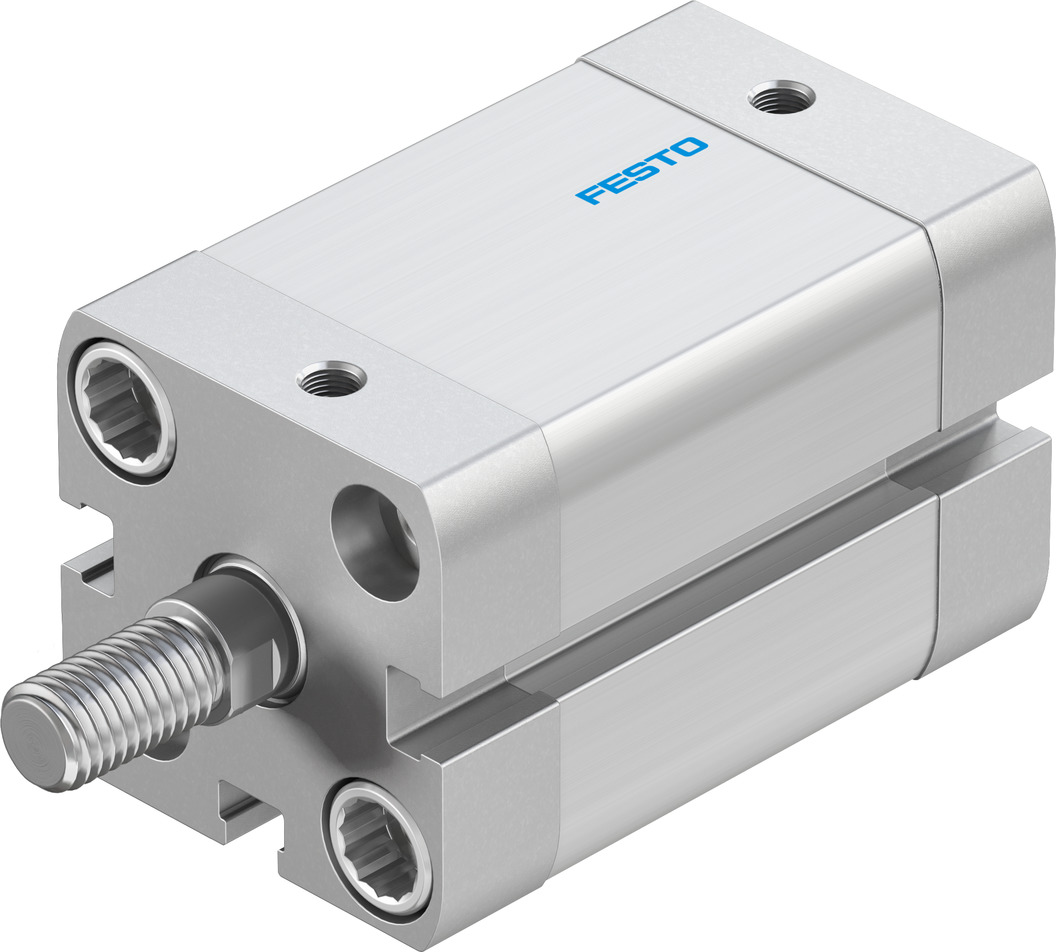

Festo Double Action Pneumatic Cylinder 25mm Bore, 25mm stroke

Enrgtech Part No: ET16899247
|
Manufacturer Part No:
ADN-25-25-A-P-A
|
Manufacturer: Festo

ADN-25-25-A-P-A Festo Double Action Pneumatic Cylinder 25mm Bore, 25mm stroke

Product Information

Cushioning Type:

Elastic

Stroke Length:

25mm

Weight:

246g

Action Type:

Double Acting

Series:

ADN

Bore Size:

25 mm

Body Material:

Aluminium

Model Number:

536255

Height:

39.5mm

Width:

39.5 mm

Length:

69.5mm

Maximum Operating Pressure:

10 bar

Checking for live stock

The Festo ADN-25-25-A-P-A is a double-acting pneumatic compact cylinder designed for applications where space is limited but controlled linear motion is still required. With a 25 mm bore and a 25 mm stroke, it delivers short, precise movement without needing an extended installation depth. This type of cylinder is typically used in automated machinery where components must move in and out repeatedly, reliably, and with consistent force.

Standout Features and Benefits of the Festo 536255 Pneumatic Cylinder

Being double-acting, the piston moves in both directions using compressed air. This provides better control than spring-return cylinders, especially in automation systems where timing and repeatability matter.

Parts need to be positioned, pushed, or clamped.
Movements are short but frequent.
Space inside the machine frame is limited.
Compact body for confined installations.
25 mm bore for balanced force output.
Short 25 mm stroke for precise movement.
Designed for continuous industrial use.

Build and Mechanical Design

The ADN series features a rigid, compact housing that keeps the cylinder stable during operation. The piston rod is guided to reduce side loads, helping maintain smooth motion and prolong service life. The mounting options make it easy to integrate into standard pneumatic systems.

Broad Range Application

This cylinder is typically found in:

Packaging and labelling machines
Pick-and-place units
Assembly and inspection stations
Light clamping or ejector mechanisms

Datasheet(Technical Reference)

ADN-25-25-A-P-A Specification Sheet(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)

Brochure - The Future of Standard Cylinders(Technical Reference)
