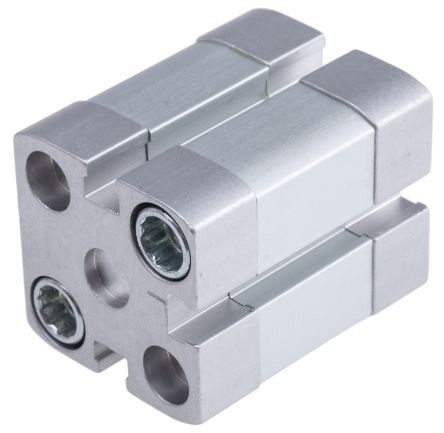

Festo Double Action Pneumatic Compact Cylinder 20mm Bore, 5mm stroke

Enrgtech Part No: ET16848187
|
Manufacturer Part No:
ADN-20-5-A-P-A
|
Manufacturer: Festo

ADN-20-5-A-P-A Festo Double Action Pneumatic Compact Cylinder 20mm Bore, 5mm stroke

Product Information

Cushioning Type:

Air Cushioning, Cushioning Rings

Stroke Length:

5mm

Maximum Operating Pressure:

10 bar

Action Type:

Double Acting

Series:

ADN

Bore Size:

20 mm

Body Material:

Aluminium

Model Number:

536234

Height:

35.5mm

Width:

35.5 mm

Length:

47.5mm

Standards/Approvals:

ISO 21287, RoHS

Checking for live stock

The Festo ADN-20-5-A-P-A is a double-acting pneumatic compact cylinder designed for applications where space is limited but controlled linear motion is still required. With a 20 mm bore and a short 5 mm stroke, this cylinder is typically utilised for precise positioning, clamping, or short push-pull movements in automated systems.

Special Features of the Festo 536234 Double-Action Pneumatic Cylinder

This cylinder follows a compact, rectangular profile that fits easily into tight assemblies. The double-acting design allows controlled movement in both directions with compressed air, helping maintain consistent motion and positioning during operation.

20 mm bore for moderate force output.
5 mm stroke for short, controlled movement.
Compact body for space-restricted setups.

Wide Application Range

The ADN series is widely used in industrial automation because it performs consistently under repeated cycles. This model is suited for applications where accuracy and repeatability matter more than travel length.

Small part clamping
Ejector or stop mechanisms
Positioning tasks in assembly lines
Pick-and-place support movements

Datasheet(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)

ADN-20-5-A-P-A Specification Sheet(Technical Reference)
