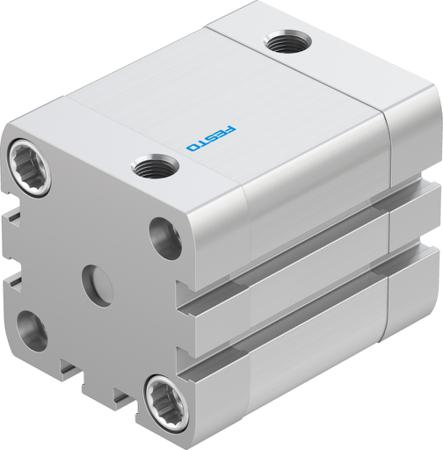

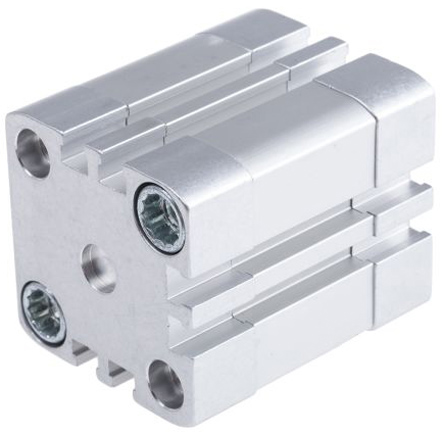

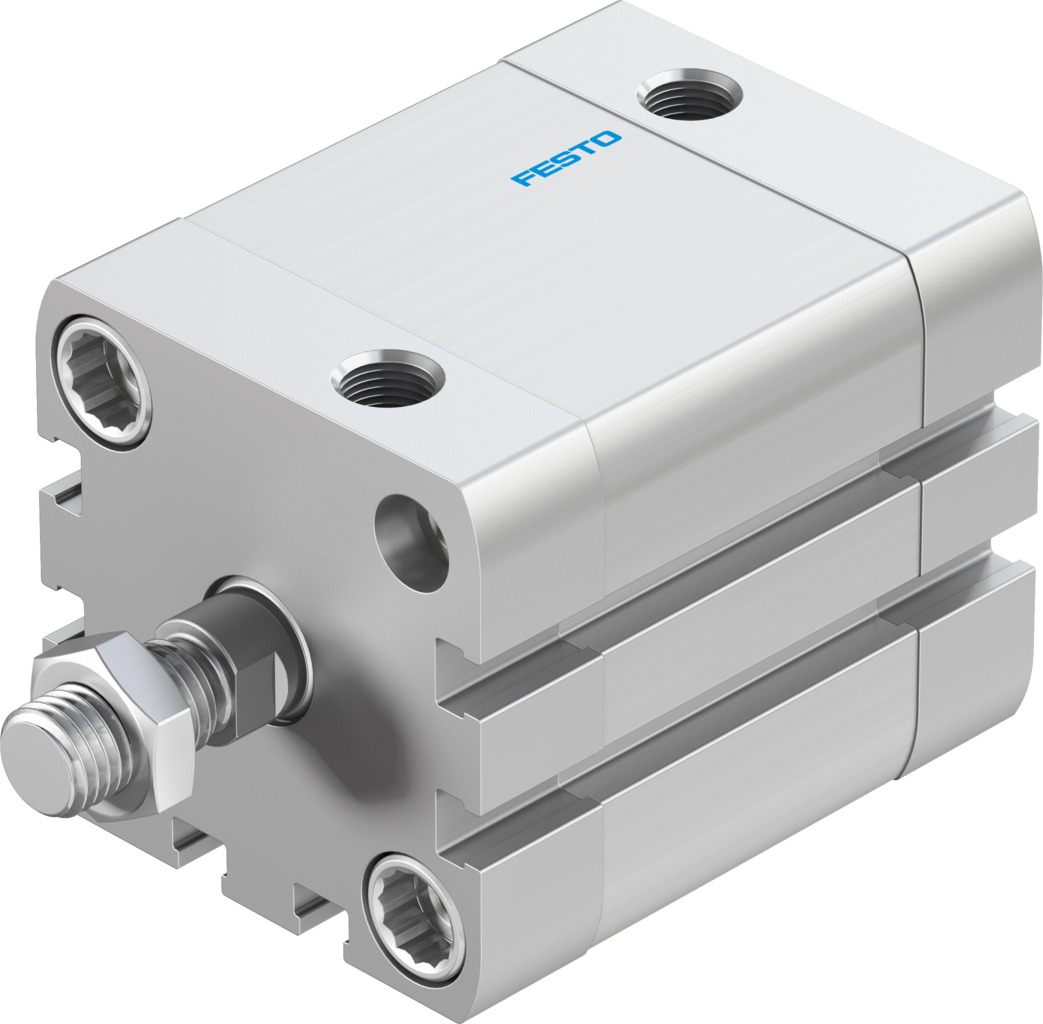

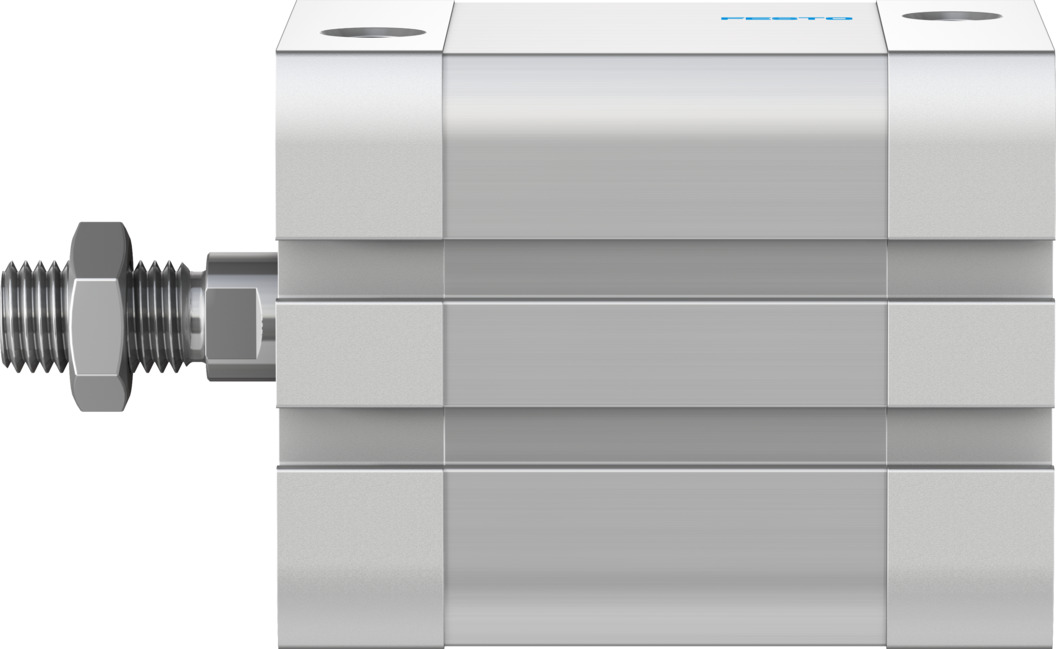

Festo ADN-40-25-A-P-A, Double Action Pneumatic Compact Cylinder 40mm Bore, 25mm stroke

Enrgtech Part No: ET16814982
|
Manufacturer Part No:
ADN-40-25-A-P-A
|
Manufacturer: Festo

ADN-40-25-A-P-A Festo , Double Action Pneumatic Compact Cylinder 40mm Bore, 25mm stroke

Product Information

Cushioning Type:

Air Cushioning, Cushioning Rings

Piston Rod Thread Size:

1/8 in G

Stroke Length:

25mm

Maximum Operating Pressure:

10 bar

Action Type:

Double Acting

Series:

ADN

Bore Size:

40 mm

Body Material:

Aluminium

Model Number:

536293

Height:

54.5mm

Width:

54.5 mm

Length:

76.1mm

Checking for live stock

The Festo ADN-40-25-A-P-A is a double-acting pneumatic compact cylinder designed for applications where space is limited but reliable linear movement is required. With a 40 mm bore and a 25 mm stroke, it delivers controlled push-and-pull motion using compressed air, making it suitable for automation systems that require short, precise travel. This cylinder is commonly used where standard ISO cylinders are too long or bulky. It fits easily into compact machinery without sacrificing performance.

Notable Advantages of Choosing the Festo 536293 Double-Action Pneumatic Compact Cylinder

The ADN series is known for its rigid construction and stable operation. The compact body reduces bending and vibration, which helps maintain alignment over long operating cycles. It is built for continuous industrial use rather than occasional motion.

Compact aluminium housing.
Double-acting operation for controlled motion in both directions.
Integrated piston design for stable movement.
Designed for mounting in tight spaces.
Suitable for machines that run repeatedly throughout the day.

Wide Application Range

With a 40 mm bore, this cylinder provides enough force for clamping, positioning, and light pressing tasks. The 25 mm stroke keeps movement short and controlled, which is ideal for fast cycles and precise positioning.

It is often used in:

Packaging machines
Assembly stations
Pick-and-place units
Conveyor stops and guides
General factory automation
