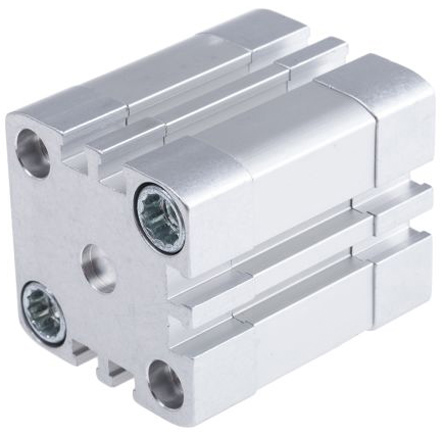

Festo Double Action Pneumatic Compact Cylinder 32mm Bore, 5mm stroke

Enrgtech Part No: ET16814978
|
Manufacturer Part No:
ADN-32-5-A-P-A
|
Manufacturer: Festo

ADN-32-5-A-P-A Festo Double Action Pneumatic Compact Cylinder 32mm Bore, 5mm stroke

Product Information

Piston Rod Gender:

Male

Piston Rod Thread Size:

1/8 in G

Width:

47 mm

Distrelec Product Id:

301-68-267

Better World Claim:

Repairable by the End User

Maximum Operating Pressure:

10 bar

Bore Size:

32 mm

Model Number:

536268

Product Type:

Pneumatic Cylinder

Maximum Operating Temperature:

80°C

Rod Type:

Single

Body Material:

Aluminium

Checking for live stock

The Festo ADN-32-5-A-P-A is a double-acting pneumatic cylinder designed for short-stroke motion in compact automation setups. With a 32 mm bore and a 5 mm stroke, it is typically used where space is limited, and precise, rather than long, movement is required. This type of cylinder is standard in assembly machines, clamping systems, and positioning tasks where repeatable motion matters.

What Sets the Festo 536268 Double-Action Pneumatic Cylinder Apart?

This cylinder delivers consistent force over a very short stroke, making it suitable for fast, accurate mechanical actions. The short travel reduces cycle time and helps minimise wear in high-repeat applications.

Double-acting operation for controlled motion.
Short stroke for fast response.
Stable force output from the 32 mm bore.
Works well in systems where timing and accuracy are more important.

Wide Application Range

It is often chosen when engineers need reliable linear motion in a small footprint.

Small clamping and holding mechanisms
Pick-and-place units
Packaging and labelling machines
Assembly and testing stations
Automation systems with limited installation space
