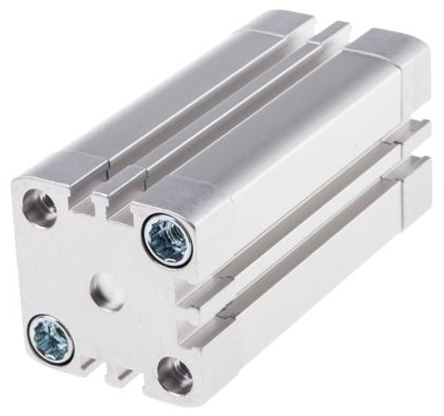

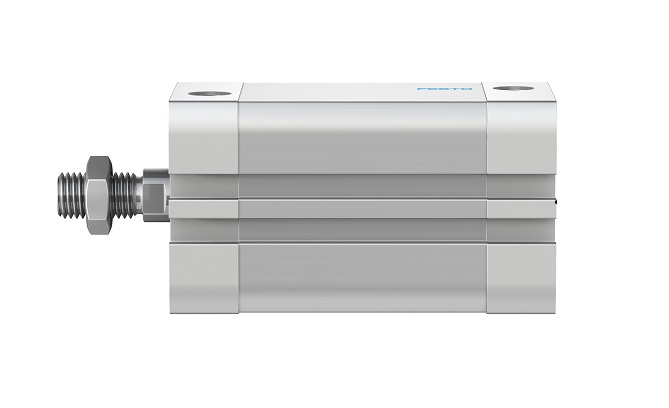

Festo Double Action Pneumatic Compact Cylinder 32mm Bore, 40mm stroke

Enrgtech Part No: ET16814976
|
Manufacturer Part No:
ADN-32-40-A-P-A
|
Manufacturer: Festo

ADN-32-40-A-P-A Festo Double Action Pneumatic Compact Cylinder 32mm Bore, 40mm stroke

Product Information

Cushioning Type:

Elastic

Stroke Length:

40mm

Maximum Operating Pressure:

10 bar

Action Type:

Double Acting

Series:

ADN

Bore Size:

32 mm

Body Material:

Aluminium

Model Number:

536274

Height:

47mm

Width:

47 mm

Length:

90mm

Standards/Approvals:

ISO 21287, RoHS

Checking for live stock

The Festo ADN-32-40-A-P-A is a double-acting compact pneumatic cylinder designed for applications where space is limited but controlled linear movement is still required. With a 32 mm bore and a 40 mm stroke, it delivers reliable push and pull motion for automation tasks that do not allow for long cylinder bodies. This type of cylinder is typically used in machinery where compact dimensions matter, such as assembly stations, packaging equipment, and small automation modules.

Salient Features and Benefits of the Festo 536274 Double-Action Pneumatic Compact Cylinder

The double-acting design allows air pressure to control both extension and retraction, giving predictable movement in both directions. This makes it suitable for repetitive motion tasks where accuracy and consistency are more important than speed.

Controlled forward and return movement.
Stable operation under continuous cycling.
Suitable for short, precise strokes.
32 mm piston diameter.
40 mm fixed stroke length.
Compact body for confined layouts.
Designed for standard pneumatic mounting options.
Performs best in systems with tight spaces.

Build and Mechanical Design

The compact housing reduces overall installation length without sacrificing strength. The cylinder body and piston are designed to handle regular industrial air pressure while maintaining smooth motion over time.

Typical Applications

It is often selected when designers need a short stroke with dependable movement and minimal installation space.

Automated assembly machines
Pick-and-place mechanisms
Clamping and positioning systems
Light material handling equipment

Datasheet(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)

ADN-32-40-A-P-A Specification Sheet(Technical Reference)
