Name: ADN-32-30-A-P-A, Festo
Brand: Festo
SKU: ET16814975
Price: 65.15 GBP
Availability: InStock

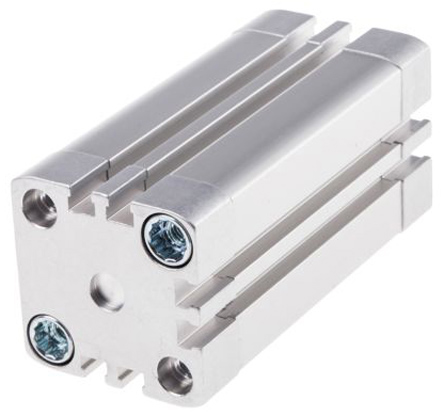

ADN-32-30-A-P-A Festo Double Action Pneumatic Compact Cylinder 32mm Bore, 30mm stroke

(0)

Product Information

Cushioning Type:

Air Cushioning, Cushioning Rings

Stroke Length:

30mm

Maximum Operating Pressure:

10 bar

Action Type:

Double Acting

Series:

ADN

Bore Size:

32 mm

Body Material:

Aluminium

Model Number:

536273

Height:

47mm

Width:

47 mm

Length:

80mm

Standards/Approvals:

ISO 21287, RoHS

Checking for live stock

The Festo ADN-32-30-A-P-A is a double-acting pneumatic compact cylinder designed for applications where space is limited but controlled linear motion is required. With a 32 mm bore and a 30 mm stroke, it is commonly used in automation systems that need short, repeatable movement without installing a full-size cylinder. This cylinder is built for practical machine use. It focuses on consistency, alignment, and long service life rather than oversized force or unnecessary features.

Unmatched Advantages of Buying the Festo 536273 Double-Action Pneumatic Compact Cylinder

The double-acting design allows air pressure to drive the piston in both directions. This provides better control over movement than single-acting cylinders, especially in automated sequences where timing and positioning matter.

Smooth forward and return motion.
Stable operation at short stroke lengths.
Reliable positioning in repetitive cycles.
Compact housing for dense machine layouts.
Standard mounting interfaces for easy replacement.
Rigid construction to reduce flex during operation.

Compact Pneumatic Cylinder for Short, Controlled Movement

The ADN series is known for its slim body and reduced installation length. This makes the cylinder easy to integrate into machines, assemblies, and tooling where mounting space is restricted.

Broad Range Application

It is often selected where short strokes and consistent force are more important than long travel distances.

Pick-and-place mechanisms
Clamping and holding fixtures
Assembly and packaging machines
Automated handling and positioning systems

Datasheet(Technical Reference)

Brochure - Less Is More(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)

ADN-32-30-A-P-A Specification Sheet(Technical Reference)
