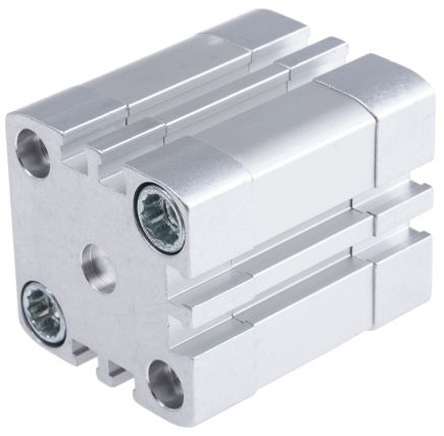

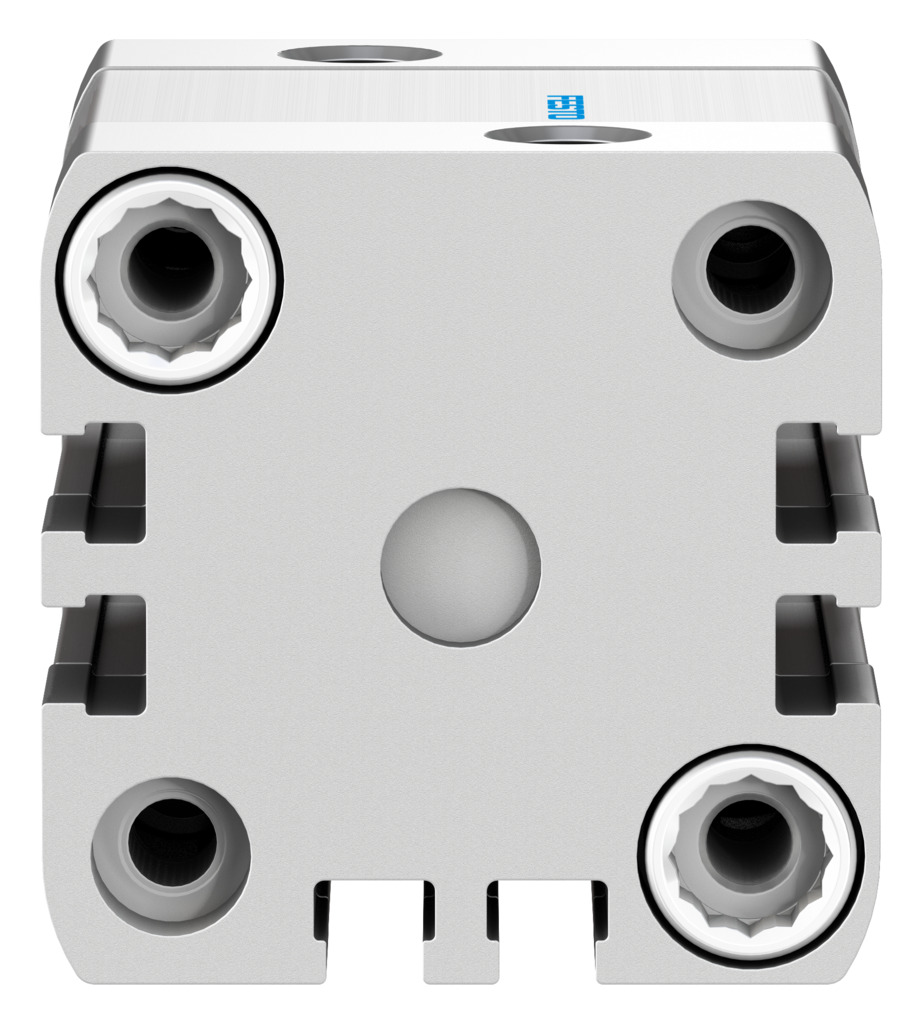

Festo Double Action Pneumatic Compact Cylinder 32mm Bore, 15mm stroke

Enrgtech Part No: ET16814972
|
Manufacturer Part No:
ADN-32-15-A-P-A
|
Manufacturer: Festo

ADN-32-15-A-P-A Festo Double Action Pneumatic Compact Cylinder 32mm Bore, 15mm stroke

Product Information

Cushioning Type:

Air Cushioning, Cushioning Rings

Stroke Length:

15mm

Maximum Operating Pressure:

10 bar

Action Type:

Double Acting

Series:

ADN

Bore Size:

32 mm

Body Material:

Aluminium

Model Number:

536270

Height:

47mm

Width:

47 mm

Length:

65mm

Standards/Approvals:

ISO 21287, RoHS

Checking for live stock

The Festo ADN-32-15-A-P-A is a double-acting pneumatic compact cylinder designed for applications where space is limited and precise linear movement is required. With a 32 mm bore and a 15 mm stroke, it is typically used for short push-pull operations in automated machinery and production equipment. This cylinder is generally installed where standard cylinders are too long or bulky. Its compact body allows it to fit easily into tight machine layouts without affecting performance.

Unmatched Advantages of Buying the Festo 536270 Double-Action Pneumatic Compact Cylinder

Being double-acting, the cylinder provides controlled movement in both extension and retraction using compressed air. This gives consistent motion, better positioning, and reliable force output during repetitive cycles.

Smooth extension and return motion.
Stable performance during continuous operation.
Suitable for high-cycle automation tasks.
Works reliably in industrial environments.
Compact aluminium body.
Space-saving design.
Easy integration into existing assemblies.

Compact Pneumatic Cylinder for Short, Controlled Movement

The ADN series is known for its shorter overall length than standard pneumatic cylinders. This makes installation easier in compact machines, control panels, and modular automation systems. The short 15 mm stroke is ideal for clamping, stopping, ejecting, or positioning tasks that require only limited movement.

Application Versatility of the Cylinder

This cylinder is widely used in:

Automated assembly machines
Packaging and labelling equipment
Pick-and-place systems
Light clamping or positioning mechanisms
