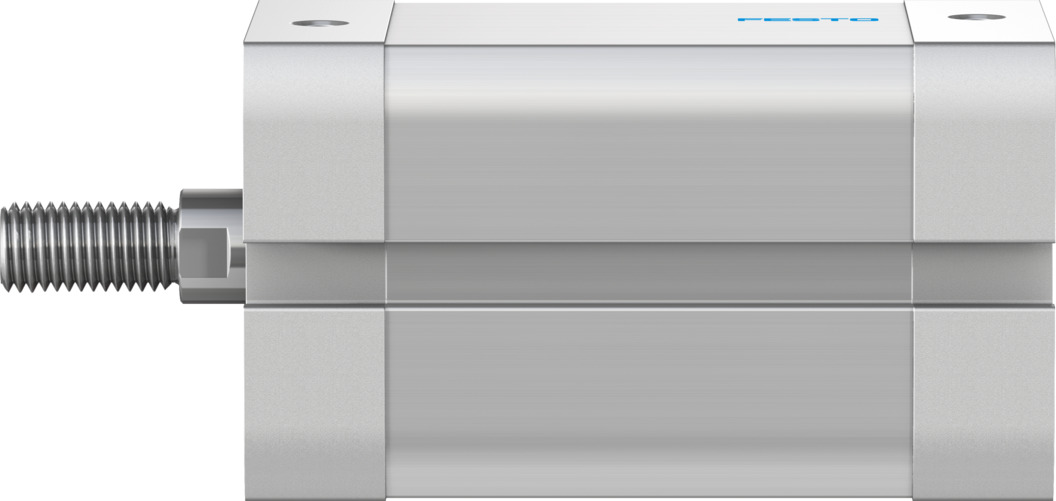

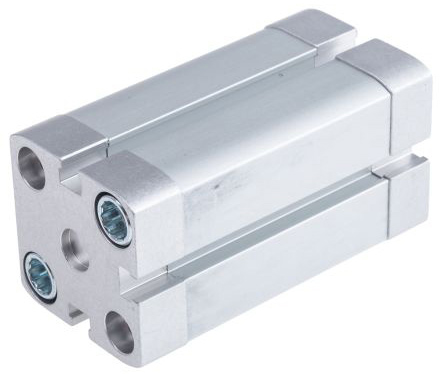

Festo Double Action Pneumatic Compact Cylinder 25mm Bore, 30mm stroke

Enrgtech Part No: ET16814967
|
Manufacturer Part No:
ADN-25-30-A-P-A
|
Manufacturer: Festo

ADN-25-30-A-P-A Festo Double Action Pneumatic Compact Cylinder 25mm Bore, 30mm stroke

Product Information

Cushioning Type:

Air Cushioning, Cushioning Rings

Stroke Length:

30mm

Maximum Operating Pressure:

10 bar

Action Type:

Double Acting

Series:

ADN

Bore Size:

25 mm

Body Material:

Aluminium

Model Number:

536256

Height:

39.5mm

Width:

39.5 mm

Length:

74.5mm

Standards/Approvals:

ISO 21287, RoHS

Checking for live stock

The Festo ADN-25-30-A-P-A is a compact, double-acting pneumatic cylinder designed for applications with limited space. With a 25 mm bore and a 30 mm stroke, it delivers controlled linear motion without needing a long installation length. It is typically used in automation systems that require short strokes and precise movement. This cylinder is built for continuous operation in industrial environments and fits easily into compact machine designs.

Core Capabilities of the Festo 536256 Double-Action Pneumatic Cylinder

Being double-acting, the piston moves in both directions using compressed air. This provides better control than single-acting cylinders and maintains consistent force during extension and retraction.

Stable motion in both directions.
Predictable force output.
Smooth operation during repeated cycles.
Compact aluminium housing.
Precision-guided piston movement.
Durable seals for long service life.
Designed for industrial compressed air systems.

Broad Range Application

This model is often found in:

Automated assembly machines
Packaging and labelling systems
Pick-and-place units
Clamping and positioning mechanisms
Small actuating tasks in production lines
