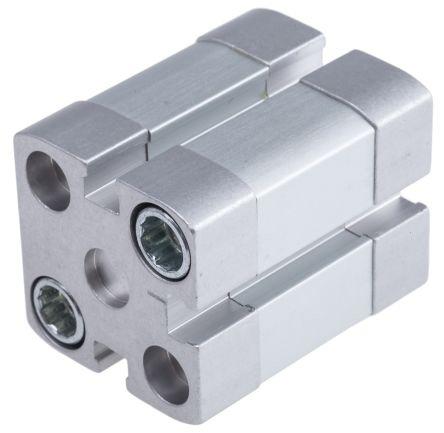

Festo Double Action Pneumatic Compact Cylinder 25mm Bore, 20mm stroke

Enrgtech Part No: ET16814966
|
Manufacturer Part No:
ADN-25-20-A-P-A
|
Manufacturer: Festo

ADN-25-20-A-P-A Festo Double Action Pneumatic Compact Cylinder 25mm Bore, 20mm stroke

Product Information

Cushioning Type:

Air Cushioning, Cushioning Rings

Stroke Length:

20mm

Maximum Operating Pressure:

10 bar

Action Type:

Double Acting

Series:

ADN

Bore Size:

25 mm

Body Material:

Aluminium

Model Number:

536254

Height:

39.5mm

Width:

39.5 mm

Length:

64.5mm

Standards/Approvals:

ISO 21287, RoHS

Checking for live stock

The Festo ADN-25-20-A-P-A is a double-acting compact pneumatic cylinder designed for applications where space is limited but reliable linear movement is required. With a 25 mm bore and a 20 mm stroke, it is commonly used in automated machinery, assembly lines, and handling systems that require short, precise strokes. This cylinder follows ISO compact cylinder standards, making it easy to integrate into existing pneumatic setups without custom mounting or redesign.

Core Capabilities of the Festo 536254 Double Action Pneumatic Cylinder

The compact body design helps reduce machine footprint while maintaining mechanical strength. The piston rod and internal seals are engineered to handle frequent cycling, making it suitable for continuous operation environments.

Compact form for space-restricted machines.
Smooth, controlled piston movement.
Suitable for high-cycle operation.
Designed for standard pneumatic mounting.

Broad Range Application

It fits well in systems where reliability is more important than oversized force or long stroke lengths.

Packaging and labelling machines
Assembly and pick-and-place systems
Light clamping and positioning tasks
Automated production equipment
