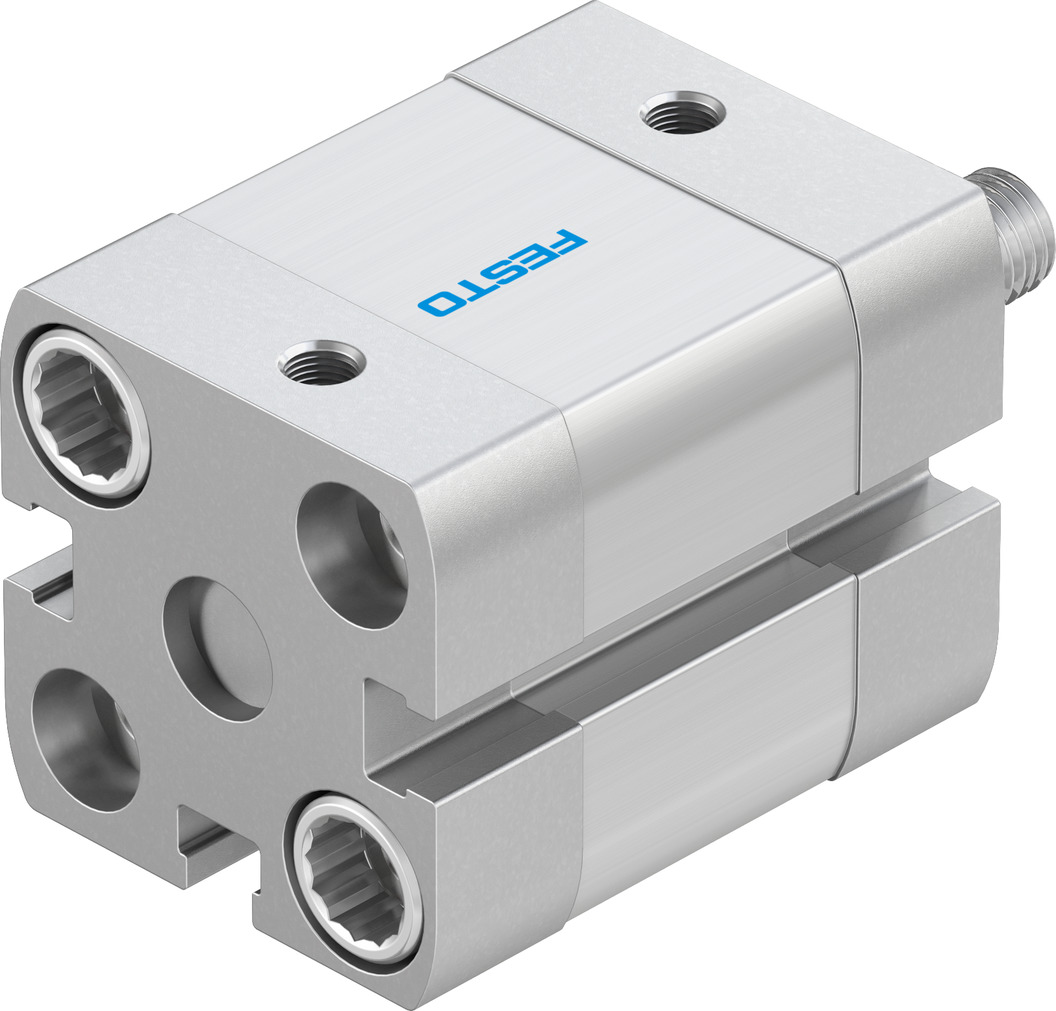

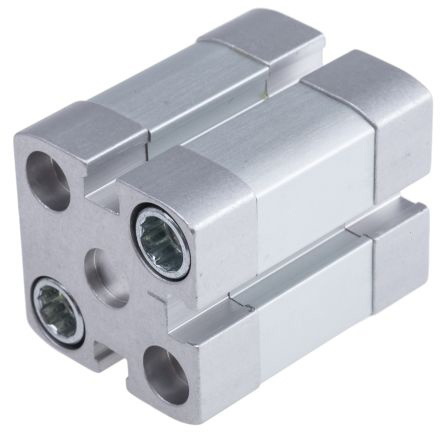

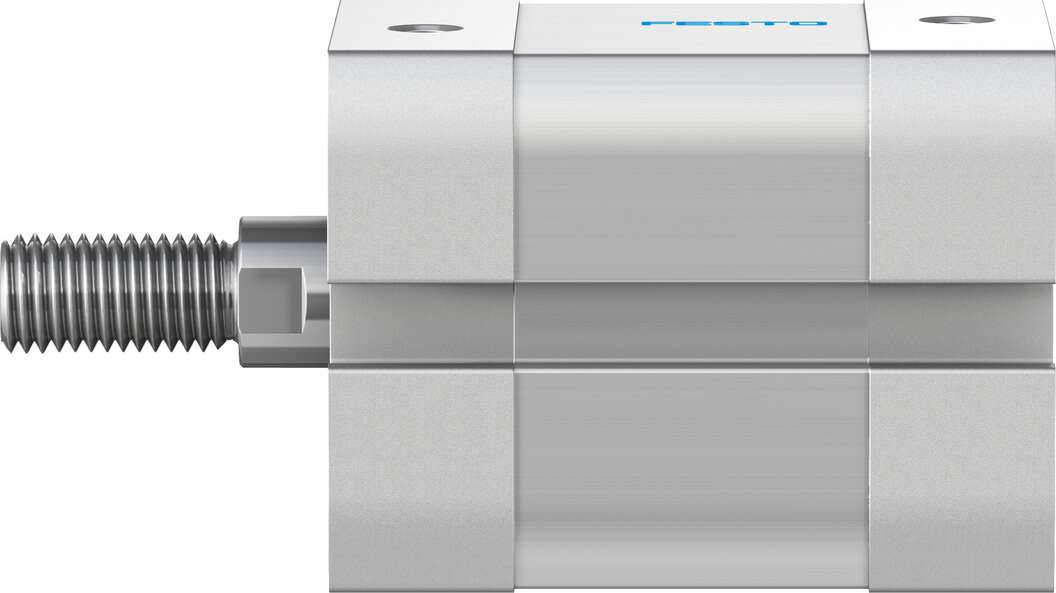

Festo Double Action Pneumatic Compact Cylinder 25mm Bore, 10mm stroke

Enrgtech Part No: ET16814964
|
Manufacturer Part No:
ADN-25-10-A-P-A
|
Manufacturer: Festo

ADN-25-10-A-P-A Festo Double Action Pneumatic Compact Cylinder 25mm Bore, 10mm stroke

Product Information

Cushioning Type:

Flexible Cushioning

Stroke Length:

10mm

Maximum Operating Pressure:

10 bar

Action Type:

Double Acting

Series:

ADN

Bore Size:

25 mm

Body Material:

Aluminium

Model Number:

536252

Height:

39.5mm

Width:

39.5 mm

Length:

54.5mm

Standards/Approvals:

ISO 21287, RoHS

Checking for live stock

The Festo ADN-25-10-A-P-A is a double-acting pneumatic compact cylinder designed for applications where space is limited and precise motion is required. With a 25 mm bore and a short 10 mm stroke, it is mainly used for clamping, positioning, and light pushing tasks in automated systems. This cylinder is designed to deliver controlled motion without occupying unnecessary space in machines or control assemblies.

Unmatched Advantages of Investing in the Festo 536252 Double-Action Pneumatic Cylinder

The compact body design makes this cylinder easy to install in machines where standard cylinders would be too long. Despite its small size, it still offers stable and repeatable movement in both directions using compressed air.

Space around the actuator is limited.
Short stroke length is required.
Fast response is more important than long travel.
Controlled movement in both directions.
Consistent positioning.
Suitable for continuous operation.

Double-Acting Operation for Better Control

Because it is double-acting, air pressure is used for both extension and retraction. This provides better control over motion than spring-return cylinders, especially in automated or repeatable processes.

Typical Industrial Applications

The ADN-25-10-A-P-A is generally found in:

Automated assembly machines
Clamping and holding systems
Pick-and-place mechanisms
Packaging and sorting equipment

Datasheet(Technical Reference)

ADN-25-10-A-P-A Specification Sheet(Technical Reference)

Brochure - Core Product Range(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)
