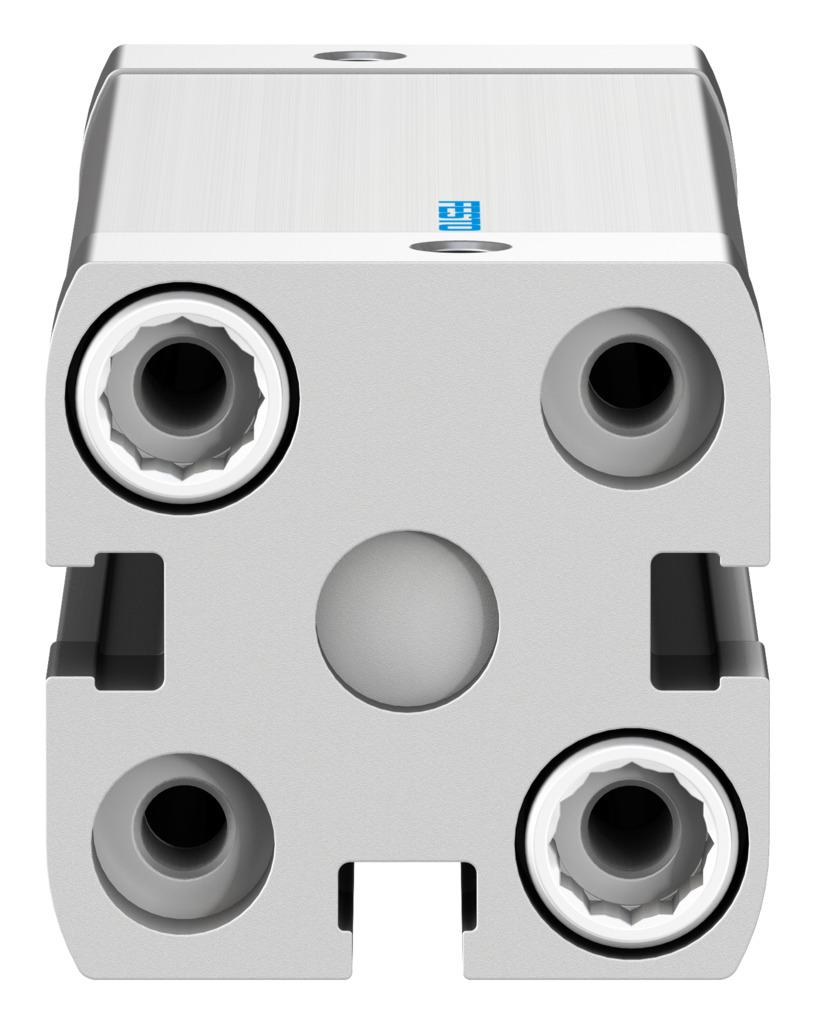

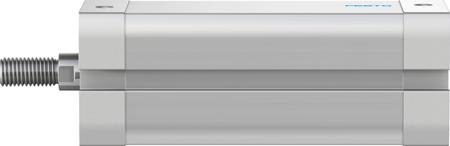

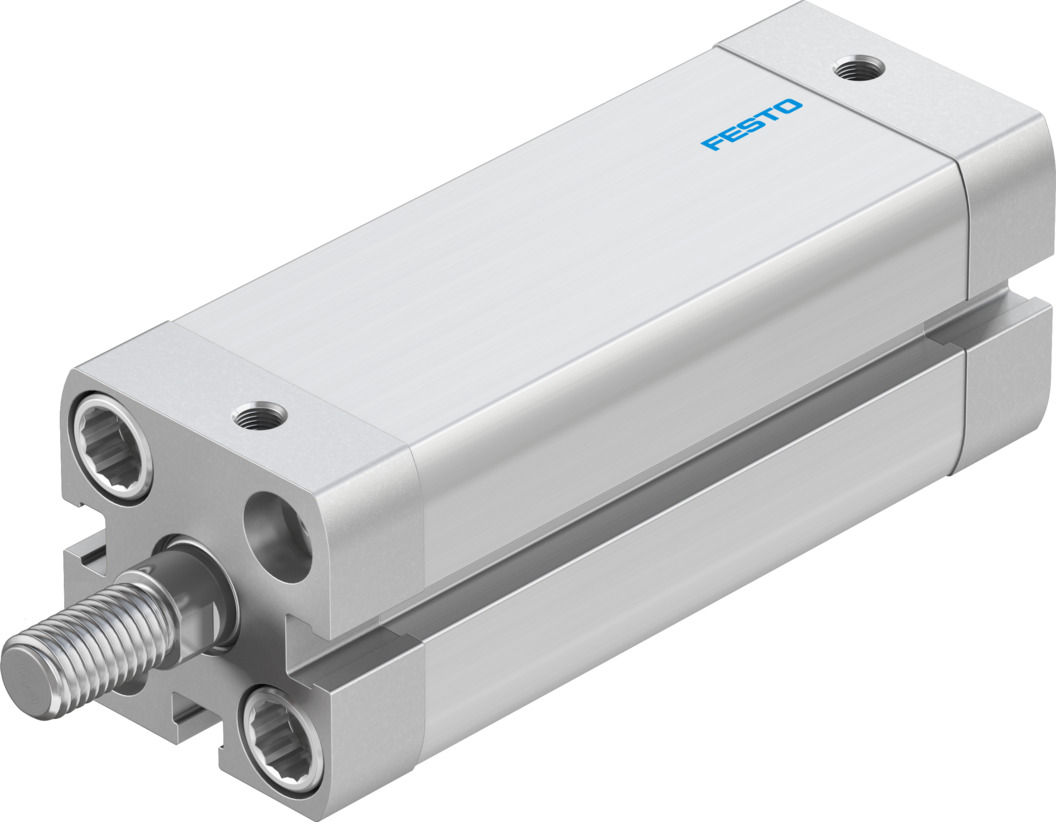

Festo Double Action Pneumatic Compact Cylinder 20mm Bore, 60mm stroke

Enrgtech Part No: ET16814963
|
Manufacturer Part No:
ADN-20-60-A-P-A
|
Manufacturer: Festo

ADN-20-60-A-P-A Festo Double Action Pneumatic Compact Cylinder 20mm Bore, 60mm stroke

Product Information

Cushioning Type:

Air Cushioning, Cushioning Rings

Stroke Length:

60mm

Maximum Operating Pressure:

10 bar

Action Type:

Double Acting

Series:

ADN

Bore Size:

20 mm

Body Material:

Aluminium

Model Number:

536352

Height:

35.5mm

Width:

35.5 mm

Length:

102.5mm

Standards/Approvals:

ISO 21287, RoHS

Checking for live stock

The Festo ADN-20-60-A-P-A is a double-acting pneumatic cylinder designed for controlled push-and-pull motion in compact automation systems. With a 20 mm bore and a 60 mm stroke, it is typically used where space is limited but consistent linear movement is still required. This cylinder is part of Festo’s compact ADN series, which is known for fitting easily into tight machine layouts without compromising reliability.

Potential Advantages of Buying the Festo 536352 Double-Action Pneumatic Cylinder

The cylinder uses compressed air on both sides of the piston, allowing controlled extension and retraction. This makes it suitable for applications that need repeatable positioning rather than spring-return movement.

Double-acting operation for controlled motion.
20 mm piston bore for moderate force output.
60 mm stroke for short linear travel.
Compact body for space-restricted installations.
Maintains stable, predictable movement during continuous operation.

Built Tough for Automation and Machine Integration

The ADN-20-60-A-P-A is typically mounted directly onto machinery, frames, or automation modules. Its compact profile makes alignment easier, especially in assembly lines or small handling systems.

Typical Uses in Industrial Systems

This cylinder is widely used in:

Automated assembly machines
Packaging and sorting equipment
Pick-and-place systems
Light clamping and holding applications
Conveyor and material
54handling setups

Datasheet(Technical Reference)

ADN-20-60-A-P-A Specification Sheet(Technical Reference)

Brochure - Less Is More(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)
