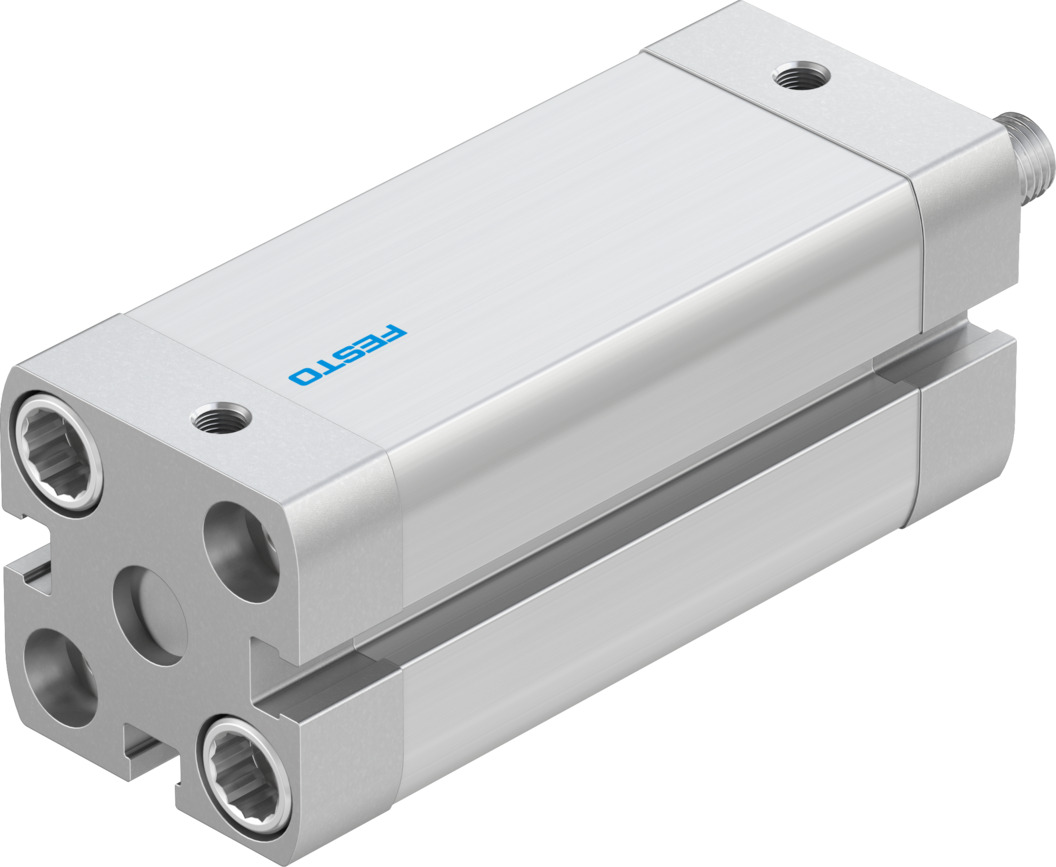

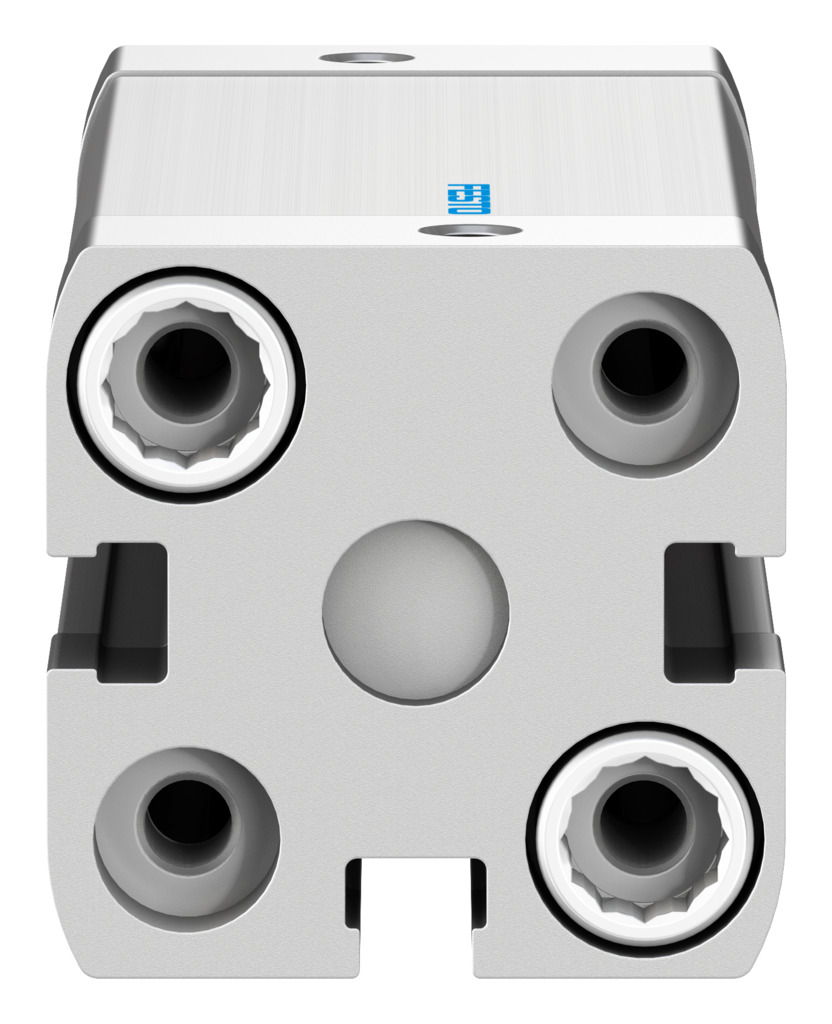

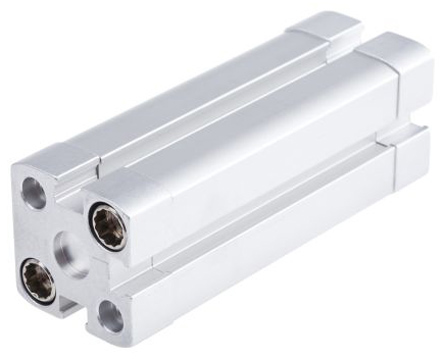

Festo Double Action Pneumatic Compact Cylinder 20mm Bore, 50mm stroke

Enrgtech Part No: ET16814962
|
Manufacturer Part No:
ADN-20-50-A-P-A
|
Manufacturer: Festo

ADN-20-50-A-P-A Festo Double Action Pneumatic Compact Cylinder 20mm Bore, 50mm stroke

Product Information

Cushioning Type:

Air Cushioning, Cushioning Rings

Stroke Length:

50mm

Maximum Operating Pressure:

10 bar

Action Type:

Double Acting

Series:

ADN

Bore Size:

20 mm

Body Material:

Aluminium

Model Number:

536241

Height:

35.5mm

Width:

35.5 mm

Length:

92.5mm

Standards/Approvals:

ISO 21287, RoHS

Checking for live stock

The Festo ADN-20-50-A-P-A is a double-acting pneumatic cylinder designed for standard industrial motion tasks. With a 20 mm bore and a 50 mm stroke, it is commonly used in compact automation systems that require controlled linear movement in both directions. This cylinder is built for repeatable operation in production environments. It fits easily into machines with limited space while still delivering reliable force and smooth motion.

Unmatched Advantages of Buying the Festo 536241 Double-Action Pneumatic Cylinder

The double-acting design allows air pressure to move the piston forward and backwards, providing better control than single-acting cylinders. This makes it suitable for applications that require precise positioning or consistent return movement.

Smooth, controlled linear motion.
Consistent force across the full stroke.
Reliable operation in continuous cycles.
Compact round design for tight spaces.
Standard mounting options for easy integration.
Built to handle repeated pneumatic cycling.

Design and Build You Can Rely On

The ADN series is known for its compact profile and solid construction. The cylinder body and piston are designed to handle regular mechanical stress while maintaining alignment and seal integrity over time.

Product Use Cases

This cylinder is widely used in:

Pick-and-place mechanisms
Clamping and holding systems
Assembly and packaging machines
Conveyor diverters and stops
Light-duty pressing or positioning tasks

Datasheet(Technical Reference)

Brochure - Less Is More(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)

ADN-20-50-A-P-A Specification Sheet(Technical Reference)
