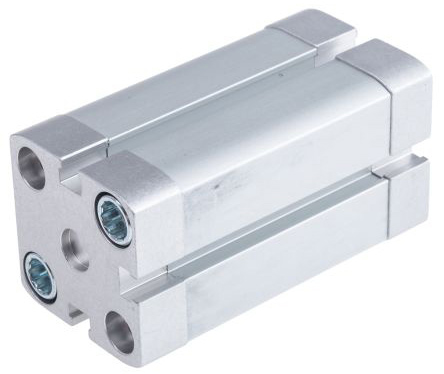

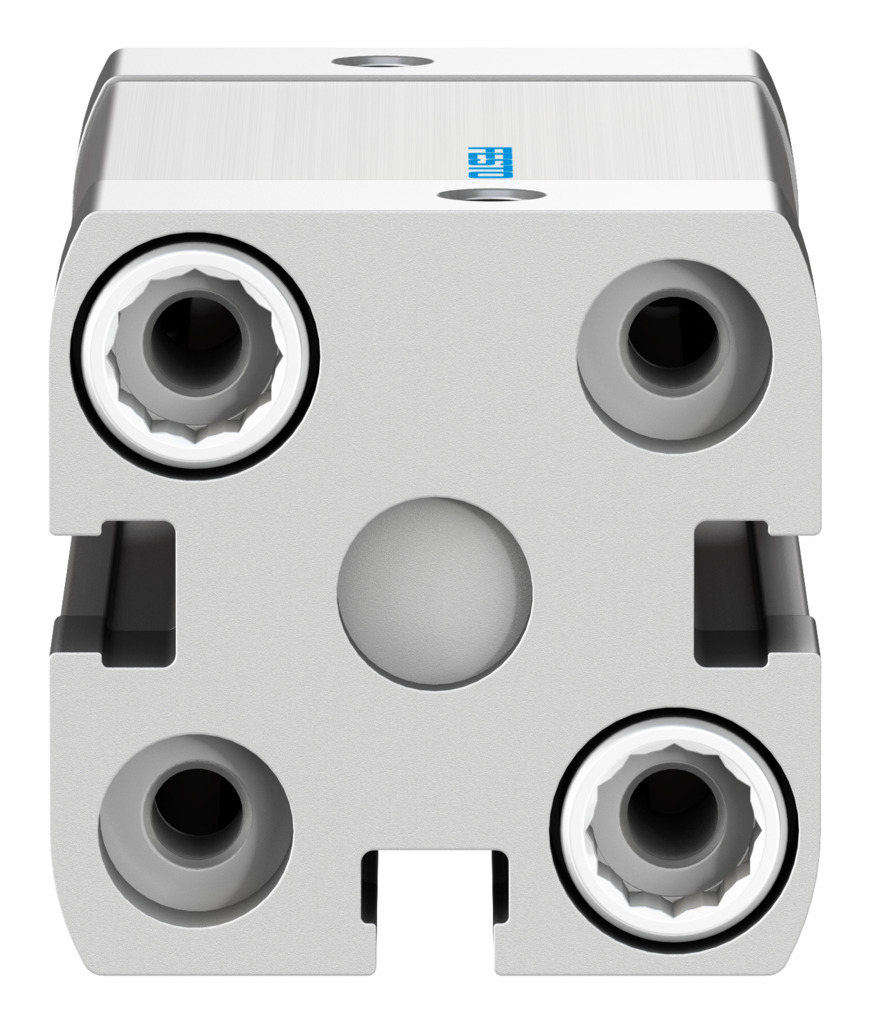

Festo Double Action Pneumatic Compact Cylinder 20mm Bore, 30mm Stroke

Enrgtech Part No: ET16814960
|
Manufacturer Part No:
ADN-20-30-A-P-A
|
Manufacturer: Festo

ADN-20-30-A-P-A Festo Double Action Pneumatic Compact Cylinder 20mm Bore, 30mm Stroke

Product Information

Cushioning Type:

Air Cushioning, Cushioning Rings

Stroke Length:

30mm

Maximum Operating Pressure:

10 bar

Action Type:

Double Acting

Series:

ADN

Bore Size:

20 mm

Body Material:

Aluminium

Model Number:

536239

Height:

35.5mm

Width:

35.5 mm

Length:

72.5mm

Standards/Approvals:

ISO 21287, RoHS

Checking for live stock

The Festo ADN-20-30-A-P-A is a compact double-acting pneumatic cylinder designed for short stroke applications where space is limited. With a 20 mm bore and a 30 mm stroke, it is typically used in automation setups that need precise linear movement without bulky hardware. This cylinder is part of Festo’s compact drive range and is generally installed in machines that require reliable push-and-pull motion with a small footprint.

What Benefits Does It Offer to Users?

Being double-acting, the cylinder uses compressed air for both extension and retraction. This allows controlled movement in both directions, which is essential for repeatable positioning and cycle-based automation.

Consistent movement in both directions.
Reasonable control at short stroke lengths.
Reliable operation in continuous cycles.

Typical Uses of the Festo 536239 Double-Action Pneumatic Cylinder

This cylinder is typically found in:

Assembly and pick-and-place systems
Clamping and positioning tasks
Packaging and labelling machines
Small automation and handling units

Datasheet(Technical Reference)

ADN-20-30-A-P-A Specification Sheet(Technical Reference)

Brochure - Less Is More(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)
