Name: ADN-20-25-A-P-A, Festo
Brand: Festo
SKU: ET16814959
Price: 48.70 GBP
Availability: InStock

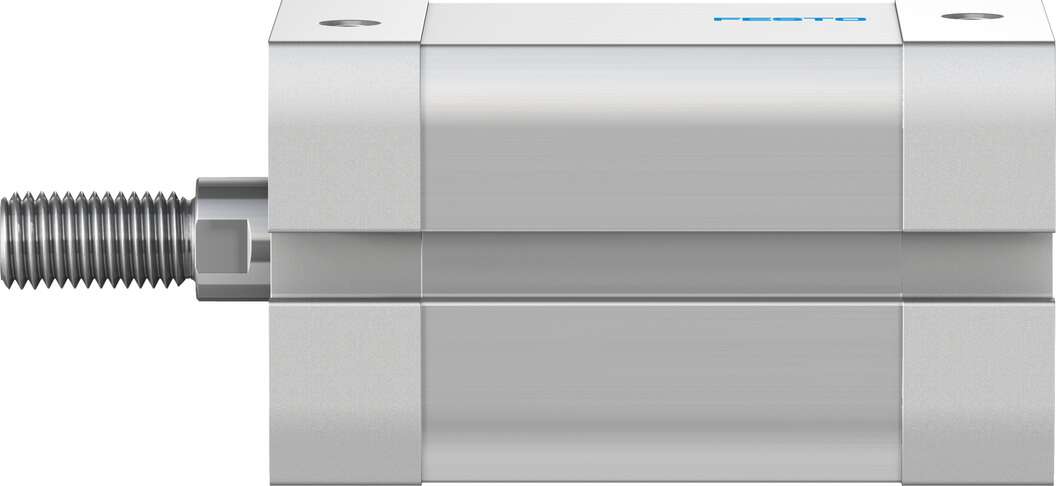

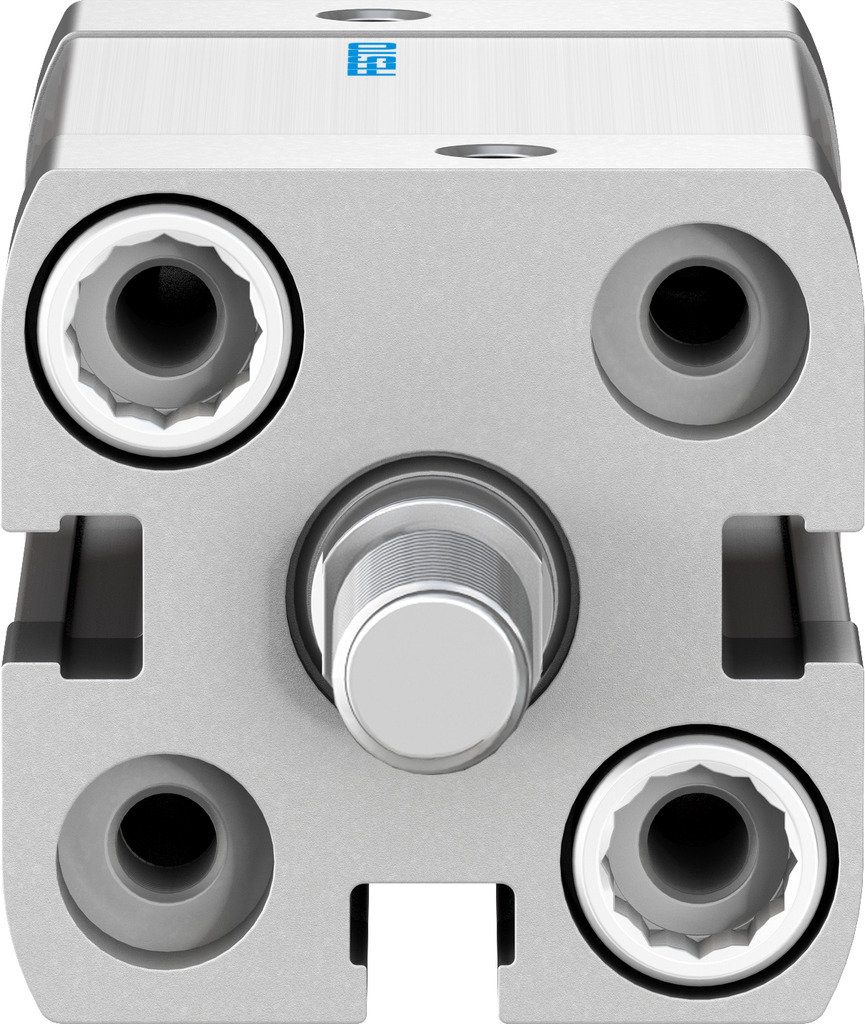

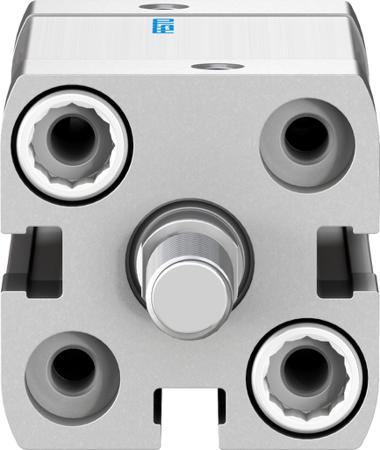

ADN-20-25-A-P-A Festo Double Action Pneumatic Compact Cylinder 20mm Bore, 25mm stroke

(0)

Product Information

Cushioning Type:

Elastic

Stroke Length:

25mm

Maximum Operating Pressure:

10 bar

Action Type:

Double Acting

Series:

ADN

Minimum Operating Temperature:

-20°C

Bore Size:

20 mm

Body Material:

Aluminium

Model Number:

536238

Height:

35.5mm

Width:

35.5 mm

Length:

67.5mm

Checking for live stock

The Festo ADN-20-25-A-P-A is a compact double-acting pneumatic cylinder designed for short-stroke linear movement in automated systems. With a 20 mm bore and a 25 mm stroke, it is typically used where space is limited, but consistent force and positioning are required. This cylinder operates using compressed air for both extension and retraction, allowing controlled movement in both directions.

Core Capabilities of the Festo 536238 Double-Action Pneumatic Cylinder

This cylinder follows a compact ADN profile, making it easy to integrate into tight machine layouts. The short stroke length keeps movement precise and reduces cycle time in repetitive applications.

20 mm piston bore for moderate force output.
25 mm stroke for short, controlled movement.
Double-acting operation for push and pull motion.
Compact body suitable for confined installations.

Built for Automation Environments

The ADN-20-25-A-P-A is designed to work reliably in industrial automation setups. It is compatible with standard pneumatic fittings and can be paired with position-sensing sensors, making it suitable for controlled sequencing and automated processes.

Wide Application Range

This cylinder is typically used in:

Pick-and-place systems
Clamping and positioning mechanisms
Small presses or stops
Assembly and packaging machines
Conveyor and sorting equipment

Datasheet(Technical Reference)

Brochure - The Future of Standard Cylinders(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)

ADN-20-25-A-P-A Specification Sheet(Technical Reference)
