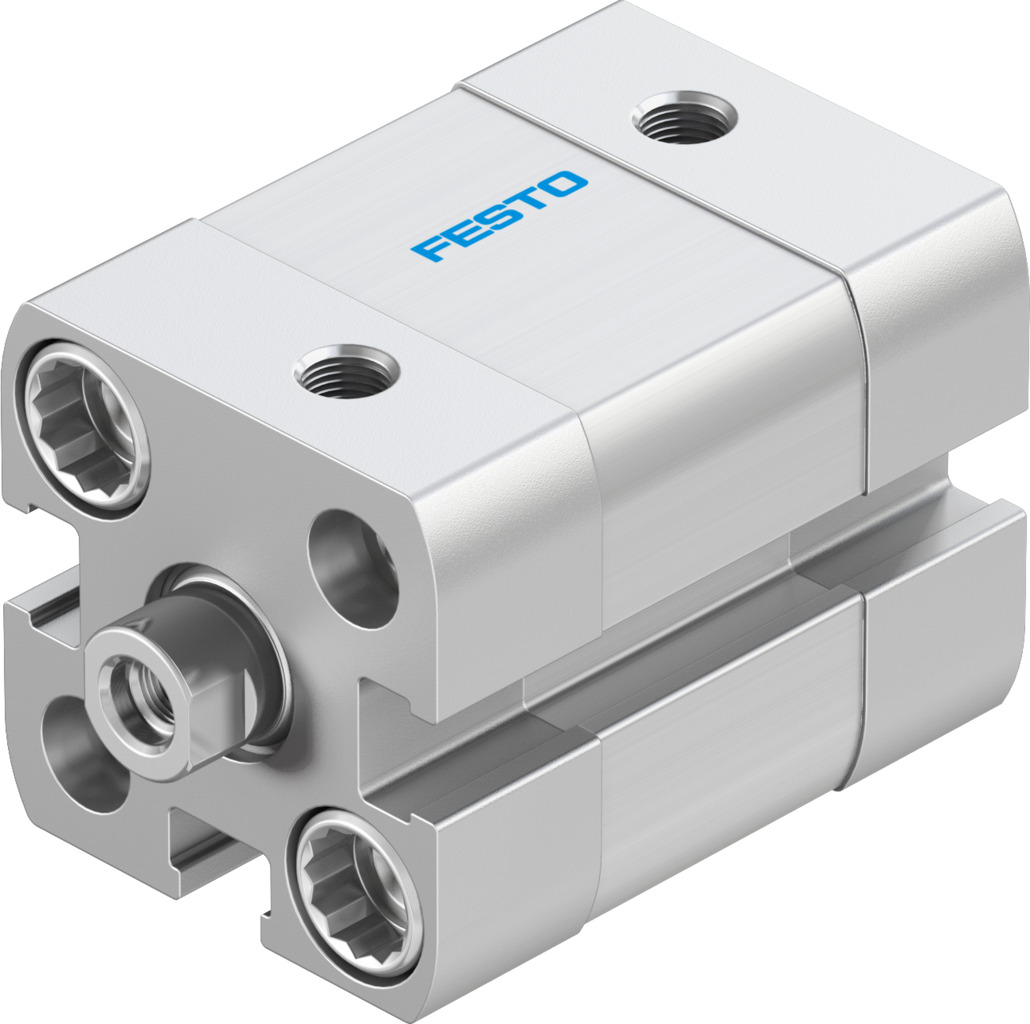

Festo Double Action Pneumatic Compact Cylinder 16mm Bore, 5mm stroke

ADN-16-5-I-P-A Festo Double Action Pneumatic Compact Cylinder 16mm Bore, 5mm stroke
ADN-16-5-I-P-A
ADN-16-5-I-P-A
ET16814954
ET16814954
Pneumatic Piston Rod Cylinders
ADN-16-5-I-P-A Festo Double Action Pneumatic Compact Cylinder 16mm Bore, 5mm stroke
Festo

Product Information

Port Connection:
M5
Dimensions:
29 x 29 x 44.7mm
Maximum Operating Pressure:
10 bar
Piston Rod Thread Gender:
Female
Model Number p:
536226
Stroke:
5mm
Pneumatic Connection:
M5
Height:
29mm
Width:
29mm
Length:
44.7mm
Manufacturer Series:
ADN
Action:
Double
Bore:
16mm
Maximum Operating Temperature:
+80°C
Minimum Operating Temperature:
-20°C
RoHs Compliant
Checking for live stock

The Festo ADN-16-5-I-P-A is a compact, double-acting pneumatic cylinder designed for applications where space is limited and precise movement is required. With a 16 mm bore and a short 5 mm stroke, it is commonly used for small positioning, clamping, and pushing tasks in automated systems.

Crucial Features of the Festo 536226 Double-Action Pneumatic Cylinder

Being double-acting, the cylinder uses compressed air for both extension and retraction. This provides better control over movement than single-acting designs, especially during fast or repetitive cycles.

  • Compact body for tight installation spaces.
  • 16 mm bore size for controlled force output.
  • 5 mm stroke for precise, short travel.
  • Double-acting air supply for consistent motion.

Wide Application Range

The Festo ADN-16-5-I-P-A is typically used in:

  • Packaging and assembly machines
  • Pick-and-place units
  • Small automation fixtures
  • Conveyor and stop mechanisms
  • Small part positioning
  • Light clamping operations
  • Ejector or stop mechanisms
  • Compact automation assemblies

pdf icon
ADN-16-5-I-P-A Specification Sheet(Technical Reference)
pdf icon
Brochure - Less Is More(Technical Reference)
pdf icon
Festo Pneumatic Cylinders Operating Manual(Technical Reference)
pdf icon
Festo ADN/AEN(Technical Reference)
