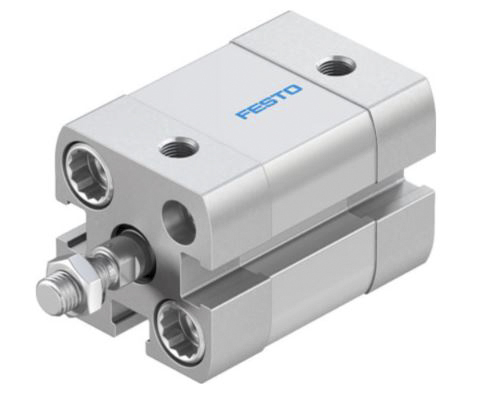

Festo Double Action Pneumatic Compact Cylinder 16mm Bore, 30mm stroke

Enrgtech Part No: ET16814950
|
Manufacturer Part No:
ADN-16-30-A-P-A
|
Manufacturer: Festo

ADN-16-30-A-P-A Festo Double Action Pneumatic Compact Cylinder 16mm Bore, 30mm stroke

Product Information

Cushioning Type:

Air Cushioning, Cushioning Rings

Stroke Length:

30mm

Maximum Operating Pressure:

10 bar

Action Type:

Double Acting

Series:

ADN

Bore Size:

16 mm

Body Material:

Aluminium

Model Number:

536224

Height:

29mm

Width:

29 mm

Length:

69.7mm

Standards/Approvals:

ISO 21287, RoHS

Checking for live stock

The Festo ADN-16-30-A-P-A is a double-acting compact pneumatic cylinder designed for applications where space is limited but controlled linear movement is still required. With a 16 mm bore and a 30 mm stroke, it is commonly used in small automation setups, fixtures, and light handling systems. This cylinder is built to fit where standard cylinders are too long, making it suitable for compact machines and densely packed assemblies.

Special Features of the Festo 536224 Double-Action Pneumatic Cylinder

Being double-acting, the cylinder provides controlled movement in both extension and retraction using compressed air. This offers better positioning accuracy than spring-return designs and makes it suitable for repetitive motion tasks.

16 mm bore for compact force requirements.
30 mm stroke for short, precise movements.
Double-acting operation for controlled motion.
Used in systems requiring consistent push and pull movement.

Design and Mounting Simplicity

The ADN series is known for its short overall length and clean design. This makes installation easier in confined spaces without requiring a redesign of the machine layout. The cylinder body is robust enough for continuous operation while keeping the weight low.

Typical Application Areas

This cylinder is often used in:

Pick-and-place mechanisms
Clamping and positioning units
Small assembly stations
Packaging and labelling machines
Light industrial automation tasks
