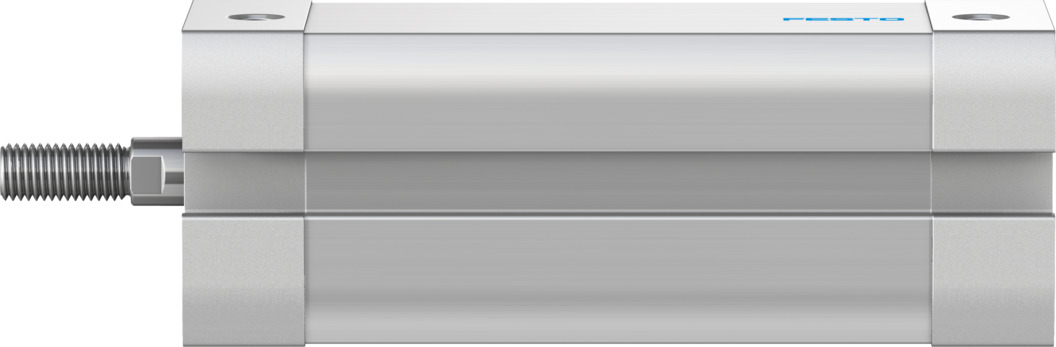

Festo Double Action Pneumatic Cylinder 12mm Bore, 40mm Stroke

Enrgtech Part No: ET16814946
|
Manufacturer Part No:
ADN-12-40-A-P-A
|
Manufacturer: Festo

ADN-12-40-A-P-A Festo Double Action Pneumatic Cylinder 12mm Bore, 40mm Stroke

Product Information

Cushioning Type:

Air Cushioning, Cushioning Rings

Stroke Length:

40mm

Maximum Operating Pressure:

10 bar

Action Type:

Double Acting

Series:

ADN

Bore Size:

12 mm

Body Material:

Aluminium

Model Number:

536210

Height:

27.5mm

Width:

27.5 mm

Length:

79.2mm

Standards/Approvals:

ISO 21287, RoHS

Checking for live stock

The Festo ADN-12-40-A-P-A is a double-acting pneumatic compact cylinder designed for applications where space is limited but controlled linear motion is still required. With a 12 mm bore and a 40 mm stroke, it is commonly used in small automation systems, assembly fixtures, and compact machinery. This cylinder is part of Festo’s ADN series, which is known for reliable operation in confined mounting spaces without sacrificing performance.

Special Features of the Festo 536210 Double-Action Pneumatic Cylinder

The double-acting design allows air pressure to move the piston in both directions, providing better control than spring-return cylinders. This makes it suitable for repetitive motion, positioning tasks, and light clamping applications.

12 mm piston bore.
40 mm stroke length.
Double-acting pneumatic operation.
Compact body for restricted spaces.

Solid Build for Industrial Use

The cylinder body is made for long service life in industrial conditions. It resists wear from continuous operation and maintains smooth piston movement. Standard mounting options make integration straightforward in new or existing pneumatic systems.

Broad Application Range

The Festo ADN-12-40-A-P-A is generally used in:

Pick-and-place units
Small assembly machines
Packaging equipment
Light clamping and positioning tasks
Automated workstations

Datasheet(Technical Reference)

ADN-12-40-A-P-A Specification Sheet(Technical Reference)

Brochure - Less Is More(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)
