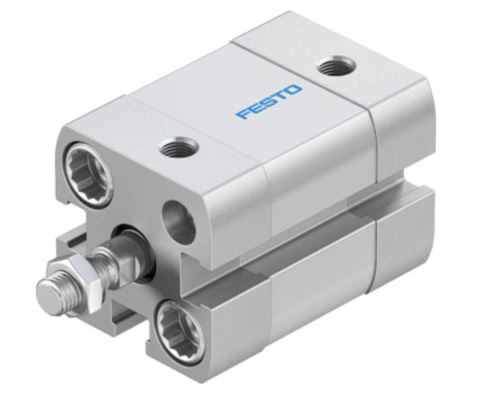

Festo Double Action Pneumatic Compact Cylinder 12mm Bore, 30mm stroke

Enrgtech Part No: ET16814945
|
Manufacturer Part No:
ADN-12-30-A-P-A
|
Manufacturer: Festo

ADN-12-30-A-P-A Festo Double Action Pneumatic Compact Cylinder 12mm Bore, 30mm stroke

Product Information

Cushioning Type:

Air Cushioning, Cushioning Rings

Stroke Length:

30mm

Maximum Operating Pressure:

10 bar

Action Type:

Double Acting

Series:

ADN

Minimum Operating Temperature:

-20°C

Bore Size:

12 mm

Body Material:

Aluminium

Model Number:

536209

Height:

27.5mm

Width:

27.5 mm

Length:

69.2mm

Checking for live stock

The Festo ADN-12-30-A-P-A is a double-acting pneumatic cylinder designed for compact automation setups where space is limited and precise movement is required. With a 12 mm bore and a 30 mm stroke, it is typically used for short linear motions such as pushing, positioning, clamping, or ejecting parts in automated systems. This cylinder is part of Festo’s compact ADN series, which is typically used in machinery where a small footprint and reliable repeatability are more important than long travel distances.

Core Capabilities of the Festo 536209 Double-Action Pneumatic Cylinder

The compact body makes this cylinder easy to install in control panels, assembly machines, and small automation frames. Despite its size, it delivers consistent motion in both directions due to its double-acting design.

12 mm bore for light to medium force.
30 mm stroke for short linear movement.
Compact housing for space-restricted layouts.

Double-Acting Operation for Better Control

Because this is a double-acting cylinder, air pressure is used for both extension and retraction. This provides better control over speed and positioning than single-acting cylinders that rely on springs.

Typical Applications in Automation Systems

The ADN-12-30-A-P-A is often used in:

Pick-and-place mechanisms
Small clamping or holding units
Part ejectors in assembly lines
Sensor-triggered positioning tasks
Compact packaging or sorting machines

Datasheet(Technical Reference)

ADN-12-30-A-P-A Specification Sheet(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)
