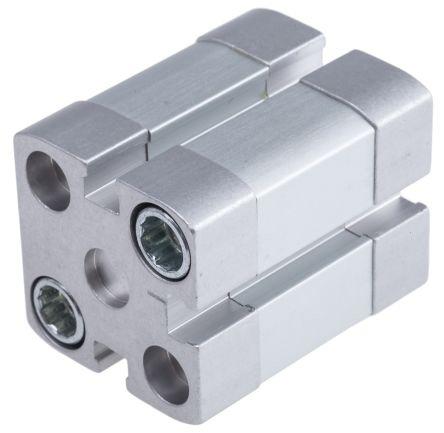

Festo Double Action Pneumatic Compact Cylinder 12mm Bore, 15mm Stroke

Enrgtech Part No: ET16814943
|
Manufacturer Part No:
ADN-12-15-A-P-A
|
Manufacturer: Festo

ADN-12-15-A-P-A Festo Double Action Pneumatic Compact Cylinder 12mm Bore, 15mm Stroke

Product Information

Cushioning Type:

Air Cushioning, Cushioning Rings

Stroke Length:

15mm

Maximum Operating Pressure:

10 bar

Action Type:

Double Acting

Series:

ADN

Bore Size:

12 mm

Body Material:

Aluminium

Model Number:

536206

Height:

27.5mm

Width:

27.5 mm

Length:

54.2mm

Standards/Approvals:

ISO 21287, RoHS

Checking for live stock

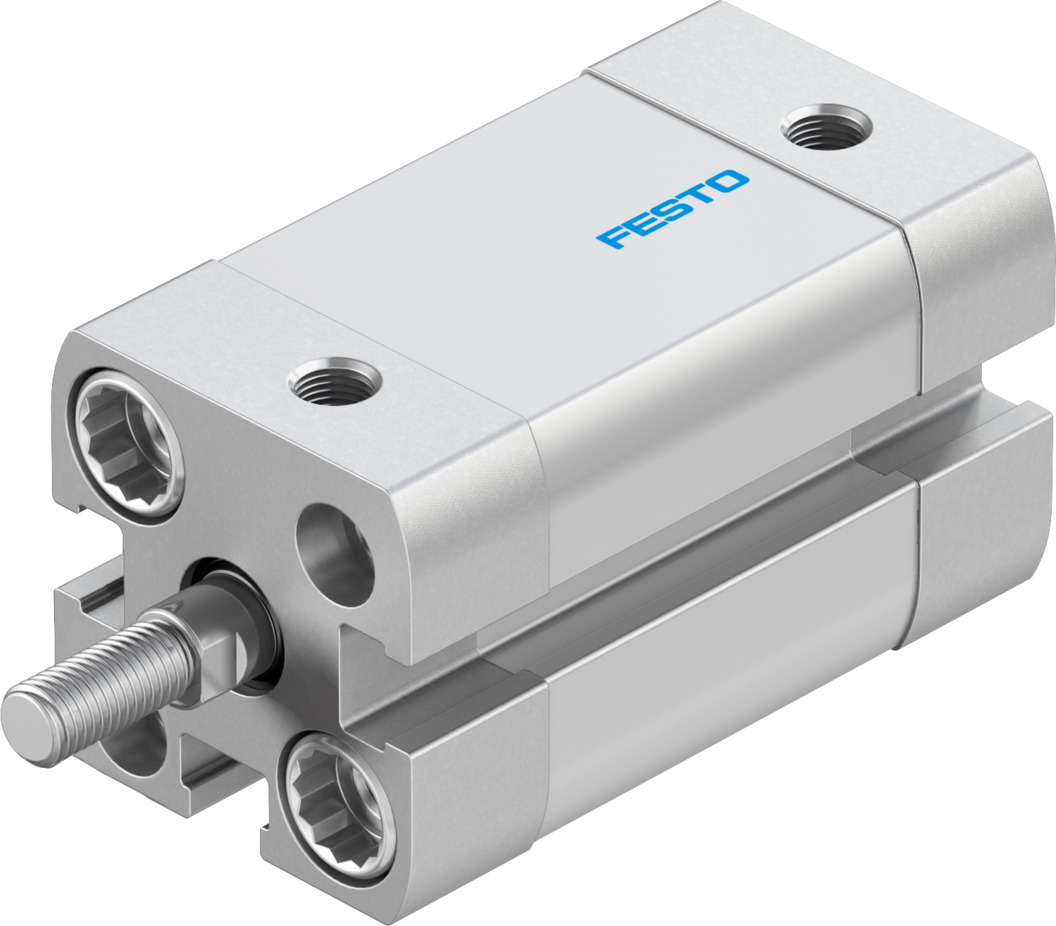

The Festo ADN-12-15-A-P-A is a double-acting pneumatic cylinder designed for short, controlled linear movements in compact automation setups. With a 12 mm bore and a 15 mm stroke, it is typically used where space is limited but reliable motion is still required. This cylinder is part of Festo’s compact ADN series, which is usually selected for machine builders and OEMs working with small actuators and tight installation areas.

Special Features of the Festo 536206 Double-Action Pneumatic Cylinder

The compact body allows this cylinder to be mounted close to other components without requiring a redesign of the system layout. Its short stroke makes it ideal for positioning, clamping, ejecting, or light pushing tasks.

Compact round-body design.
Short 15 mm stroke for precise movement.
Suitable for confined installations.
Integrates easily into small pneumatic circuits.

Double-Acting Operation for Controlled Movement

Being double-acting, the cylinder applies air pressure on both extension and retraction. This provides better control over movement than spring-return cylinders and delivers consistent force in both directions.

Application Potential of the Product

It is often used alongside valves, sensors, and guides in modular pneumatic systems.

Small automation machines
Pick-and-place units
Assembly and packaging equipment
Light clamping or stop mechanisms
Sensor-triggered actuation systems

Datasheet(Technical Reference)

ADN-12-15-A-P-A Specification Sheet(Technical Reference)

Brochure - Less Is More(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)
