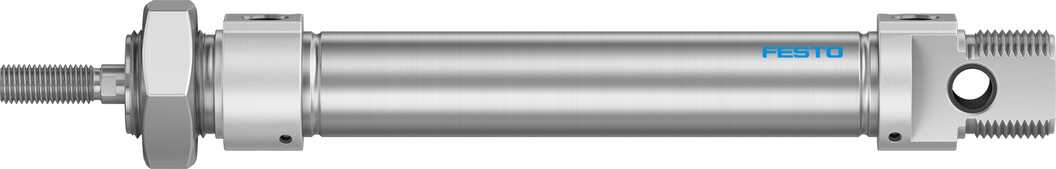

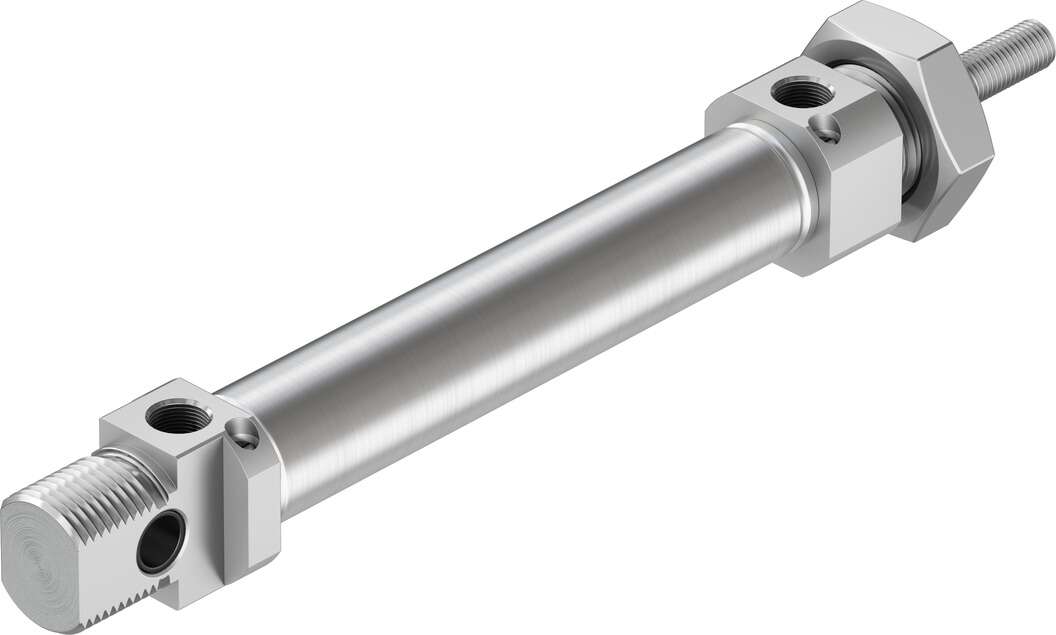

Festo DSNU-20-80-PPV-A, Double-Action Pneumatic Roundline Cylinder

Enrgtech Part No: ET14136964
|
Manufacturer Part No:
DSNU-20-80-PPV-A
|
Manufacturer: Festo

DSNU-20-80-PPV-A Festo , Double-Action Pneumatic Roundline Cylinder

Product Information

Cushioning Type:

Pneumatic

Stroke Length:

500mm

Piston Rod Thread Standard:

Metric

Piston Rod Gender:

Male/Female

Model Number:

19238

Length:

212mm

Standards/Approvals:

CE marking to EU Explosion Protection Directive (ATEX), ISO 1179-1, ISO 6432, ISO 228-1, ATEX II 2GD, Germanischer Lloyd

Product Type:

Pneumatic Cylinder

Maximum Operating Temperature:

80°C

Mount Type:

Swivel, Foot, Front, Direct, Rear, Flange

Checking for live stock

The Festo DSNU-20-80-PPV-A is a double-acting pneumatic cylinder designed for basic linear motion tasks in industrial and workshop environments. It uses compressed air to extend and retract the piston, making it suitable for pushing, pulling, clamping, and positioning. With a 20 mm bore and an 80 mm stroke, it fits well into compact automation setups where space and reliability matter. This cylinder is typically used in machines that run continuously and need consistent movement without complicated setup.

Core Capabilities of the Festo 19238 Double-Action Pneumatic Cylinder

The cylinder body is made from durable materials that handle repeated motion without excessive wear. The round design makes mounting and alignment easier, especially in modular systems. It is built to perform steadily rather than aggressively, which is precisely what most pneumatic systems need.

Double-acting operation for controlled movement.
Compact round body for tight installations.
Integrated cushioning (PPV) to reduce end-of-stroke impact.
Air pressure is already available.
Movements need to be repeatable.
Speed and force are moderate and controlled.
Protects both the cylinder and the connected machine parts over time.

Easy Integration into Pneumatic Systems

This cylinder connects easily to standard pneumatic fittings and valves. It does not require special controls or complex configuration, which makes it suitable for maintenance teams and system builders alike.

Product Use Cases

It is often chosen as a replacement cylinder because it follows common size standards and mounting practices.

Assembly and packaging machines
Light material handling systems
Automated jigs and fixtures
Conveyor-based positioning tasks

Instruction Sheet - DSNU(-S) Round Cylinder(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)

DSNU-20-80-PPV-A Specification Sheet(Technical Reference)

Festo DSNU/DSNUP/DSN/ESNU/ESN(Technical Reference)

Brochure - Simply Part of The Solution(Technical Reference)
