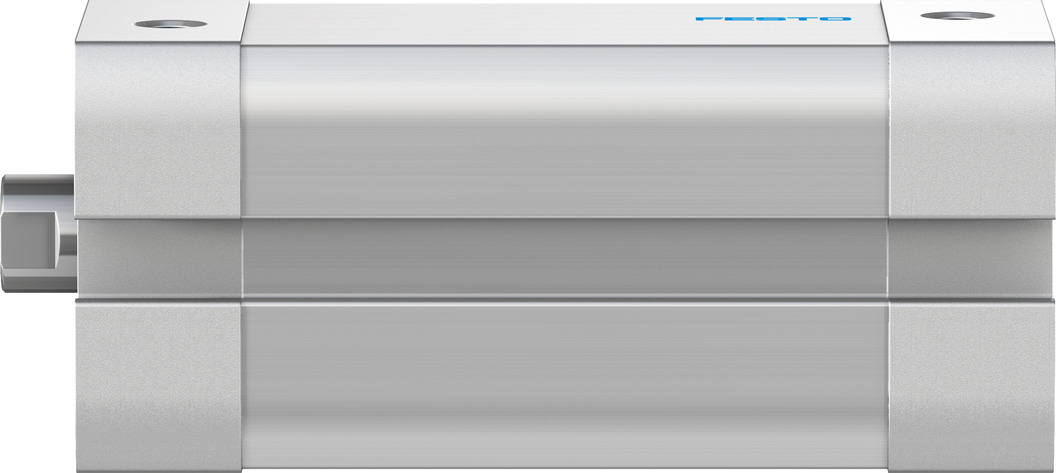

Festo Double Action Pneumatic Compact Cylinder 16mm Bore, 30mm Stroke

Enrgtech Part No: ET14136910
|
Manufacturer Part No:
ADN-16-30-I-P-A
|
Manufacturer: Festo

ADN-16-30-I-P-A Festo Double Action Pneumatic Compact Cylinder 16mm Bore, 30mm Stroke

Product Information

Port Connection:

Cushioning Type:

Flexible Cushioning

Dimensions:

29 x 29 x 69.7mm

VDMA Standard:

VDMA 24364-B1/B2-L

Piston Rod Thread Gender:

Female

Model Number p:

536231

Stroke:

30mm

Pneumatic Connection:

Height:

29mm

Width:

29mm

Length:

69.7mm

Manufacturer Series:

ADN

Checking for live stock

The Festo ADN-16-30-I-P-A is a compact, double-acting pneumatic cylinder designed for applications where space is limited but reliable linear motion is required. With a 16 mm bore and a 30 mm stroke, it is commonly used in automation setups that need short, controlled movements without bulky hardware.

Salient Features and Benefits of the Festo 536231 Double-Action Pneumatic Cylinder

The compact body allows installation in areas where standard cylinders will not fit.

Double-acting operation for controlled extension and retraction.
16 mm bore suited for light to medium loads.
30 mm stroke for short linear movements.
Compact aluminium housing.
Suitable for sensor mounting.
Designed for repeated cycling.
Low maintenance operation.

Built for Automation Environments

The cylinder is designed to work reliably in continuous-duty industrial environments. It supports position sensing and is compatible with standard pneumatic fittings and mounting accessories, making integration straightforward.

Product Use Cases

It is especially useful where multiple cylinders are installed close together.

Pick-and-place units
Clamping and holding mechanisms
Packaging and sorting machines
Small actuators in automated assembly systems
