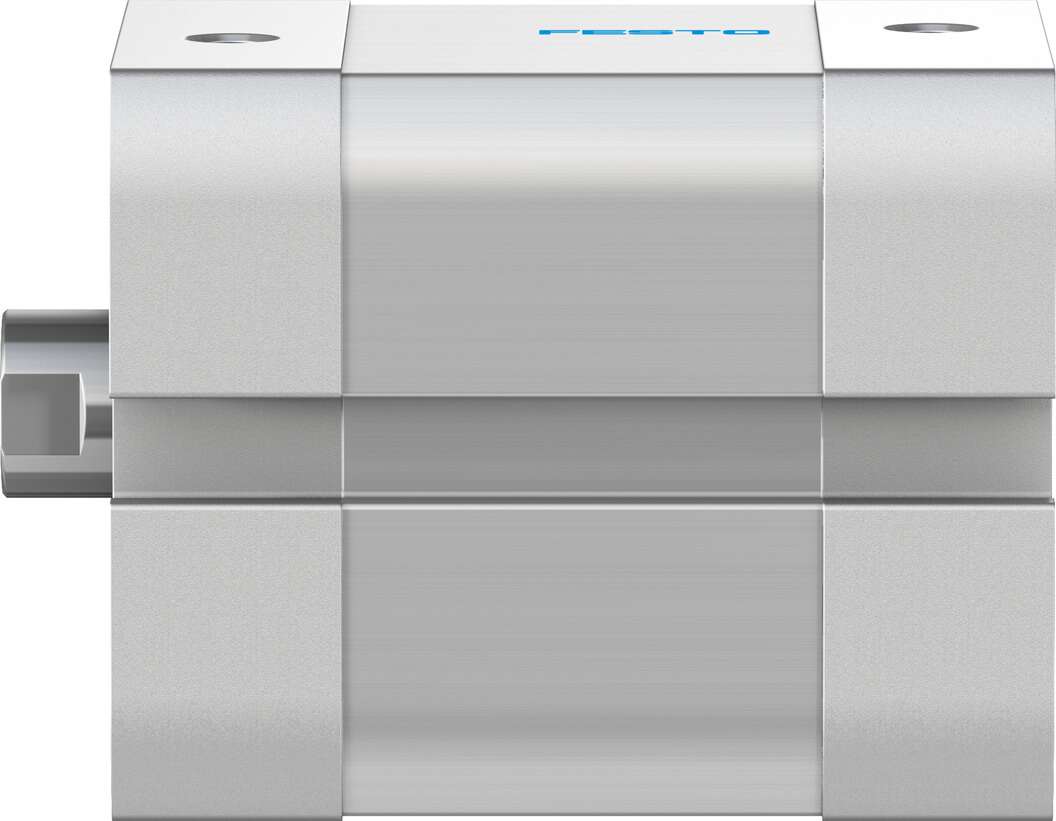

Festo Double Action Pneumatic Compact Cylinder 25mm Bore, 10mm stroke

Enrgtech Part No: ET14037140
|
Manufacturer Part No:
ADN-25-10-I-P-A
|
Manufacturer: Festo

ADN-25-10-I-P-A Festo Double Action Pneumatic Compact Cylinder 25mm Bore, 10mm stroke

Product Information

Port Connection:

ISO Standard:

21287

Cushioning Type:

Elastic

Dimensions:

39.5 x 39.5 x 54.5mm

VDMA Standard:

24364

Piston Rod Thread Gender:

Female

Model Number p:

536260

Stroke:

10mm

Pneumatic Connection:

Height:

39.5mm

Width:

39.5mm

Length:

54.5mm

Checking for live stock

The Festo ADN-25-10-I-P-A is a compact, double-acting pneumatic cylinder designed for applications with limited space. With a 25 mm bore and a short 10 mm stroke, it is commonly used in automation systems that require controlled linear movement without bulky hardware. This cylinder is typically installed in machines, assembly lines, and handling systems where compact design and reliable motion are more important than long travel distances.

Core Capabilities of the Festo 536260 Double-Action Pneumatic Cylinder

The compact body allows the cylinder to fit easily into confined spaces while still delivering stable performance. Its rigid construction helps maintain alignment during repeated operation, reducing wear on seals and internal components.

25 mm bore diameter.
10 mm stroke length.
Compact housing for space-saving designs.
Designed for a double-acting air supply.

Compact Pneumatic Cylinder for Tight Installations

It is often connected to solenoid valves and standard pneumatic fittings, making it easy to integrate into existing compressed air systems. The controlled motion helps improve repeatability in automated processes.

Typical Uses of the Product

This cylinder is typically used in:

Automated assembly equipment
Clamping and holding mechanisms
Pick-and-place units
Small presses and stops
Packaging and sorting machines

ADN-25-10-I-P-A Specification Sheet(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)

Festo ADN/AEN(Technical Reference)

Brochure - The Future of Standard Cylinders(Technical Reference)
