Name: ADN-20-30-I-P-A, Festo
Brand: Festo
SKU: ET14037139
Price: 47.31 GBP
Availability: InStock

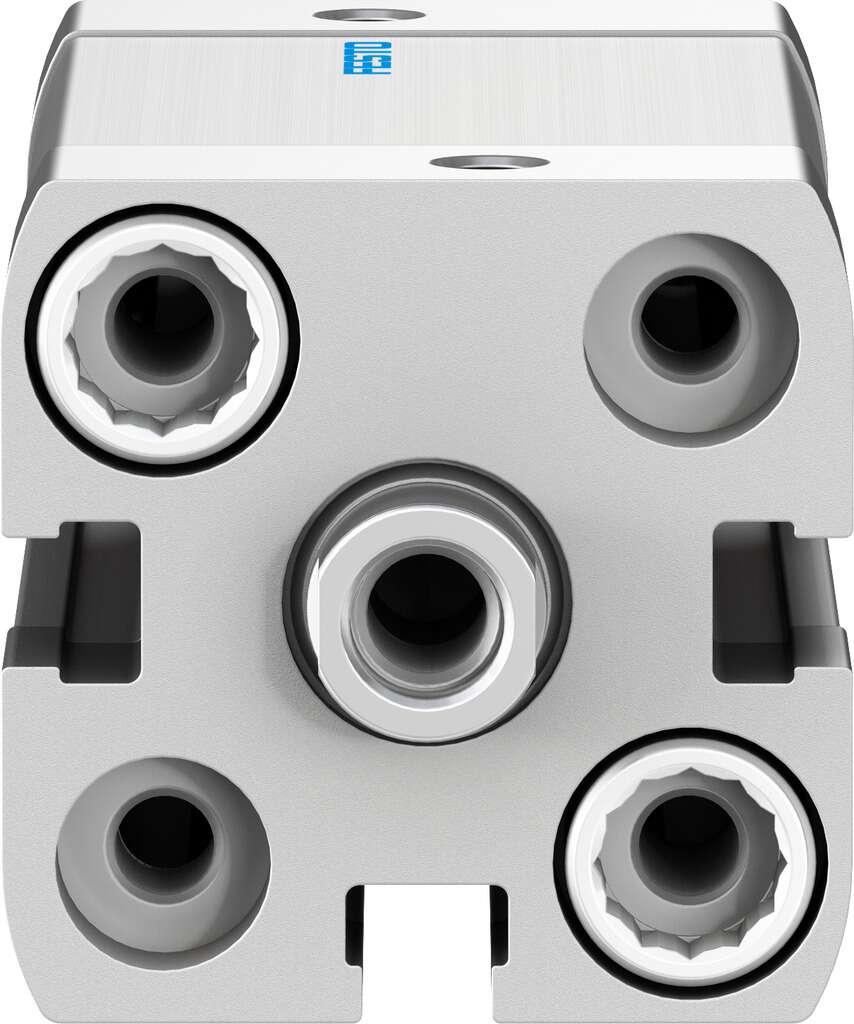

ADN-20-30-I-P-A Festo Double Action Pneumatic Compact Cylinder 20mm Bore, 30mm stroke

(0)

Product Information

Port Connection:

ISO Standard:

ISO 21287

Cushioning Type:

Flexible Cushioning

Dimensions:

35.5 x 35.5 x 72.5mm

VDMA Standard:

VDMA 24364-B1/B2-L

Piston Rod Thread Gender:

Female

Model Number p:

536247

Stroke:

30mm

Pneumatic Connection:

Height:

35.5mm

Width:

35.5mm

Length:

72.5mm

Checking for live stock

The Festo ADN-20-30-I-P-A is a double-acting pneumatic compact cylinder designed for applications where space is limited but reliable linear movement is required. With a 20 mm bore and a 30 mm stroke, it delivers controlled push-and-pull motion in automation systems without occupying unnecessary space. This cylinder is typically used in machine assemblies where compact design and repeatable motion matter more than high force or extended travel.

Crucial Features of the Festo 536247 Double-Action Pneumatic Cylinder

The ADN series features a square, compact body that fits easily into tight machine layouts. The short stroke length keeps movement precise and predictable, which is helpful in positioning, clamping, and light handling tasks.

20 mm bore size for controlled force output.
30 mm stroke for short, accurate movement.
Double-acting operation for push and pull control.
Solid construction helps maintain alignment.

Compact Pneumatic Cylinder for Tight Installations

This cylinder runs on compressed air and is designed for continuous industrial use. The double-acting design allows air pressure to move the piston in both directions, providing better control than spring-return types.

Versatility in Applications

It is chosen when designers need reliable motion but cannot afford bulky actuators.

Compact automation assemblies
Pick-and-place mechanisms
Light clamping or holding tasks
Packaging and assembly machines
Industrial equipment with limited mounting space

ADN-20-30-I-P-A Specification Sheet(Technical Reference)

Brochure - Core Product Range(Technical Reference)

Festo ADN/AEN(Technical Reference)

Festo Pneumatic Cylinders Operating Manual(Technical Reference)
